RG11 Coaxial Cable, Riser, Dual Shield, CATV, 14 AWG Solid CCS, CMR, 60% AL Braid Shielding/AL Foil, 1,000', Black

RG11 Riser CMR Coax Cable, 14 AWG CCS for CATV Surveillance System,

Our RG11 Coaxial Cable is frequently used for wiring satellite, digital CATV and HDTV television networking requiring a higher level of shielding for signal retention. The RG11 Coax Cable has a denser jacket and thicker conductor compared to the RG6, enabling it to transfer data at double the speed. We offer RG11 dual shield cable to maximize signal retention for even sharper, clearer digital pictures. Remember to add on one of our RG11 Connectors.

Applications

Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. Because of its durability and thicker copper conductor, RG11 coax cable is meant for long direct burial runs. This is an excellent solution for tv cable wire projects.

Product Quality

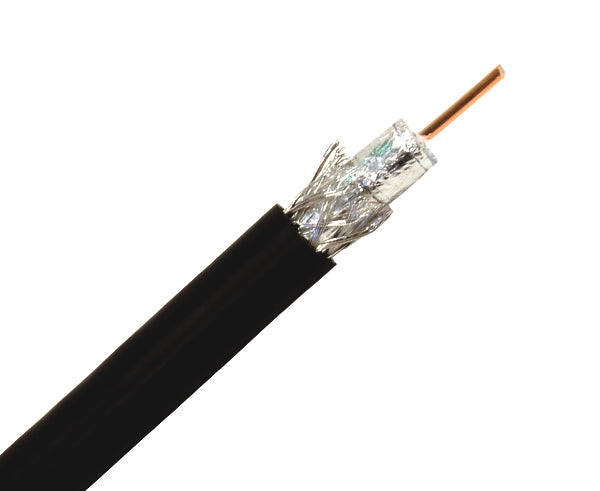

Our high-quality RG11 CATV Dual Shield Riser Coaxial Cable consists of a 14 AWG solid Copper Clad Steel (CCS) inner conductor that transmits the signal. It is wrapped in dielectric polyethylene insulation. This RG11 Coaxial Cable comes with a 60% aluminum wire braided shield and Bonded AL Foil. This is covered with a flame-rated PVC jacket (CMR). The RG11 maintains a better signal and works at a higher frequency than the RG6, but it is a thicker cable, making it less flexible.

Where to use Dual Shielded Riser Coaxial Cable

Our RG11 Riser Coaxial Cable is made for Cable Television (CATV), audio/video networking, digital HDTV applications, TV antennas, and digital satellite installations. The cable's jacket is designated CMR, CL2R for coaxial cable used for networking projects that run between floors in non-plenum areas. The RG11 Coaxial Cable tops out at 75 ohms and sweep-tested 3GHz.
