Description

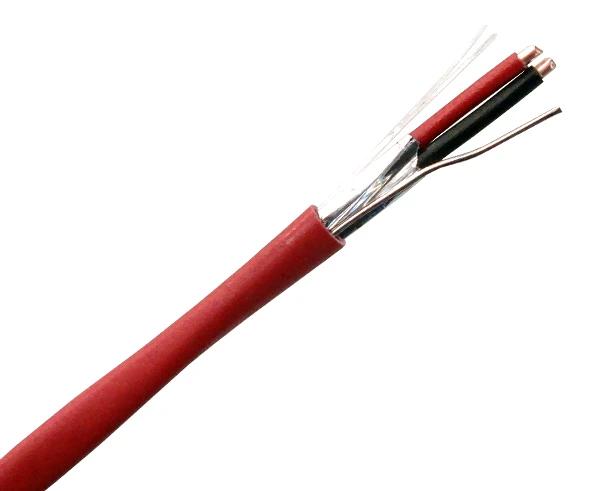

18/2 Shielded FPLP Alarm Cable for Your Fire Alarm Circuits
Our Shielded Plenum (FPLP) Fire Alarm Cable is meticulously engineered with two 18 gauge solid bare copper conductors, fortified with aluminum mylar shielding for superior protection against system noise. Its low-smoke PVC red jacket guarantees safety, complemented by a 24 gauge drain wire for enhanced reliability. Sequential footage markings on the jacket facilitate easy monitoring of the remaining cable length, simplifying the installation process.
Investing in top-tier fire alarm cables is paramount for safeguarding lives. As a reputable industry leader, we exclusively offer high-quality products. The critical role of fire alarm cables during emergencies cannot be overstated, as they enable the activation of sprinklers and smoke alarms for prompt evacuation. Choose a trusted source for your fire alarm cables to ensure utmost reliability when lives are at stake.
Fire Alarm Applications
There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, microprocessor-controlled systems, pull boxes (fire alarm signals), burglar alarms, and other low-voltage applications. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.
Fire Alarm Cable Products
We offer a variety of shielded and unshielded Plenum, Non-Plenum and Riser fire alarm cables FPLP and FPLR, ranging from 18 AWG to 12 AWG solid bare copper conductors. These fire cables are flexible for easy installation. With our commitment to quality and dependability, our cables are UL, ETL Listed and RoHS Compliant. Plenum-rated fire cables means it can be run in the area between floors that is used as duct area or other air space. Plenum refers to the material used in the jacket of the cable that burns less than non-plenum cables.
Why Plenum?
A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
FPLP Shielded Cable for Smoke Alarm and Detector
Features
Features
- Low smoke generating FT6 plenum rated PVC jacket
- Sequential footage markings on jacket
- Aluminum mylar shielding
- UL Listed
- ETL listed
- RoHS compliant
- Voltage rating: 300V
- 24 gauge drain wire
- Temperature rating: 75°C
- Made in USA
Applications:
- Fire alarm wiring
- Fire protection
- Signals
- Monitoring and detection systems
- Audio circuits
- Notifications circuits
- Control circuits
- Initiating circuits
Conductor Insulation Colors
- Black
- Red
Specifications
Specifications
Physical Construction | |
|---|---|
| Inner Conductor | Solid Bare Copper |
| Conductor Size | 18 AWG |
| Insulation | Low Smoke PVC (0.010 in.) |
| Nominal OD | 4.01 mm (0.158 in.) |
| Outer Jacket thickness | .457mm (0.018in.) |
| Jacket | Low Smoke PVC |
| Jacket Color | Red |
| Shielding | Aluminum with Mylar |
Electrical Characteristics | |
|---|---|
| Temperature | 75℃ |
| Voltage Rating | 300 V |
| Color Mode | Black Red |
Additional Information
Additional Information
To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.
To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.
What's in the Box
What's in the Box
- Fire Alarm Cable (FPLP) Plenum Shielded,18/2 AWG Solid Bare Copper Conductors, Red PVC Jacket
- Qty - (1) 1000 Ft
