Description

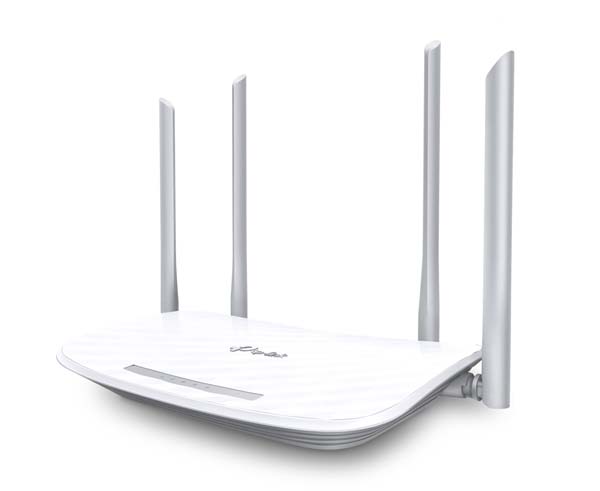

AC1200 Wireless Dual Band Router
High-Speed Dual Band WiFi for Better Connections
The Archer A54 lets your PC or laptop enjoy connections 3x faster than Wireless N with Wireless AC technology. With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the Archer A54 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
Easily Manage Your Network
Extensive device management capabilities allow you to freely adjust settings for every device connected to your router.
Bandwidth Control
Enables bandwidth management allowing you to allocate more data for gaming or streaming or limit connection speeds to keep people on task.
Guest Network
Provides secure access for guests to connect to your WiFi network. Easily share your network without compromising security.
Parental Controls
Allows the network administrator to restrict for children, limit access levels and connection time.
Access Control
Select what devices are allowed to connect to your network to keep it secure.
AP Mode
It’s an Access Point as well! Transform an existing wired network into a wireless one.
Features
Features
- Supports 802.11ac WiFi standard
- Simultaneous 2.4 GHz 300 Mbps and 5 GHz 867 Mbps connections for 1200 Mbps of total available bandwidth*
- 2 external antennas provide stable wireless connections and optimal coverage*
- Easy network management at your fingertips with the TP-Link Tether app
- Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Supports Access Point mode to create a new WiFi access point
Easy Setup and Use
Set up the Archer A54 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage your network settings from any Android or iOS device, including parental controls and access control.
Specifications
| WIRELESS FEATURES | ||
|---|---|---|
| Standards |
Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
|
| Wi-Fi Speeds |
AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
|
| Wi-Fi Range |
3 Bedroom Houses 4× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
|
| Wi-Fi Capacity |
Medium Dual-Band Allocate devices to different bands for optimal performance |
|
| Working Modes |
Router Mode Access Point Mode Range Extender Mode |
|
| Wi-Fi Encryption |
WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
|
| Network Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
|
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
|
| SOFTWARE |
||
|---|---|---|
| Protocols | IPv4, IPv6 | |
| Parental Controls | URL Filtering, Time Controls |
|
| WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
|
| Quality of Service | QoS by Device | |
| NAT Forwarding |
Port Forwarding Port Triggering DMZ UPnP |
|
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
|
| DHCP | Address Reservation DHCP Client List Server |
|
| DDNS | NO-IP DynDNS |
|
| Management | Tether App Webpage |
|
| GENERAL |
||
|---|---|---|
| Dimensions (W x D x H) | 9.1 x 5.7 x 1.5 in (229.9 x 144.2 x 36.9 mm) | |
| Certification | FCC, CE, RoHS | |
| Package Contents |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
|
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Installation Information
Quick Tips - How to Share Your WiFi
How to turn a router into an Access Point?
How to set up Port Forwarding on a TP-Link router
How to set Parental Controls on a TP-Link router
How to change the Wi-Fi settings on TP-Link router
What should I do if I cannot access the internet? - Using a cable modem and a TP-Link router
What's in the Box
- (1) - Wireless Router
- (1) - Power Adapter
- (1) - Ethernet Cable
- (1) - Quick Installation Guide
