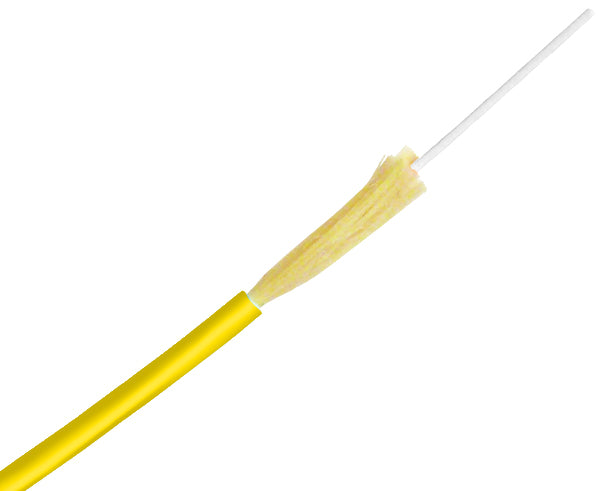

Simplex Fiber Optic Cable, Single Mode, OS2 9/125, Corning Fiber, Indoor, Plenum OFNP

• 3 mm, 2 mm, 1.8 mm & 1.6 mm OD sizes to meet all patch cord applications.
• Consistent 3.5lbs - 5lbs pull force for easy strip-ability.

Applications

• Patch cord production.
• Data centers.
• Indoor point to point connections.

Temperature Range

• Storage Temperature: -40ºC to +70ºC
• Operating Temperature: -20ºC to +70ºC

Cable Characteristics

• Fiber Count: 1
• Outer Jacket Material: Flame Retardant PVC
• Outer Jacket Color: Yellow
• Strength Member: Aramid Yarn
• Tight Buffer Material: Flame Retardant PVC
• Tight Buffer Color: White

Mechanical Characteristics

• Nominal Outer Diameter
• 3 mm
• 2 mm
• 1.80 mm
• 1.60 mm
• Minimum Bend Radius (Bend Insensitive SM): 5 mm / 10 mm
• Minimum Bend Radius (SM) 1 turn/100 turns: 32mm / 50 mm

Optical Characteristics

• Core Size: 9 um
• Wavelength: (1310/1550) nm
• Max. Attenuation: (0.5/0.4) dB/km
• Bandwidth (EMB) (High Performance): N/A
• Link Length (10GB/s): N/A

Single mode fiber cable (Synonyms mono-mode optical fiber, single-mode fiber, single-mode optical waveguide, uni-mode fiber) is a single strand of glass fiber with a diameter of 8.3 to 10 microns that has one mode of transmission. Single mode fiber has a relatively narrow diameter, through which only one mode will propagate typically 1310 or 1550nm wavelengths. Single mode fibers carry higher bandwidth than multimode fiber, but require a light source with a narrow spectral width. Single-mode fiber gives you a higher transmission rate and up to 50 times more distance than multimode. The small core and single light-wave virtually eliminate any distortion that could result from overlapping light pulses, providing the least signal attenuation and the highest transmission speeds of any fiber cable type.
