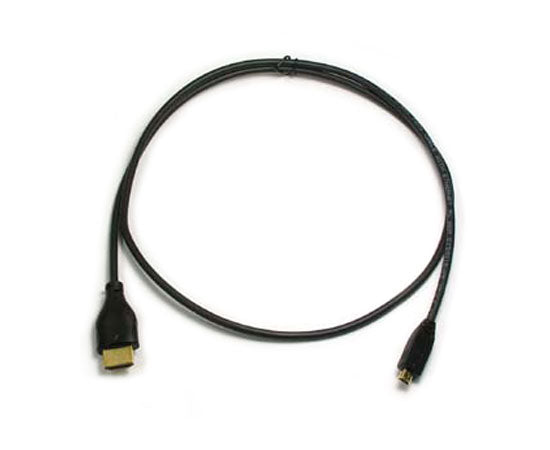

HDMI 1.4 Cable, Male to Micro(D)-Male Thin Cable High Speed w/Ethernet, 34AWG, 1FT, 6FT, 4K x 2K at 30Hz
Description
HDMI 1.4 Cable, Male to Micro(D)-Male Thin Cable High Speed w/Ethernet, 34AWG, 1FT, 6FT, 4K x 2K at 30Hz
This ultra thin HDMI cable is only 0.15" (3.8mm) in diameter. Almost 50% thinner than our regular HDMI cable (7.3mm). It is fully compliant with High speed HDMI 1.4 with Ethernet, and delivers 4K x 2K at 30Hz picture and sound from cable boxes, Blu-ray players, game consoles, DVRs, and more to your HDTV or PC display. And because the cable is only 0.15" diameter, ultra thin HDMI cable runs under carpet or along walls unobtrusively. Better still, the ultra thin HDMI cable enables it to bend at near right angles so you can easily make connections in tight spaces or put in a small handy camcorder case. All our HDMI cables and devices are purchased from manufacturers that are CERTIFIED by HDMI.org. Thin, flexible, and ideal for compact devices and clutter-free home theater installations.
| Jacket Type | In-Wall Installation | Flame Resistant | Wattage Rated | Ventilation Installation |
| Regular | N/A | N/A | N/A | N/A |
| CL2 | Yes | Yes | 150 Watts | N/A |
| CL3 | Yes | Yes | 300 Watts | N/A |
Features
Features
- HDMI 1.4: High speed HDMI with Ethernet
- Gauge Size is 34 AWG
- 3D support
- Supports 4k x 2k at 30Hz, 1080p at 60Hz and below
- Audio Return Channel
- Expanded color space
- Gold-plated plugs for stability, reliability, and longevity
- Shielded Jacket to reduce EMI
- RoHS compliant
- UL cUL (Canada) listed
Specifications
Specifications
| HDMI Version | v1.4 and backward compatible to all previous versions |
| Cable Gage | 34 AWG Stranded Copper |
| OD | ø3.8 ± 0.2mm |
| Jacket Material | Black PVC |
| Lengths | 1ft, 6ft |
| Connector Material | Gold-Plated Copper |
| Connector Type | Standard Male Type A to Micro Male Type D, 19 pin connector |
| Connector Depth | 9.2 ± 0.3mm |
| Conductor Material | Bare Copper |
| Contact Resistance | 3 OMH Max |
| Shielding Material | Aluminum Mylar |
| Insulation Resistance | 10M OMH Min |
| DC-Resistance | DC 300V/10ms |
| Refresh Rates | 120Hz, 240Hz & 360Hz |
Additional Information
Additional Information
To learn more about our HDMI Cables here is a link to a page containing more information on our premium HDMI Cables.
| HDMI Type | Max Resolution | Transmission Rate | HDR | Audio Support |
| 1.4 | 4K x 2K at 30Hz | 10.2 Gb/s | No |
ARC, Dolby TrueHD, DTS-HD |
| 2.0 | 4K at 60Hz | 18 Gb/s |
Yes |
HE-AAC, DRA, 32 audio channels |
| 2.1 | 8K at 30Hz |
48 Gb/s |
Yes |
eARC |
What’s In The Box
What’s In The Box
- Qty 1 - HDMI A-M to Micro(D)-M Thin Cable High Speed w/Ethernet
