Description

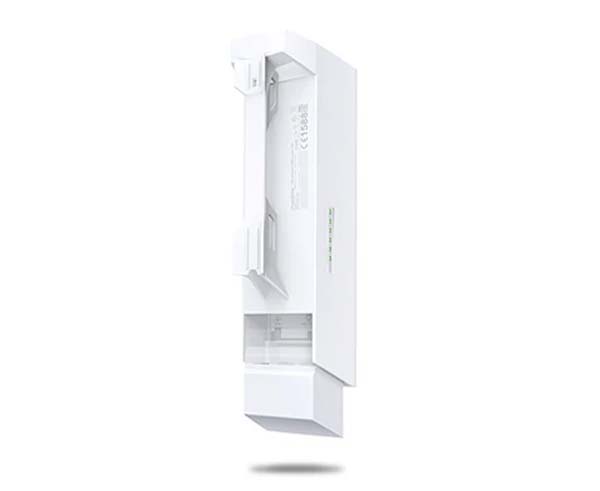

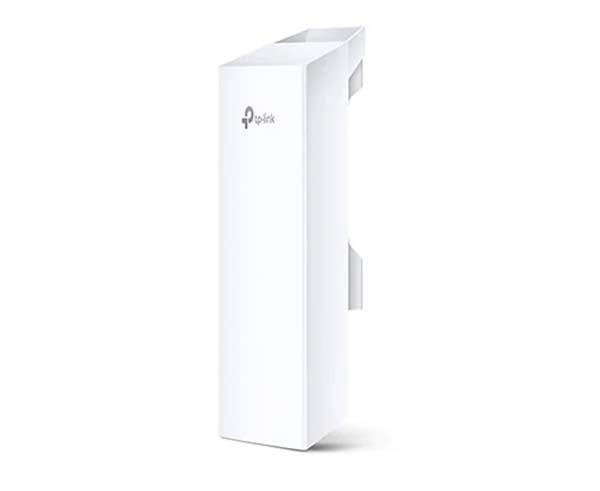

2.4GHz 300Mbps 9dBi Outdoor CPE, PoE
The CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna dedicated metal reflector ensures higher gain and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
2.4GHz 300Mbps 9dBi Outdoor CPE210
- Built-in 9dBi Dual-polarized Directional Antenna
- 6KV Lightning Protection
- 15KV ESD Protection
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Weather Proof Enclosure
- Passive PoE Adapter
Features
Features
- Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Specifications
Specifications
| HARDWARE FEATURES |
||
|---|---|---|
| Processor | Qualcomm Atheros 560Mhz CPU, MIPS 74Kc | |
| Memory | 64MB DDR2 RAM, 8MB Flash |
|
| Interface |
1 10/100 Mbps Shielded Ethernet Port (Passive PoE in) 1 Grounding Terminal 1 Reset Button |
|
| Power Supply |
Passive Power over Ethernet via LAN0 (+ 4,5pins; - 7-8pins) Voltage Range: 16-27 VDC |
|
| Power Consumption |
10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable |
|
| Dimensions (W x D x H) | 8.8 x 3.1 x 2.4 in (223.5 x 78.7 x 60.9mm) | |
| Antenna Type |
Built-in 9dBi 2x2 Dual-polarized Directional Antenna Beam Width: 65° (H-Plane) / 35° (E-Plane) |
|
| Protection | 15KV ESD Protection | |
| Enclosure |
Outdoor ASA stabilized plastic material IPX5 waterproof certification |
|
| WIRELESS FEATURES | ||
|---|---|---|
| Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) | |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
|
| Wireless Speeds |
Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
|
| Frequency | 2.4~2.483GHz | |
| Transmission Power |
27dBm/500mw (1dBm step adjustable) |
|
| POE ADAPTER FEATURES | ||
|---|---|---|
| DImensions (W x D x H) | 4.3 x 2.2 x 1.3 in (109.2 x 55.8 x 33.0mm) | |
| Interfaces |
1 AC Jack with Earth Ground 1 10/100 Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) |
|
| Button | Remote Reset Button |
|
| Power Status LEDs | Green | |
| Input | 100-240VAC, 50/60Hz | |
| Output |
24VDC,0.6A Max +4, 5 pins; -7, 8 pins (Support up to 60m PoE) |
|
| Efficiency | >80% | |
| GENERAL | ||
|---|---|---|
| Certification | FCC, RoHS, IPX5 |
|
| Package Contents |
Outdoor Wireless CPE 24VDC Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
|
| Environment |
Operating Temperature: -40℃~70 (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
|
Installation Information
How to Log into the CPE Management Page
What’s In The Box
What’s In The Box
- (1) - Outdoor Wireless CPE
- (1) - 24VDC Passive PoE Adapter
- (1) - Pole Mounting Straps
- (1) - AC Power Cord
- (1) - Quick Installation Guide
