CAT6A Bulk Ethernet Cable, UL Listed CMR Shielded Solid Copper Conductors, 23AWG 1000FT

$289.90
SKU: C6AS-2237RB
Color: Blue

RohHS Compliant ETL_Listed ISO 9001

Description

CAT6A Riser Shielded Bulk Cable

Our UL Listed CMR Rated CAT6A Shielded Cable is ideal for your shielded indoor voice, data, video, and security networking applications. Whether you are wiring your home, office, or entire campus, we have the network solution that is right for you.

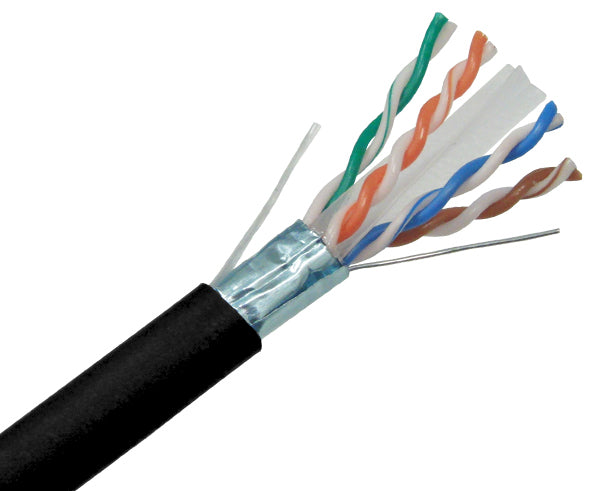

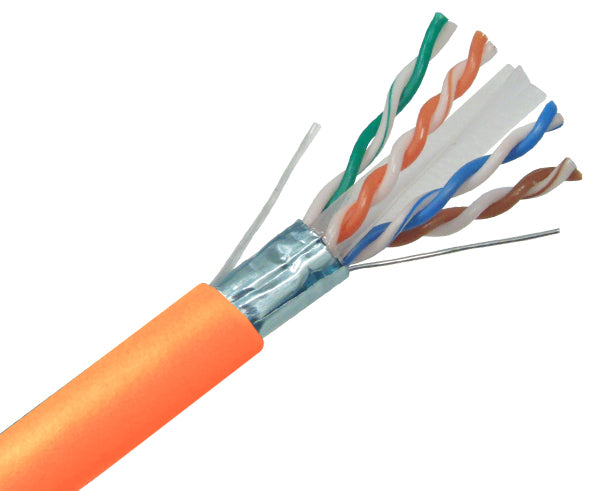

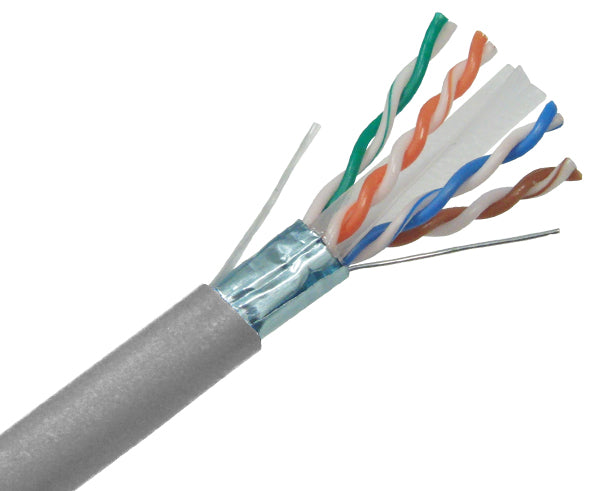

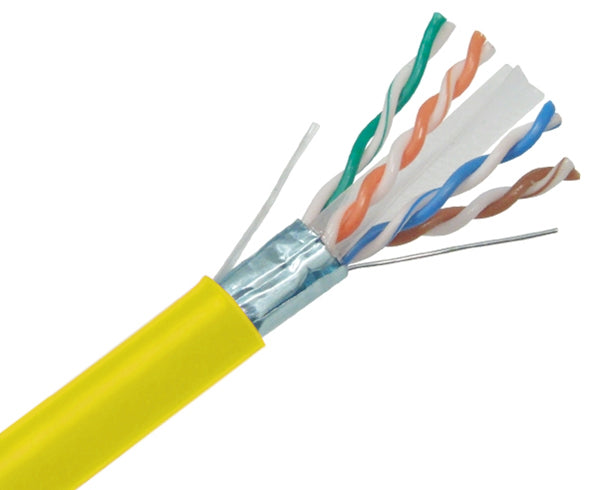

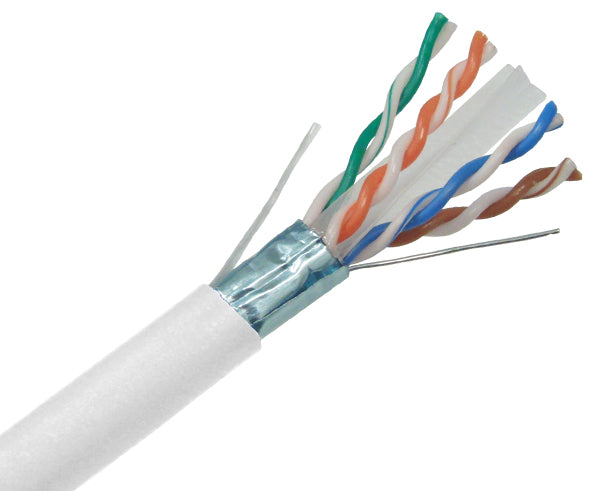

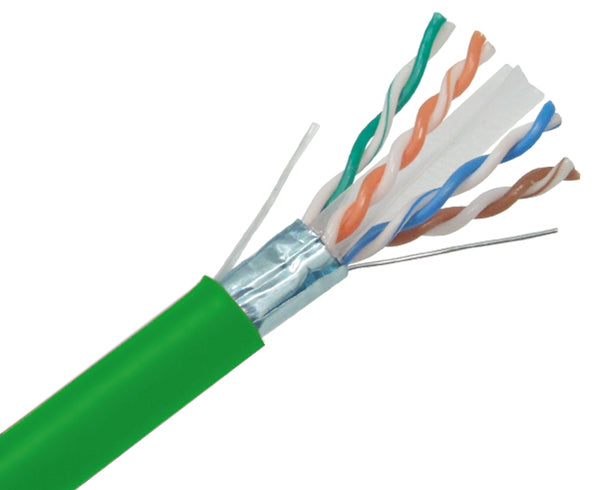

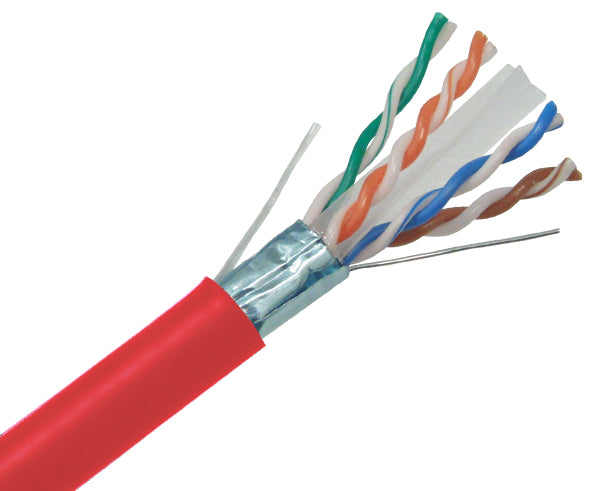

This CAT6A Shielded Cable is the perfect fit for reliable installations where the cable will be used indoors. This cable's 8 conductors (4-pairs) are solid bare copper with high-density polyethylene (HDPE) insulation, overall foil shielded (FTP), and RoHS Compliant. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cables to prevent signal loss, cross-talk, and other performance issues. This Category 6A Cable is designed for indoor LAN applications, making it the best solution for indoor installation runs that require the cable to be installed in walls or any other non-plenum areas.

To make sure we are supplying our customers with high-quality bulk Ethernet cables our cables have to meet and/or exceed CAT6A ANSI/TIA-568.2-D standards. Our CAT6A cable is also manufactured to meet the highest current standards in quality.

Why Shielded Cable?

The foil shielding protects the signal from outside EMIs and also keeps the signal from emitting its own EMI. For example, a hospital has many electronic devices that emit Electro Magnetic Interference so you would want to use a shielded cable to prevent EMI from both entering and exiting your cable.

Technical Diagram

CAT6A Riser Shielded Cable Diagram

CAT6A Bulk Cable Options



CAT7 & Cat7A Bulk Cable Options

Solid Copper
CAT7
Solid Copper
CAT7A
Indoor
S/FTP
Indoor/Outdoor
S/FTP
Indoor/Outdoor
S/FTP
Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

Features

  • High-Performance Data Communications Cable for Noisy Environments
  • Tested for speeds up to 750MHz
  • Suitable for High-Speed Data Applications, 10Gigabit Ethernet up to 100 meters, Fast Ethernet, and 155Mbps TP-PMD/CDDI
  • Category 6A Foil Shielded Twisted Pair (F/UTP) Cable
  • 4-Pairs, Easily Identified Color-Striped Pairs
  • 23 AWG Solid Bare Copper Conductors
  • Excellent Attenuation and Crosstalk Characteristics
  • Sequential Foot Markers on Jacket
  • Exceeds ANSI/TIA-568.2-D, CSA, and ISO/IEC 11801 Specifications

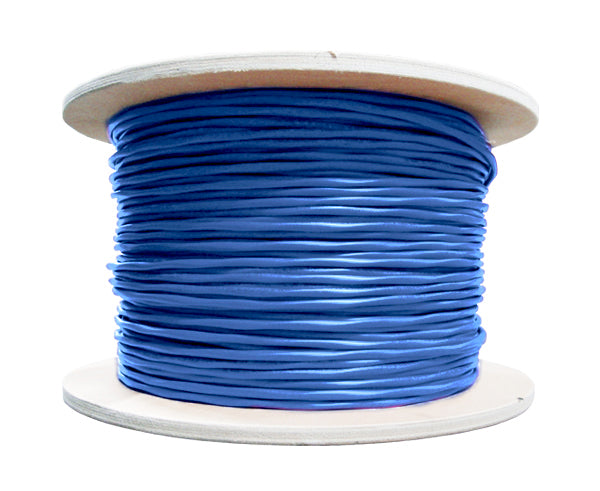

  • Supplied on 1000' Spools
  • Category 6A Augmented Cable
  • Designed for Indoor General Purpose Installations
  • RoHS Compliant
  • CMR Rated
  • UL Listed

Specifications

Specifications



Additional Information

Additional Information

Solid Wire: Also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.

CMR: The 'R' in CMR is for 'Riser'. Riser-type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

To learn more about our CAT6A CM Rated Ethernet Cable please visit our product overview page.

Our CAT6A Indoor Shielded Ethernet Cable is compatible with our:

What’s In The Box

What’s In The Box

  • 1000ft of UL Listed CMR CAT 6A 10G Shielded F/UTP Ethernet Cable with 4 Pairs of 23 AWG Solid Copper Conductors.
