Plastic Wire and Cable Bushings

$0.55
SKU: WB875
Size
Various lead times may apply to this product. Please contact us for more details.
Made in USA

Description

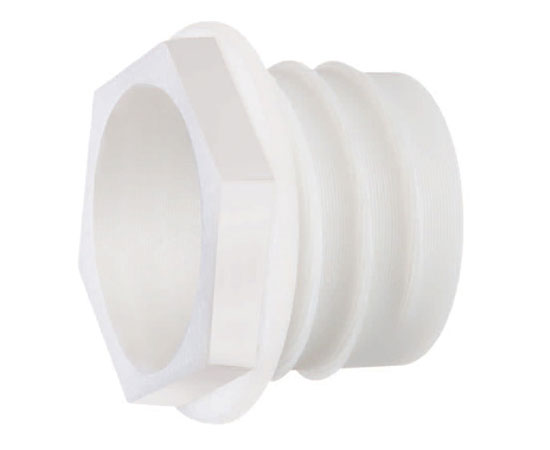

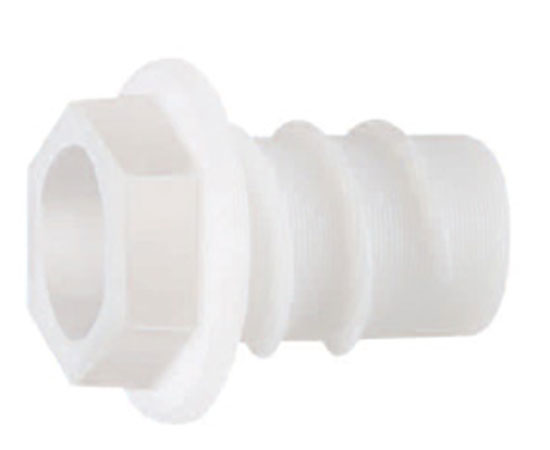

Plastic Wire and Cable Bushing for class 2 wire

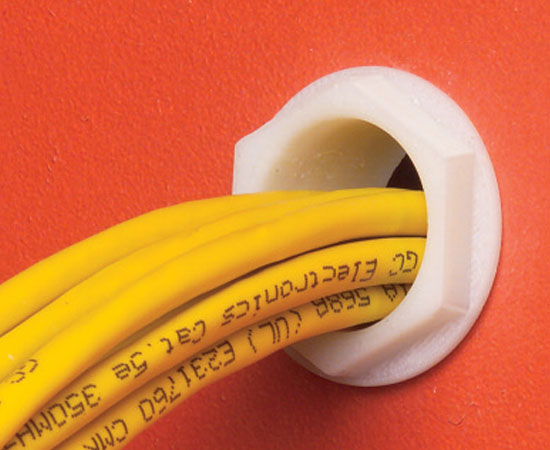

Our plastic wire and cable bushings for class 2 wire provide an easy to use, smooth insertion of the cable through drywall. This product is used to protect both wires and the surfaces they pass through.

Product Quality

When running low voltage data or speaker cable through a wall, there are many things that can go wrong. Not only do you want a clean aesthetically pleasing look, but you also want to protect the cabling from abrasive drywall edges, and the drywall from splitting. These Arlington Industries plastic wire bushings solve all of these concerns at once.

Features

Features

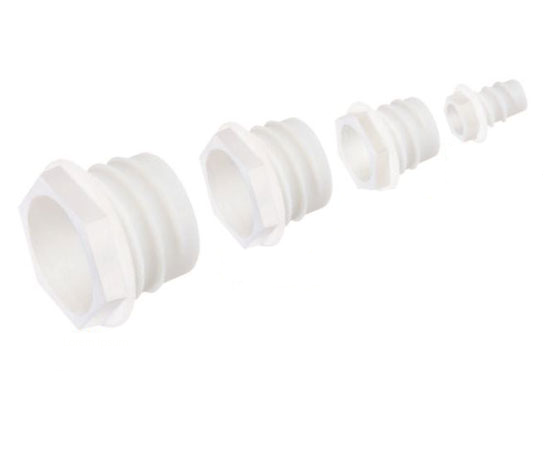

  • Available in 4 common sizes that can be easily drilled with a drill or hole saw
  • Clean white finish compliments most applications but can be painted to match your walls or trimming

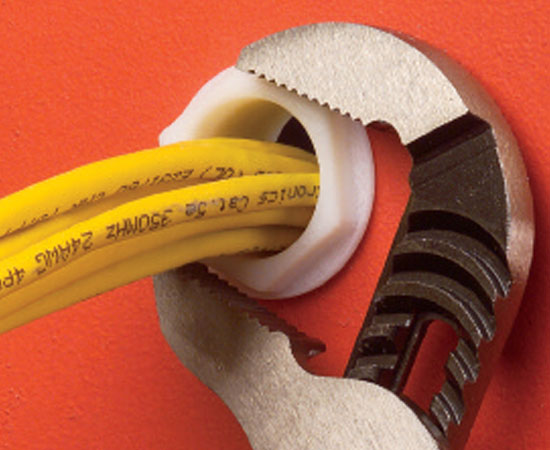

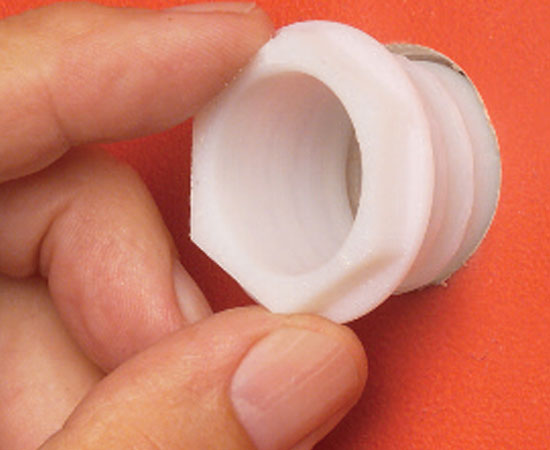

  • Simple DIY installation can be achieved using a set of pliers to twist and secure the grommet in place
  • Provides a great-looking job and easy, smooth insertion of a cable through a wall

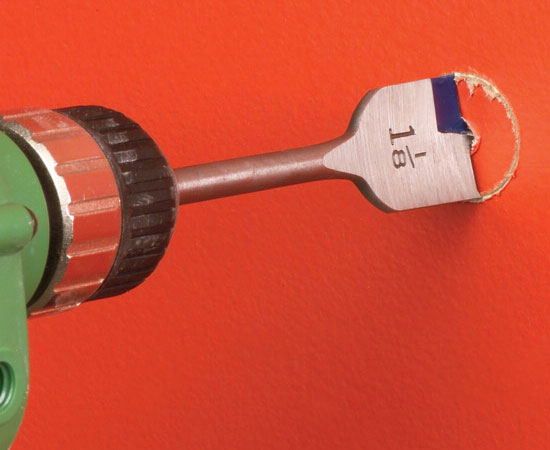

  • Quick installation with a drill bit or a hole saw
  • Easy entry and exit of low voltage cable or speaker wire through a wall
  • An attractive way to finish cut edges

Specifications

Specifications

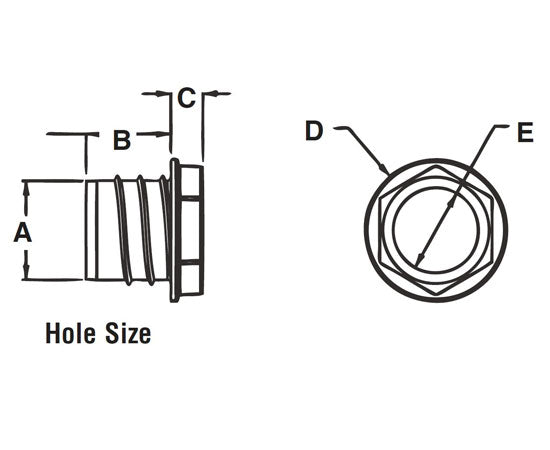

Item Number DIM A DIM B DIM C DIM D DIM E
NPNB-WB500 .500 .750 .281 .875 .400
NPNB-WB875 .875 .750 .281 1.250 .750
NPNB-WB112 1.125 .750 .281 1.500 1.000
NPNB-WB200 2.000 .750 .281 2.500 1.875
Item DIM A DIM B DIM C
WB500 7.5
3.5
5.25
WB875 16
10.25
13.25
WB112 16
10.25
13.25
WB200 8.5
6.625
6.5

What’s In The Box

What’s In The Box

  • Qty 1 - Plastic Wire Bushings for Class 2 Wire - White
