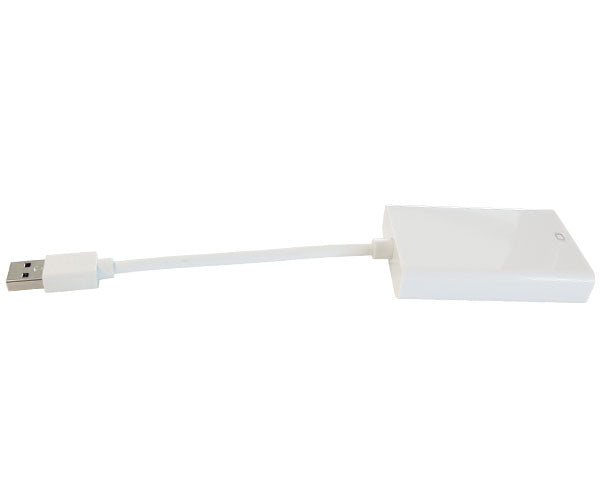

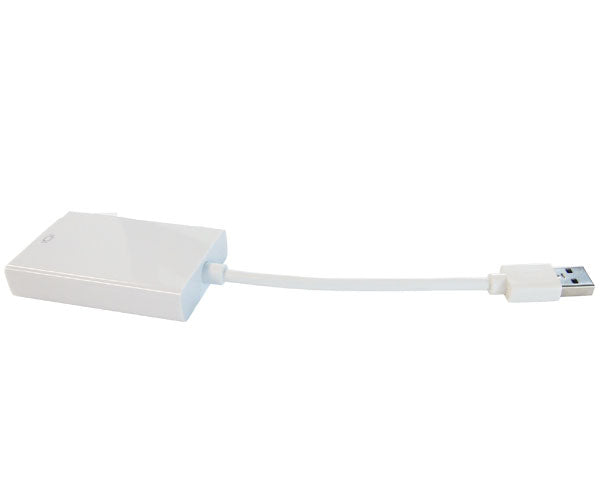

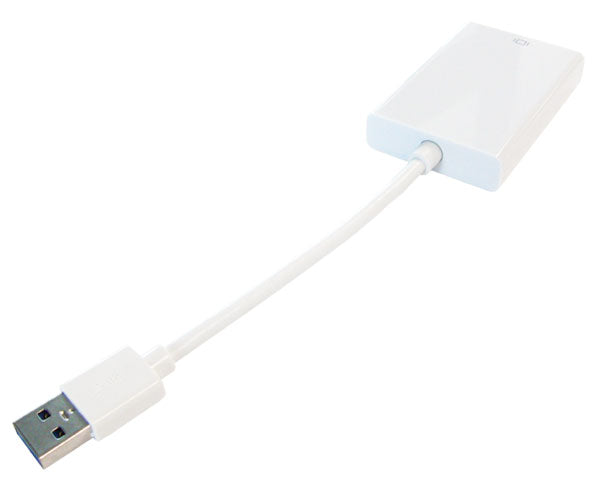

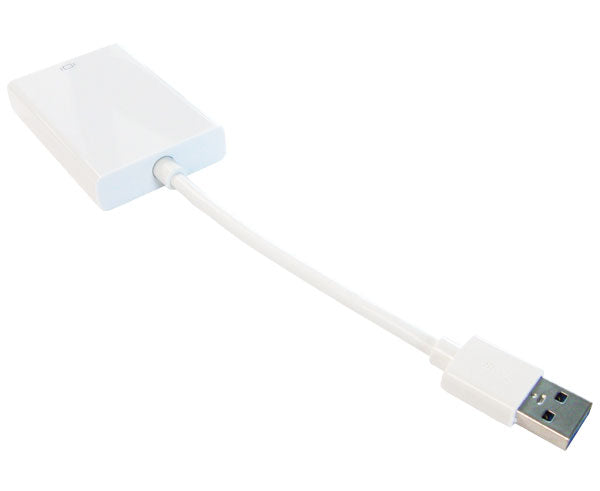

This USB 3.0 to HDMI Converter provides high throughput using the USB 3.0 bus and supports high definition monitors with high resolution and high refresh rates. It is ten times faster than USB 2.0 and greatly improves the stability of transportation. The USB 3.0 Converter allows you to connect your desktop PC or laptop's USB port to an extra monitor or TV. This converter allows you to watch videos or slideshows on the big screen. It is also backwards compatible, enabling it to work with USB 2.0 and lower.

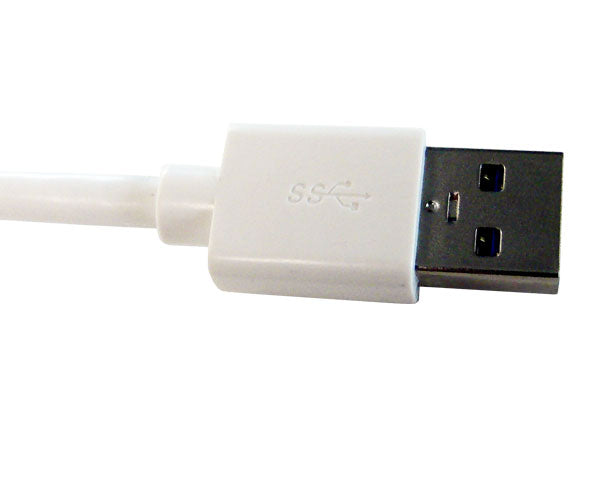

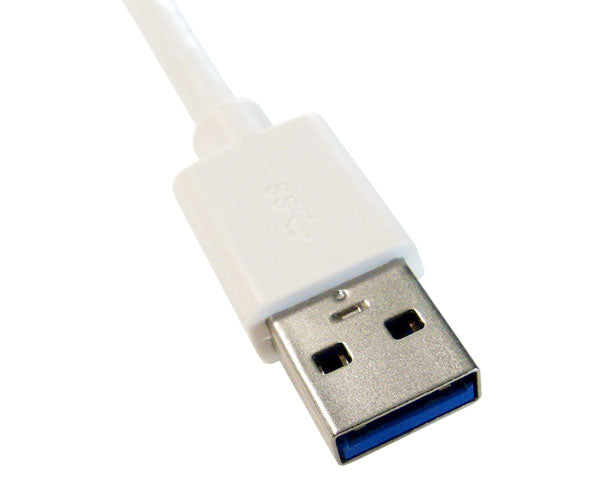

Signal Input Port | USB 3.0 A Male x 1 |

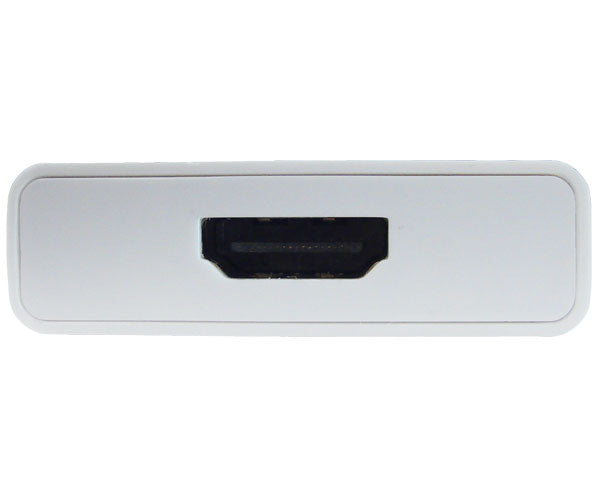

Signal Output Port | HDMI Female x 1 |
Video Amplifier Bandwidth | Max to 1.65Gbps/165MHz |
Operating Temperature | 0°C to + 7°C |
Operating Humidity | 10% to 85% RH (no condensation) |
Storage Temperature | -10°C to + 8°C |
Storage Humidity | 5% to 90% RH (no condensation) |
External Power Supply | No |
Power consumption (Max) | 1.27 Watts |
1. Connection:
2. Driver Installation:
Before attempting to use this unit please check the packaging and make sure the following items are contained in the shipping carton.
