Description

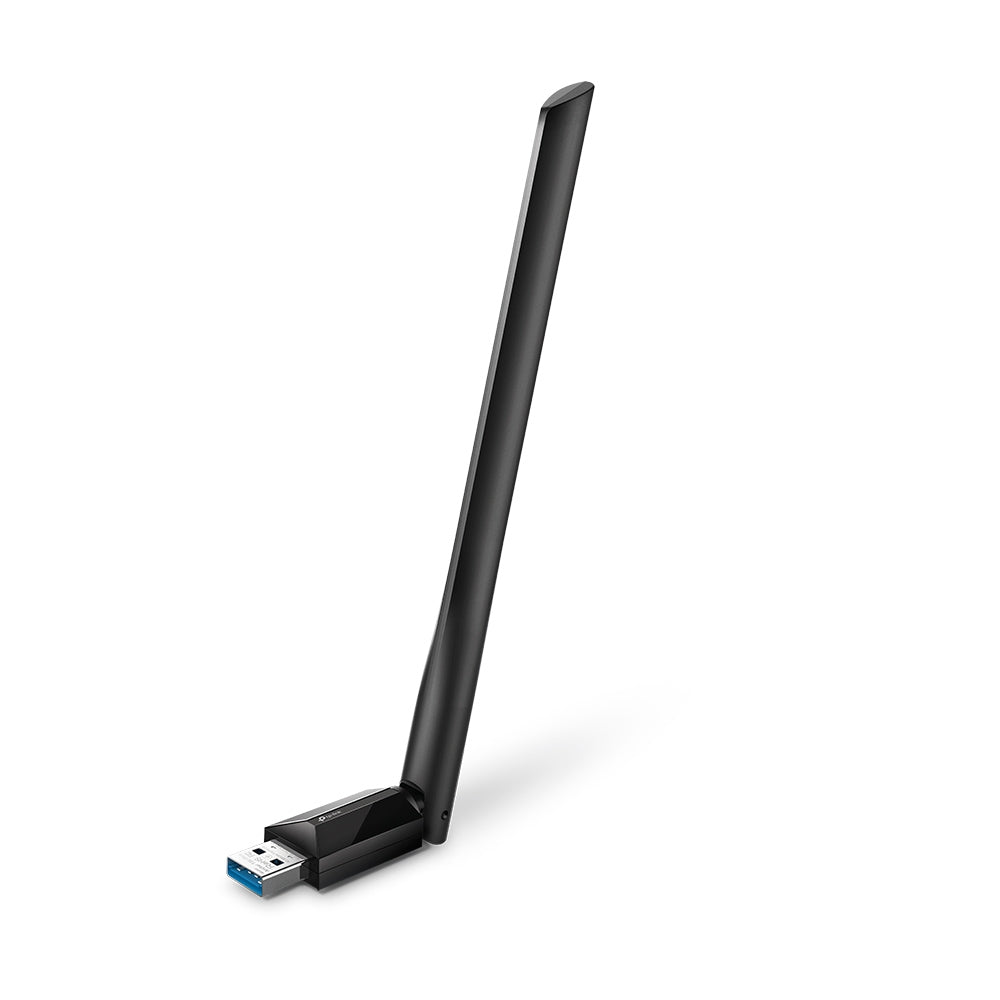

AC1300 High Gain Wireless Dual Band USB Adapter
The Archer T3U Plus receives Wi-Fi signals on two separate bands for all your online needs. Choose the 2.4 GHz band for up to 400 Mbps of surfing, emailing, and social media, or switch to 5 GHz for up to 867 Mbps of gaming, HD streaming, and large file downloads.
Small Body, Big Energy Two Antennas Built in one
With two high-gain antennas built in one, Archer T3U Plus boosts your signal reception and data transmission much significantly than traditional single-antenna Wi-Fi adapter. It means greater Wi-Fi coverage and more stable Wi-Fi connection without Wi-Fi drops and lag, even from father away or across multiple walls.
Boosted Throughput with MU-MIMO
MU-MIMO technology provides two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.
Adjustable, Multi-Directional Antenna
Rotate and adjust the multi-directional antenna to improve user experience and performance in different environments.
Features
- AC1300 Lightning-Fast Speed — AC1300 (867 Mbps on the 5 GHz band or 400 Mbps on the 2.4 GHz band) dual-band Wi-Fi to ensure all your devices run at full speed
- MU-MIMO Technology — Improves the throughput and efficiency of the whole network with MU-MIMO technology
- Dual-Band Wireless — The 2.4 GHz and 5 GHz bands provide flexible connectivity, giving your devices access to the latest dual-band Wi-Fi router for faster speed and extended range
- High-Gain Antennas — Advanced external high-gain antennas greatly enhance the reception and transmission signal strength of the USB adapter
- Supports the Latest Operating Systems — Fully compatible with Windows 11/10/8.1/8/7/XP and macOS
Specifications
| HARDWARE FEATURES | ||
|---|---|---|
| Interface | USB 3.0 | |
| LED | Status |
|
| Dimensions ( W x D x H) | 2.28 x 0.71 x 6.83 in (57.8 x 18 x 173.4 mm) | |
| Antenna | 1 External High Gain Antenna | |
| WIRELESS FEATURES |
||
|---|---|---|
| Wireless Standards | IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz | |
| Signal Rate |
5 GHz: 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
|
| Reception Sensitivity |
5 GHz: 11ac VHT80: -62dBm 11ac VHT40: -64dBm 11ac VHT20: -68dBm 11n HT40: -71dBm 11n HT20: -73dBm 11a 54Mbps: -77dBm 2.4 GHz: 11n HT40: -70dBm 11n HT20: -71dBm 11g 54Mbps: -73dBm 11b 11Mbps: -87dBm |
|
| Transmit Power |
5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP) 2.4 GHz : 18dBm(FCC) / 18dBm(CE) (EIRP) |
|
| Wireless Modes | Infrastructure Mode |
|
| Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| GENERAL |
||
|---|---|---|
| Certification | CE, FCC, RoHS |
|
|
Package Contents |
AC1300 High Gain Wireless Dual Band USB Adapter Quick Installation Guide Resource CD |
|
| System Requirements | Windows 11/10/8.1/8/7 (32/64 bit) | |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Installation Information
How to install a TP-Link USB network Adapter (2019)
What's in the box?
- Qty 1 - AC1300 High Gain Wireless Dual Band USB Adapter Archer T3U Plus
- Qty 1 - Installation Guide
- Qty 1 - Resource CD
