Description

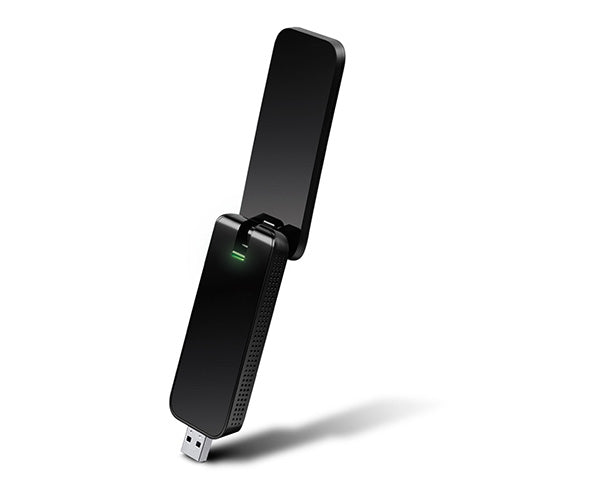

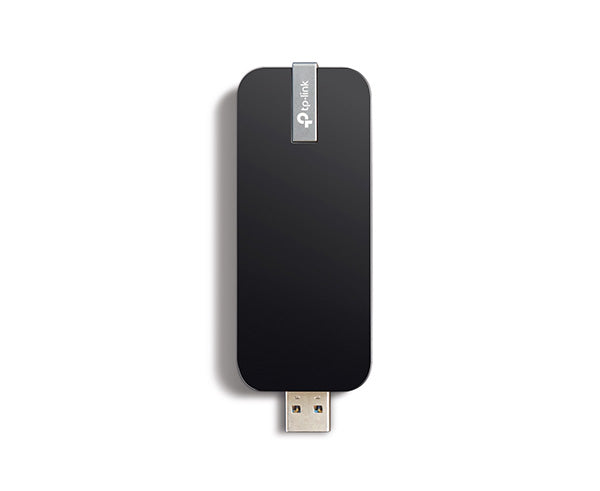

AC1300 Wireless Dual Band USB Adapter
The Archer T4U adapter receives Wi-Fi signals on two separate bands for all your online needs. Choose the 2.4GHz band for up to 400Mbps of surfing, e-mailing, and social media, or switch to 5GHz for up to 867Mbps of gaming, HD streaming, and large file downloads. Even when your desktop or laptop is far away, beamforming concentrates the Wi-Fi signal towards your router to create stronger overall connections. With two high-gain antennas, Archer T4U greatly extends Wi-Fi range and coverage compared to a typical wireless adapter. Thanks to MU-MIMO technology, this USB adapter can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router. Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0, the latest USB connectivity standard. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T4U great for HD streaming, online gaming, and large file downloads.
Dual Band Wi-Fi for Faster Connections
Wireless AC technology means Archer T4U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed Wi-Fi (up to 867Mbps over the 5GHz band and 400Mbps over the 2.4GHz band) means Archer T4U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.
High Gain Antennas for a Targeted Signal
With two high gain antennas, Archer T4U greatly extends Wi-Fi range and coverage compared to typical wireless adapter. A stable Wi-Fi network across your home makes for an ideal surfing experience.
Boosted Throughput with MU-MIMO
Thanks to MU-MIMO technology, Archer T4U can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T4U ideal for HD streaming, online gaming and large file downloads.
Features
- Ultra-fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard*
- Dual Band Wireless - 2.4GHz and 5GHz bands for flexible connectivity
- High gain antennas – Improved range, signal quality and transmission performance
- MU-MIMO –Delivers highly efficient wireless connection**
- Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0***
- WPS Button - Easy wireless security encryption at the push of the WPS button
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | USB 3.0 |
| Button | WPS button |
| Dimensions ( W x D x H ) | 3.64×1.24×0.55 in. (92.47×31.55×13.9mm) |
| Antenna | 2 High Gain External Antennas |
| Antenna Type | Omni Directional |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g,IEEE 802.11b |
| Frequency | 5GHz 2.4GHz |
| Signal Rate | 5GHz 11ac: Up to 867Mbps(dynamic) 11n: Up to 300Mbps(dynamic) 11a: Up to 54Mbps(dynamic） 2.4GHz 11n: Up to 400Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Transmit Power | >20dBm (EIRP) |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK |
| Modulation Technology | DBPSK, DQPSK, CCK, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
|---|---|
| Certification | >CE, FCC, RoHS |

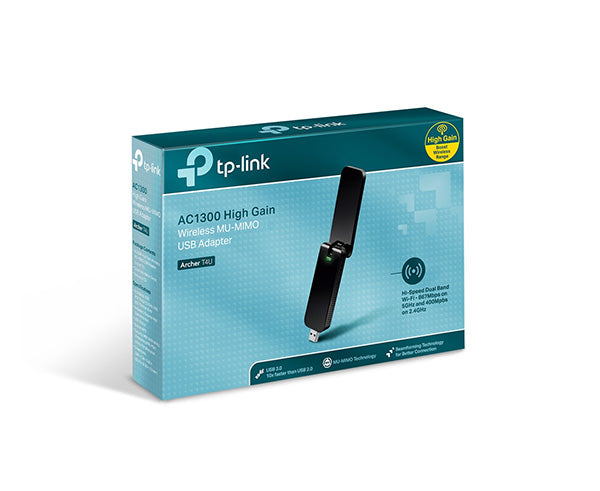

| Package Contents | >AC1300 High Gain Wireless MU-MIMO USB Adapter Archer T4U Quick Installation Guide Resource CD |
| System Requirements | >Windows 11/10/8.1/8/7/XP, Mac OS X 10.9-10.13 |
| Environment | >Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
