BX 900 UM Tight Buffer (CMP) Black Jacket Indoor/Outdoor

Breakout Single Mode Plenum Fiber Optic Cable, Indoor/Outdoor

Name: Breakout Single Mode Plenum Fiber Optic Cable, Indoor/Outdoor
Brand: OCC
SKU: BX002KSLX9YP
Availability: InStock

by OCC

Call for Pricing

SKU: BX002KSLX9YP

Strand Count

2 Strand

4 Strand

6 Strand

8 Strand

12 Strand

18 Strand

24 Strand

36 Strand

48 Strand

Quantity

Time Stamp

If you’re looking to purchase more than one spool then each spool needs to be entered into the cart as a separate line item. Input the length and then select Add to Cart for every individual spool needed.
This product has a minimum $50 associated cut fee applied to the shipping cost

Various lead times may apply to this product. Please contact us for more details.

(We do not offer credits or returns for this item.)

This fiber cable is priced per foot and may include a minimum order length.

If you would like to inquire about our custom fiber cable options such as terminated ends, pulleyes, and custom cut lengths, please call or email us.

Please call for shipping quote

Description

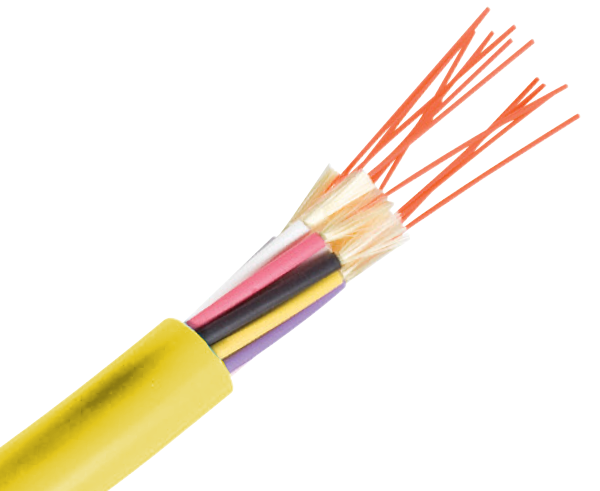

Breakout Fiber Optic Cable, Single Mode, 9/125, Indoor/Outdoor, Plenum (OFNP)

Ideal for demanding installations, the Breakout Plenum OFNP Single Mode 9/125 OS2 Fiber Cable offers rugged and reliable design for maximum mechanical and environmental protection. It's the easiest to install for direct termination of connectors to sub-units and panels/equipment, providing additional strain relief for better connector retention. UL Listed per NEC sections 770.179(b) for use in ducts, plenums, and air-handling spaces.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

High performance components and construction
UL Listed in accordance with NEC sections 770.179(b) for use in ducts, plenums and air-handling spaces
Most rugged and easy to install cable design for enterprise cabling applications
Core-Locked™ outer jacket design for installation survivability, long-term, trouble free service
Ideal for use in long, vertical installations
2.0mm subcables can be direct-terminated with standard connectors (2.5mm and 2.9mm subcables also available)
Subcabled fiber is environmentally and mechanically protected
Ideal for use in point-to-point runs in adverse environments
Direct termination to subcable provides additional strain relief for better connector retention during moves, adds, and changes
Design is ideal for direct pulling with mesh grips
Cable materials are indoor/outdoor - UV, water and fungus resistant
Wide operating temperature range of -40ºC to +85ºC
High performance 900 _m tight buffered coating on each optical fiber for environmental and mechanical protection
Interlocking armor can be applied to cables as an alternative to conduit installation
2 to 48 fibers

Applications

Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are necessary
Easiest cable to install where direct termination of connectors to sub-units and direct run to panels and equipment is desired

Cost Savings

Direct termination to subcable may eliminate the need for patch panels and patch cords and reduces connector loss
900 um buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
High crush resistance may eliminate the need for innerduct

Standards List

UL 1651
ANSI/NFPA 262
GR-409-CORE
ICEA-S-104-696
ICEA-S-83-596
TIA-568
TIA-598

Specifications

Jacket Characteristics

Operating Temperature: -40ºC to +85ºC
Storage Temperature: -40ºC to +85ºC
Installation Temperature: 0ºC to +60ºC
Flame Retardancy: UL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)
Crush Resistance: 2,100 N/cm
Impact Resistance: 1,000 impacts
Flex Resistance: 2,000 cycles
