CAT6 Outdoor Bulk Ethernet Cable: Direct Burial Solid Copper UTP UV, 23 AWG

Name: CAT6 Outdoor Bulk Ethernet Cable: Direct Burial Solid Copper UTP UV, 23 AWG
Brand: Primus Cable
SKU: C6CMXU-7829BK
Price: 69.99 USD
Availability: InStock

by Primus Cable

$69.99

SKU: C6CMXU-7829BK

Length

250ft

500ft

1000ft

Quantity

Various lead times may apply to this product. Please contact us for more details.

ETL Listed RoHS Compliant ISO 9001

NOTE: 250 ft & 500 ft lengths are considered to be custom length cuts and can not be returned and/or refunded.

Description

CAT6 Bulk Outdoor Cable Unshielded

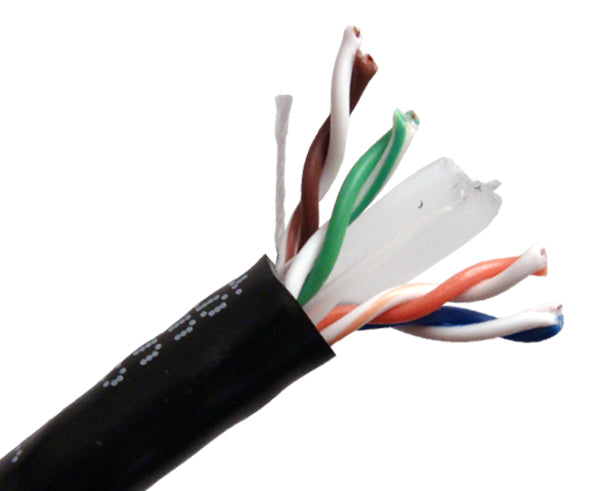

CAT6 Outdoor Bulk Ethernet Cable, Direct Burial Solid Copper UTP UV, 23 AWG

Our Outdoor Unshielded Direct Burial CAT6 Cable offers an ideal solution for your outdoor voice, data, video, and security networking needs. Whether for home, office, or campus projects, we provide tailored network solutions.

This Outdoor Direct Burial CAT6 Cable is perfect for installations where the cable will be buried underground in conduit. It features 8 conductors (4-Pairs) of solid bare copper with high-density polyethylene (HDPE) insulation and a low-density polyethylene (LDPE) Jacket. Designed for residential outdoor direct burial LAN applications, it ensures reliable performance in demanding outdoor environments, tested to operate at speeds up to 600MHz.

To guarantee high-quality bulk Ethernet cables, our cable meets and/or exceeds CAT6 ANSI/TIA-568.2-D standards. Manufactured to meet current CAT6 guidelines, verified by external standards organizations, and RoHS Compliant.

Technical Diagram

CAT6 Direct Burial Unshielded

Cat 6 Bulk Cable Options

Stranded Copper UTP	Stranded Copper F/UTP	Solid Copper UTP					Solid Copper F/UTP			Solid Copper S/FTP
General (CM)	General (CM)	General (CM)	Outdoor (CMX)	24AWG Riser (CMR)	23AWG Riser (CMR)	Plenum (CMP)	Outdoor (CMX)	Riser (CMR)	Plenum (CMP)	General (CM)

CAT6A Bulk Cable Options

Solid Copper UTP			Solid Copper F/UTP
Outdoor (CMX)	Riser (CMR)	Plenum (CMP)	Outdoor (CMX)	Riser (CMR)	Indoor/Outdoor (CMR)	Plenum (CMP)

To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

High-Performance Data Communications Cable
CAT6 Outdoor Direct Burial, Outside Plant
Suitable For 600MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD/CDDI
Designed for Outdoor Installations (CMX)
Unshielded Twisted Pairs (UTP)
4-Pair Easily Identified Color Striped Pairs
23 AWG Solid Bare Copper Conductors
Excellent Attenuation and Crosstalk Characteristics
Exceeds ANSI/TIA-568.2-D, ISO/IEC 11801, and YD/T1019 Specifications
ETL Verified
RoHS Compliant
Sequential Length Markings on Jacket

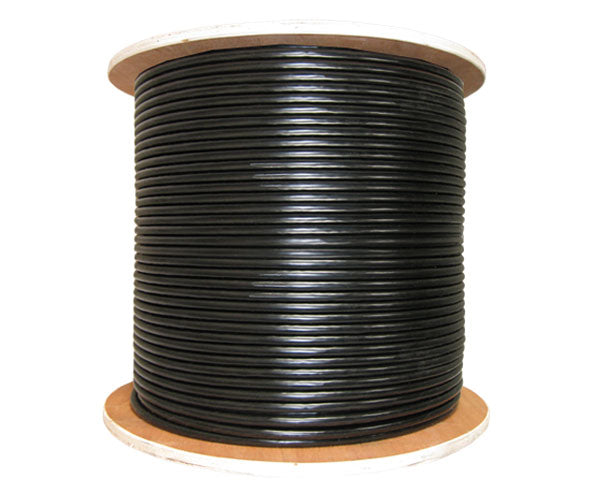

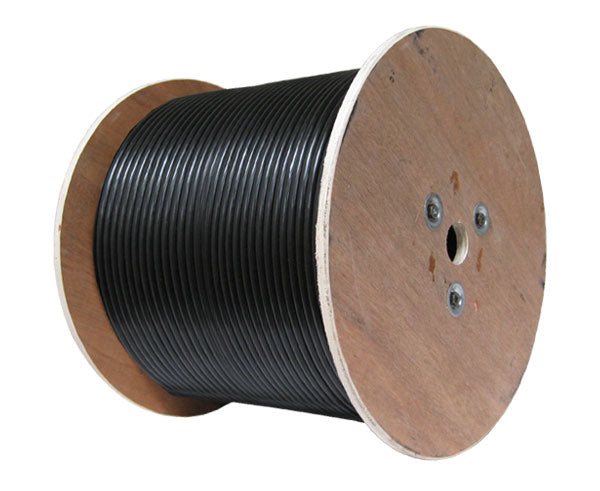

Supplied on a 1000' Wooden Spool

SpecificationsAdditional Information

Additional Information

Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

Our CAT6 Outdoor Direct Burial Ethernet Cable is compatible with our:

What’s In The Box
