Duplex Cable Corning Fiber Multimode 62.5/125 OM1 Riser OFNR

Duplex Riser Fiber Optic Cable, Zip Cord, Multimode OM1, Corning Fiber, Indoor

Name: Duplex Riser Fiber Optic Cable, Zip Cord, Multimode OM1, Corning Fiber, Indoor
Brand: Primus Cable
SKU: FB28-3795-MD3R
Price: 0.3 USD
Availability: InStock

by Primus Cable

$0.30

SKU: FB28-3795-MD3R

Diameter

3.0 mm

2.0 mm

Quantity

Time Stamp

If you’re looking to purchase more than one spool then each spool needs to be entered into the cart as a separate line item. Input the length and then select Add to Cart for every individual spool needed.
This product has a minimum $50 associated cut fee applied to the shipping cost

Various lead times may apply to this product. Please contact us for more details.

(We do not offer credits or returns for this item.)

Note: To request a quote email us or give us a call.

If you would like to inquire about our custom fiber cable options such as longer lengths, custom cut lengths, terminated ends, or pulleyes please call or email us.

Description

Duplex CMR OM1 MultiMode Fiber Cable

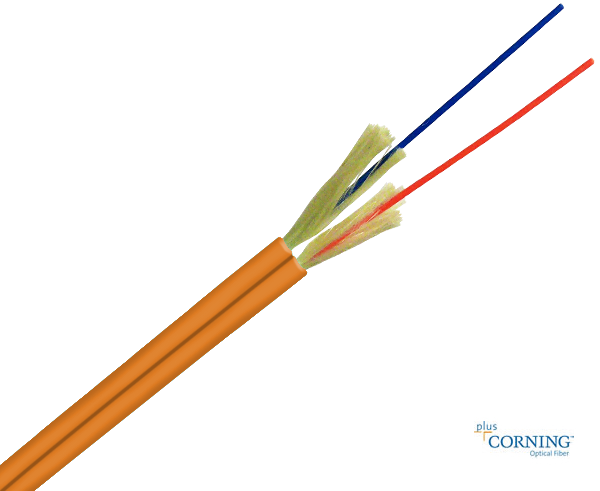

This Riser CMR Duplex MultiMode OM1 Fiber Cable is composed of a tight buffer, aramid yarn, and a PVC outer jacket. All component materials meet the EU RoHS and REACH Directive standards.

These riser duplex fiber cables are available in 12 TIA standard colors or special order colors. The fiber cable is UL Listed OFNR for use in vertical runs in building riser shafts or from floor to floor. Standard surface print denotes construction, NEC rating, and fiber type, and includes footage markers. Custom print can also be accommodated.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

FeaturesSpecifications

Temperature Range

Storage Temperature: -40ºC to +70ºC
Operating Temperature: -20ºC to +70ºC

Cable Characteristics

Fiber Count: 2
Outer Jacket Material: Flame Retardant PVC
Outer Jacket Color: Orange
Strength Member: Aramid Yarn
Tight Buffer Material: Flame Retardant PVC
Tight Buffer Color: Blue & Orange

Mechanical Characteristics

Nominal Outer Diameter

3.0 mm x 5.95
2.0 mm x 3.95
1.8 mm x 3.65
1.6 mm x 3.25

Minimum Bend Radius (Installation): 5 mm/10 mm

Optical Characteristics

Core Size: 62.5 um
Wavelength: (850/1300) nm
Max. Attenuation: (3.5/ 1.5) dB/ km
Bandwidth (EMB) (High Performance): 220 MHz @850nm
Link Length (10GB/s): N/A

Additional Information

Multi-Mode cable commonly has a diameter in the 50-to-100 micron range (typical multimode fiber core diameters are 50 or 62.5 micrometers). Multimode fiber gives you high bandwidth at high speeds (10 to 100MBS - Gigabit to 275m to 2km) over medium distances. Light waves are dispersed into numerous paths, or modes, as they travel through the cable's core typically 850 or 1300nm. However, in long cable runs (greater than 3000 feet [914.4 meters), multiple paths of light can cause signal distortion at the receiving end, resulting in an unclear and incomplete data transmission so designers now call for single mode fiber in new applications using Gigabit and beyond.
