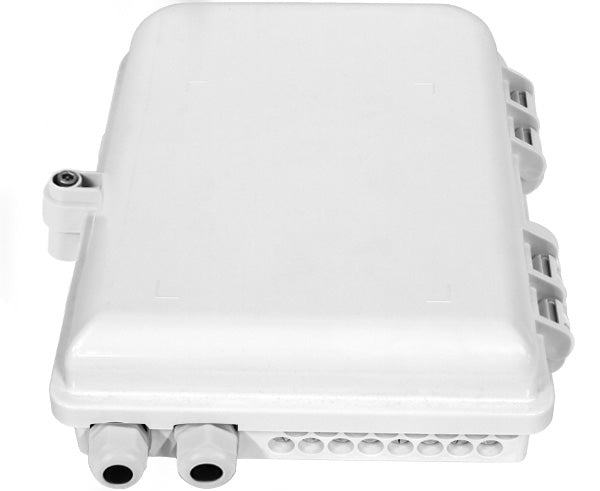

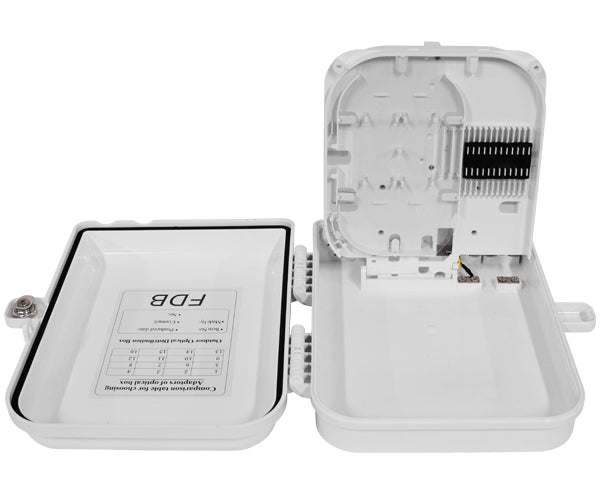

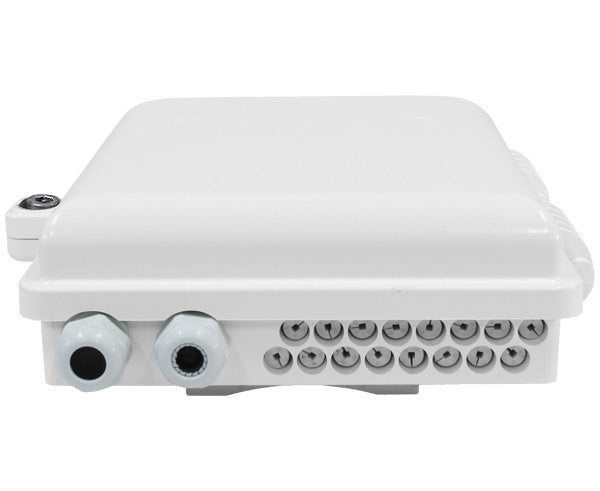

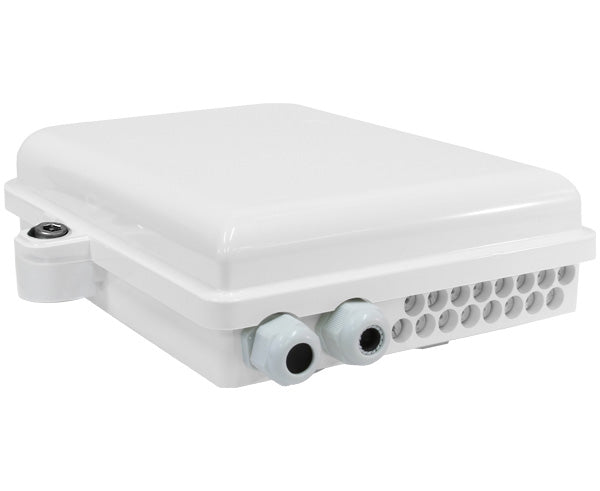

Fiber Termination Box, Wall Mount, Plastic, 16 Splices, Indoor/Outdoor, IP-65 Rated White with Hex Lock

$59.99
SKU: FB46-7201W16

Note: Adapters and Pigtails Sold Separately


IP66 Outdoor Rating Lockable

Description

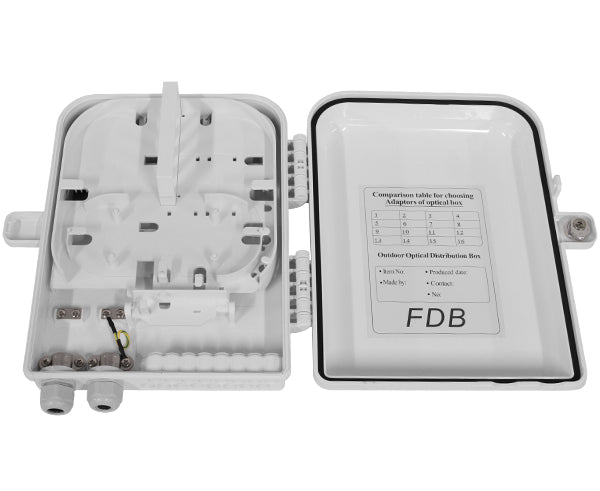

Lockable Wall Mount Fiber Termination/Distribution Box with Integrated Splice Tray and Spool in White

This indoor/outdoor wall-mount fiber demarcation/distribution box is a rugged, low cost, low-profile interconnection between the central office and multi-dwelling units of FTTx application. Its multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up.

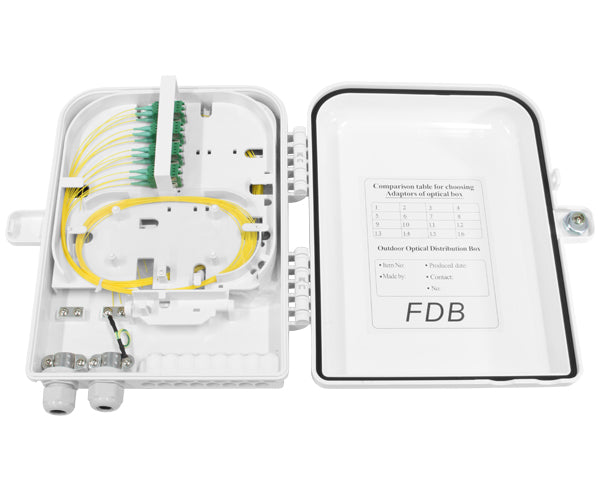

This FDU can house 16 simplex SC adapters or 16 duplex LC adapters and is offered in white plastic with a hex lock for security. Applications include FTTH, FTTB, FTTC, Telecommunication Networks, CATV, and Local Area Networks.

To convert this wall-mount FDU into a Pole mount 2 of the FB46-7279PMK Pole Mount Kits would need to be purchased.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system works properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

  • Fiber Distribution Unit (FDU) for FTTH/FTTB Applications
  • Wall Mountable (Includes Hardware)
  • Pole Mountable with FB46-7279PMK Pole Mount Kit (Sold Separately)
  • Holds 16 Simplex SC Adapters Or 16 Duplex LC Adapters
  • Hex-Lock
  • Integrated Splice Tray
  • Integrated Fiber Management
  • Made From A Durable Plastic
  • White Color
  • Indoor/Outdoor Design With IP-65 Rating


Specifications


What's in the Box

  • Qty - (1) Wall Mount White Plastic Fiber Distribution Box
  • Qty - (1) Integrated Splice Tray Fits 16 Splices
  • Qty - (1) Integrated Spool
  • Qty - (16) Fiber Splicing Sleeves
