Fire Alarm Cable: FPLP Unshielded Plenum - Data Grade, 18/2 AWG Solid Bare Copper Conductors, Red Jacket, 1000 Feet Length
Commercial / Data Grade Addressable Systems FPLP Rated Unshielded
Description

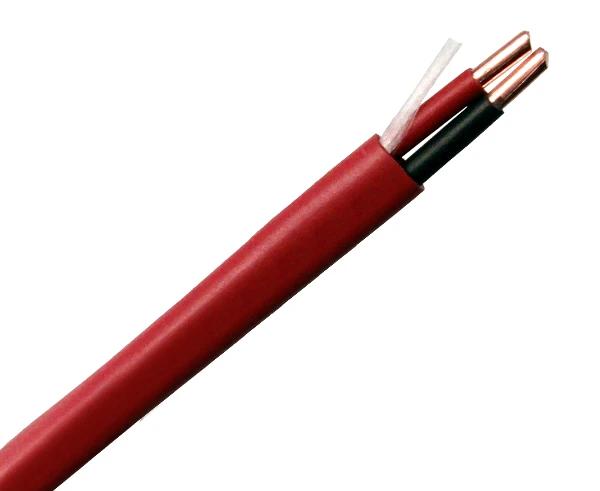

18/2 Plenum (FPLP) Fire Alarm Cable
The Plenum Shielded Data Grade (FPLP) Fire Alarm Cable features two solid bare copper conductors with Fluoropolymer insulation, available in 12, 14, 16, and 18 gauge sizes. This 18/2 AWG plenum FPLP fire alarm cable is equipped with a red low-smoke PVC jacket, ensuring safe installation through environmental airflow spaces. Its shielding effectively protects against system noise, while sequential footage markings on the jacket aid installation, allowing you to monitor the remaining cable length. Investing in top-tier fire alarm cables is essential for life-saving reliability. We provide high-quality products crucial for activating sprinklers and smoke alarms during emergencies, ensuring prompt evacuation. Choose a trusted source to safeguard lives.
Fire Alarm Installation
There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, siren alarm, fire alarm control panel, pull boxes, burglar alarms, and other fire alarm protection systems. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.
Fire System Products
We offer a variety of shielded and unshielded Plenum, Non-Plenum and Riser fire alarm cables FPLP and FPLR, ranging from 18 AWG to 12 AWG solid bare copper conductors. These fire cables are flexible for easy installation. With our commitment to quality and dependability our cables are UL, ETL Listed and RoHS Compliant. Plenum-rated alarm cables means it can be run in the area between floors that is used as duct area or other air space. Plenum refers to the material used in the jacket of the cable that burns less than non-plenum cables.
Why Plenum?
A plenum space is an open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
Features
Features
- Low smoke-generating FPLP plenum-rated PVC jacket
- Sequential footage markings on jacket
- Data Grade Cable
- Fluoropolymer insulated Conductor
- Red PVC Jacket
- ETL listed
- RoHS Compliant
- Voltage rating: 300V
- Temperature rating: 75°C
- Made in USA
Applications:
Applications:
- Fire Alarm Wiring
- Fire Protection
- Signals
- Monitoring and Detection Systems
- Audio Circuits
- Notifications Circuits
- Control Circuits
- Initiating Circuits
Conductor Insulation Colors
- Black
- Red
Specifications
Specifications
Physical Construction |
|
|---|---|
| Inner Conductor | Solid Bare Copper |
| Conductor Size | 18 AWG |
| Insulation | Low Smoke PVC |
| Nominal OD | 4.19mm |
| Outer Jacket Diameter | .457mm |
| Jacket | PVC |
| Jacket Color | Red |
| Shielding | N/A |
Electrical Characteristics |
|
|---|---|
| Temperature | 75℃ |
| Voltage Rating | 300V |
| Color Mode | Black Red |
Additional Information
Additional Information
To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.
To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.
What's in the Box
What's in the Box

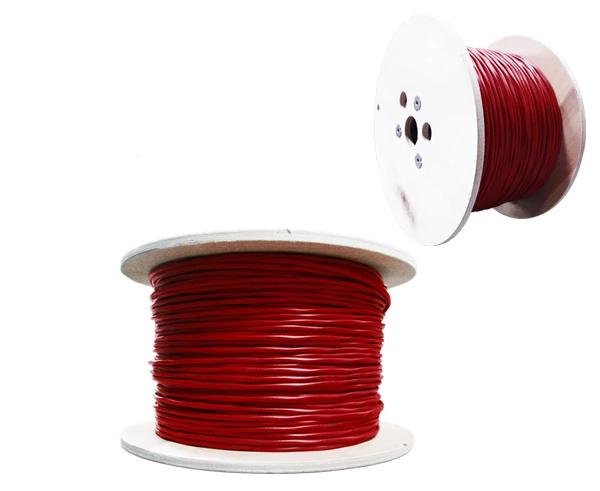

- Fire Alarm Cable, Shielded Plenum, Data Grade, 18/2AWG, Solid BC, Red PVC Jacket
- 1000 Ft.
