Mid Span Slit & Ring Tool (8.7 mm-14.6 mm)

Name: Mid Span Slit & Ring Tool (8.7 mm-14.6 mm)
Brand: Jonard Tools
SKU: MS-446
Price: 198.95 USD
Availability: InStock

by Jonard Tools

$198.95

SKU: MS-446

Quantity

Various lead times may apply to this product. Please contact us for more details.

Description

Mid Span Slit & Ring Tool (8.7 mm-14.6 mm)

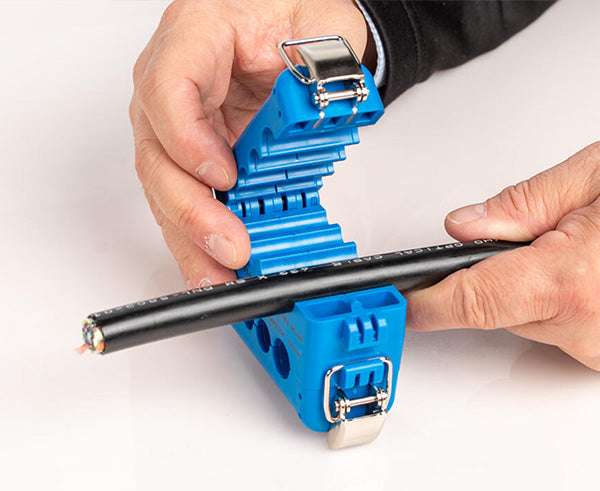

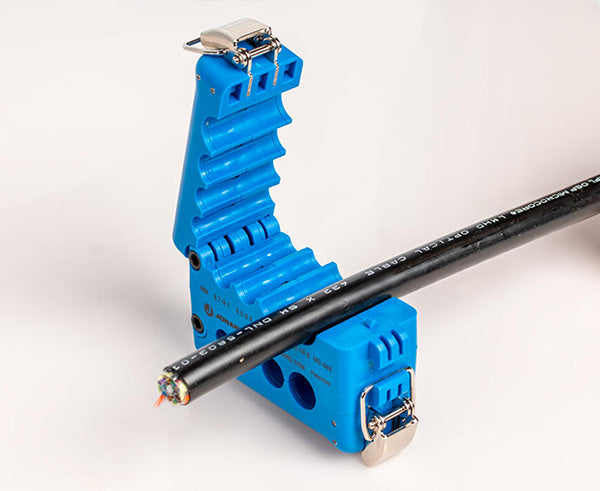

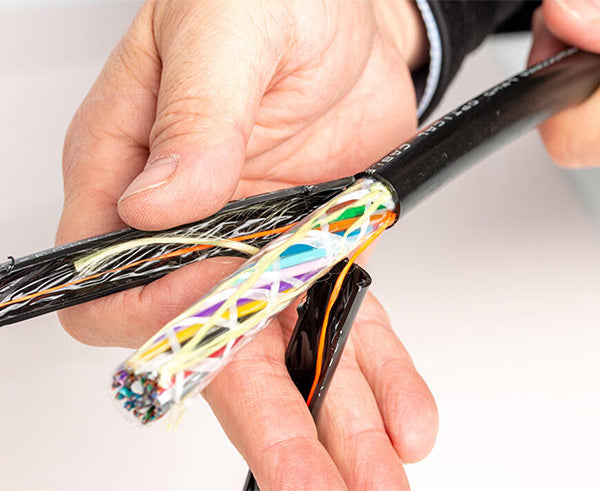

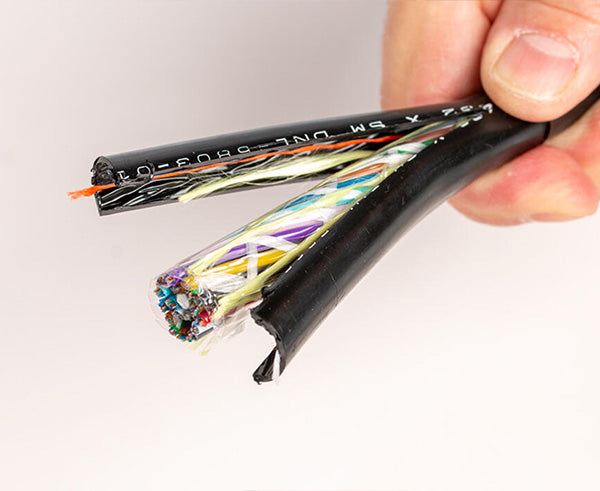

The PATENTED and award-winning MS-446 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in AFL's Heavy Duty OSP MicroCore® (LMHD-Series) cables as well as other thick-walled 8.7 to 14.6 mm diameter jackets.

Features

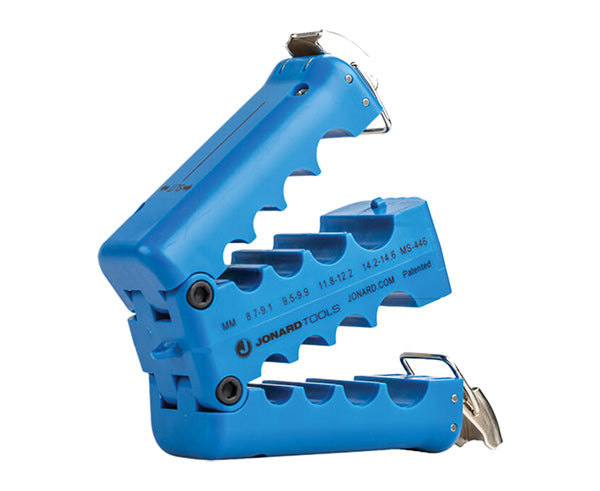

Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 8.7 mm to 14.6 mm in diameter

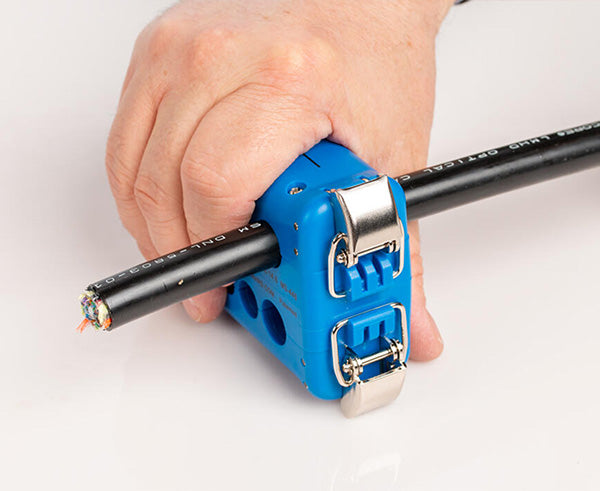

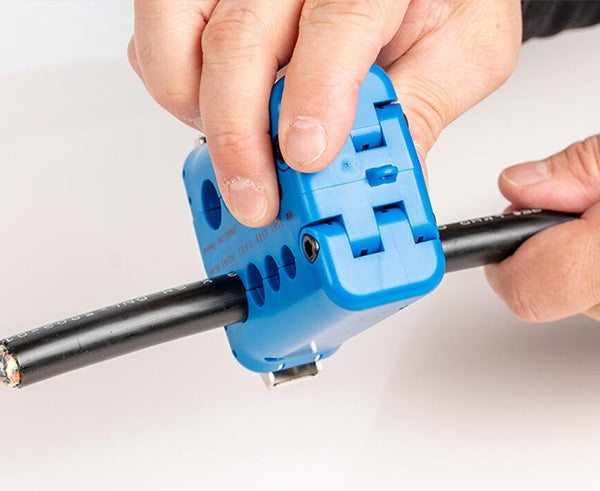

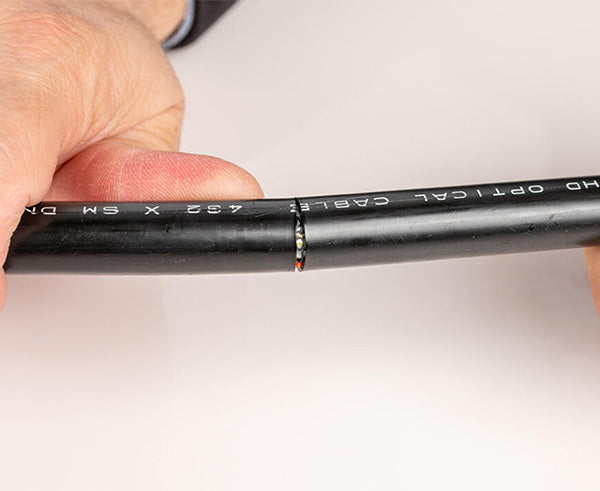

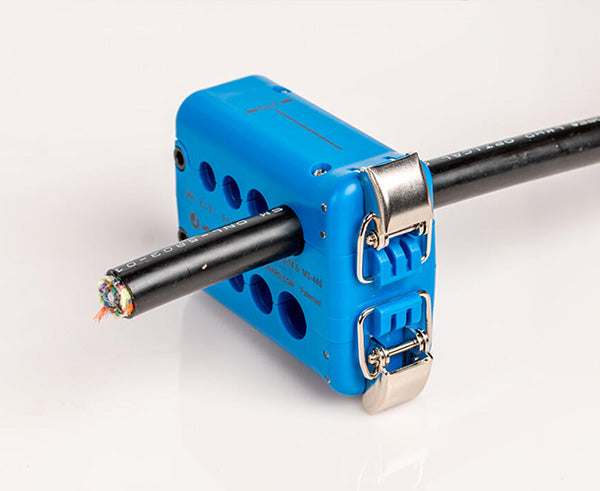

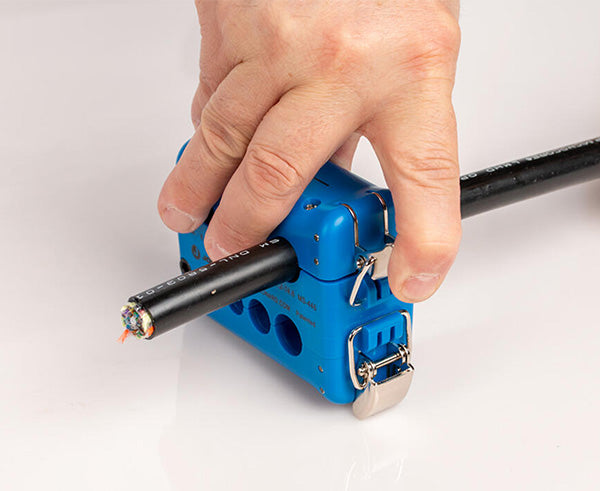

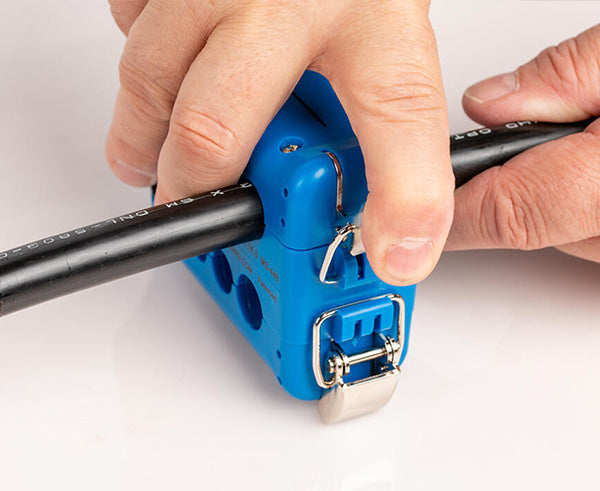

One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)
Compact design weighing less than 8 oz with included tethering hole makes it perfect to use in tight spaces or on the go
Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
This tool was specially designed for AFL's Heavy Duty OSP MicroCore® (LMHD-Series) cables and other similar style cables
Replacement blade set available, part number: MS-446RB
Blades last for 5,000 slits/cuts

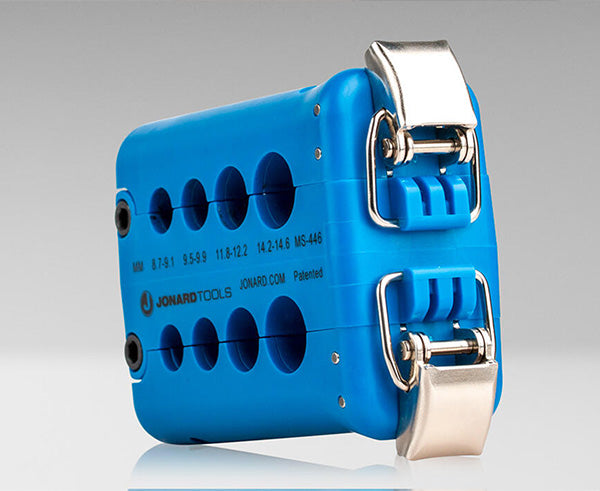

Groove Sizes: 8.7-9.1 mm | 9.5-9.9 mm | 11.8-12.2 mm | 14.2-14.6 mm

SpecificationsAdditional Information What's In The Box?

Cut Type	Slit, Ring
Number of Slitting Grooves	4
Number of Ringing Grooves	4
Cable Type	Heavy Duty OSP MicroCore® (LMHD-Series)
Cable Diameter	8.7 mm - 14.6 mm
Dimensions	4" x 1.5" x 3.1" (101 mm x 38 mm x 79 mm)
Weight	0.54 lb (244.252 g)
UPC #	810053350775
