Description

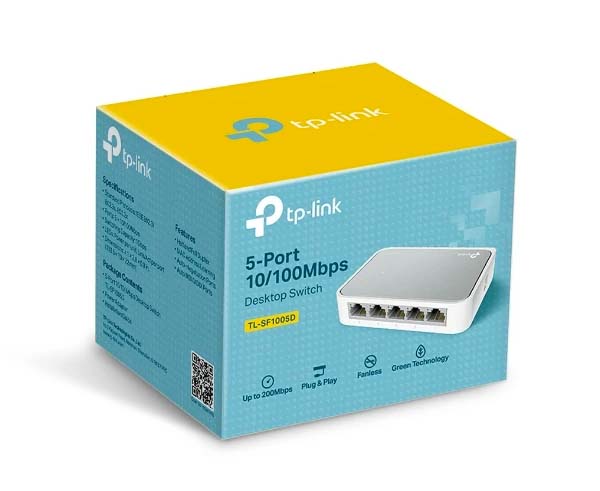

5-Port Desktop Switch, 10/100Mbps
The 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 60% of power consumption, making it an eco-friendly solution for your home or office network. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 x 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
Easy to Use
The auto features of this ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Features
Features
- Innovative energy-efficient technology saves power up to 68%.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Supports MAC address auto-learning and auto-aging.
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
- Fanless design ensures quiet operation.
- Desktop or wall-mounting design.
- Plug and Play design simplifies installation.
Specifications
Specifications
| HARDWARE FEATURES |
||
|---|---|---|
| Interface | 5 x 10/100/1000 Mbps RJ45 Ports Auto-Negotiation/ Auto MDI/MDIX | |
| Fan Quantity | Fanless |
|
| External Power Supply | External Power Adapter (Output: 53.5 VDC/ 1.31 A) | |
| Packet Forwarding Rate | 0.744 Mpps | |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant |
|
| MAC Address Table | 2K |
|
| Jumbo Frame | 2 KB |
|
| Switching Capacity | 1 Gbps | |
| Dimensions (W x D x H) |
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
|
| Max Power Consumption |
1.9 W (no PD connected) 74 W (with 67 W PD connected) |
|
| Max Heat Dissipation |
6.5 BTU/h (no PD connected) 252.3 BTU/h (with 67 W PD connected) |
|
| SOFTWARE FEATURES |
||
|---|---|---|
| Transmission Method | Store-and-Forward |
|
| Advanced Functions |
Compatible with IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1-4) Priority Mode Button (Ports 1-2) MAC Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
|
| GENERAL |
||
|---|---|---|
| Certification | FCC, CE, RoHS |
|
| Package Contents |
TL-SF1005P Power Adapter Installation Guide |
|
| Environment |
Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
|
Additional Information
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and doesn't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:
- CAT6 Ethernet Cables
- CAT6A Ethernet Cables
- CAT5E Ethernet Cables
- PoE Splitter, Fast Ethernet, 1 Port
What's In The Box
What's In The Box
- Qty 1 - 5-Port 10/100Mbps Desktop Switch
- Qty 1 - Power Adapter
- Qty 1 - Installation Guide
