Description

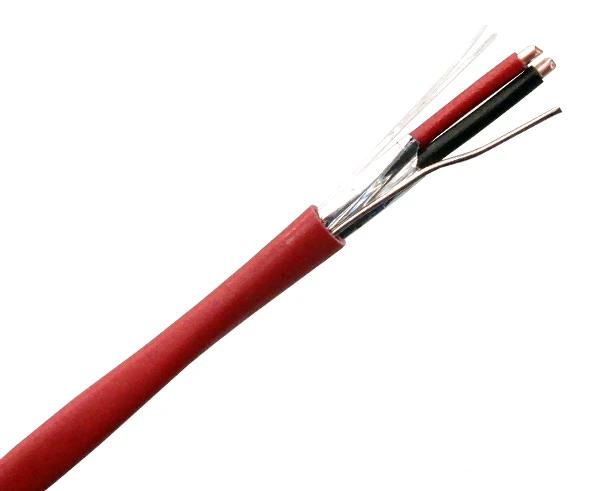

FPLR Shielded Riser Fire Alarm Cable
The Shielded Riser (FPLR) Fire Alarm Cable comes with solid bare copper conductors in 12, 14, 16, and 18 gauge sizes. It boasts aluminum mylar shielding and a low-smoke PVC jacket, along with a 24 gauge drain wire. The shielding effectively guards against system noise, while sequential footage markings aid in installation, facilitating easy monitoring of the remaining cable length.
Investing in high-quality fire alarm cables is paramount for ensuring safety during emergencies. We exclusively offer top-tier products, recognizing their critical role in safeguarding lives. Choose a trusted source for fire alarm cables to guarantee reliability when it matters most.
Fire Alarm Applications
There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, microprocessor-controlled systems, pull boxes (fire alarm signals), burglar alarms, and other low-voltage applications. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.
Fire Alarm Products
We offer a variety of shielded and unshielded Plenum, Non-Plenum, and Riser alarm cables FPLP and FPLR, ranging from 18 AWG to 12 AWG solid bare copper conductors. These fire cables are flexible for easy installation. With our commitment to quality and dependability our cables are UL, ETL-Listed, and RoHS Compliant. Plenum-rated fire alarm cables mean it can be run in the area between floors that is used as duct area or other air space. Plenum refers to the material used in the jacket of the cable that burns less than non-plenum cables.
Features
Features
- FT4 riser-rated PVC jacket
- Sequential footage markings on jacket
- Aluminum mylar shielding
- UL Listed
- ETL listed
- RoHS Compliant
- Voltage rating: 300V
- 24 gauge drain wire
- Temperature rating: 75°C
- Made in USA
Applications
Applications
- Fire alarm wiring
- Fire protection
- Signals
- Monitoring and detection systems
- Audio circuits
- Notifications circuits
- Control circuits
- Initiating circuits
Conductor Insulation Colors
- Black
- Red
Specifications
Specifications
Physical Construction | |
|---|---|
| Inner Conductor | Solid Bare Copper |
| Conductor Size | 12 AWG |
| Insulation | PVC (0.012 in.) |
| Nominal OD | 6.38 mm (0.251 in.) |
| Outer Jacket Diameter | .381mm (0.015in.) |
| Jacket | PVC |
| Jacket Color | Red |
| Shielding | Aluminum with Mylar |
Electrical Characteristics | |
|---|---|
| Temperature | 75℃ |
| Voltage Rating | 300 V |
| Color Mode | Black Red |
Additional Information
Additional Information
To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.
What's in the Box
What's in the Box
- Fire Alarm Cable (FPLR) Riser Shielded, 12/2 AWG Solid Bare Copper Conductors, Red PVC Jacket
- 1000 Ft
