4MP Security Dome Camera, 2.8mm lens, TDN WDR, IP67 IR, 12V/PoE

SKU: IPV428X
Vendor
Uniview
Regular price
$112.00
Sale price
$112.00
Regular price
$158.00
Sold out
Unit price
Quantity must be 1 or more

Description

Only 5 Left! Buy While Supplies Last.

Description

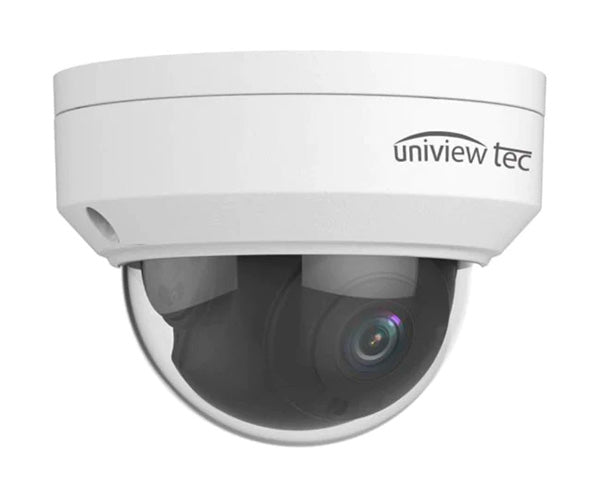

4MP Security Camera, True Day/Night, WDR, IR Vandal Surveillance Dome

This IR Vandal Dome by Uniview Tec features 4MP video quality at 2688 x 1520 resolution. With built-in backlight compensation and two-way audio, this camera is well equipped for any application. Additionally, this vandal dome camera is supported by Uniview Tec software and comes with powerful video analytics as well as mobile viewing compatibility. This camera is IP67 weather resistant and IK10 vandal resistant making it an ideal choice for both indoor and outdoor camera situations. This camera is a great choice for any security camera system.

Use our convenient Camera Accessory Guide to determine what items you will need for installation.

Features

Features

  • Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
  • 2.8mm fixed lens
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
  • Triple Video Streams and ONVIF Profile S Compliant
  • Powerful Video Analytics such as Intrusion, Tampering, Audio and Human Body Detection
  • PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
  • Built-in Micro-SD Card Slot enables local storage up to 256GB
  • 3-Way Axis, IP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal Housing
  • Supported by Uniview Tec Guard Station Software and Guard Viewer Mobile Apps for iPhone and Android Device

Specifications

Specifications




Camera
Sensor 1/3", progressive scan , 4 megapixel, CMOS
Lens 2.8mm @ F2.0
Angle of View (H x V) 95.8° x 55.2°
Shutter Auto/Manual, 1 ~ 1/100000 s
Minimum Illumination Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
IR LED Range Up to 30m (98 ft) IR range
WDR Digital
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream Main: 4MP (2688 x 1520) @ 30fps; or (2560 x 1440) @ 30fps; or 3MP (2304 x 1296) @ 30fps
Sub: 4CIF (704 x 576) @ 30fps
Third Stream: Third Stream: CIF (352 × 288) @ 30fps
HLC, BLC, Digital Defog Supported
OSD, Privacy Mask, Motion Detection & ROI Up to 4 areas
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP,
RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,
HTTPS, SMTP, SSL
Compatible Integration ONVIF (Profile S, G, T), API
Network RJ45, 10M/100M Base-TX Ethernet
General
Power
12VDC +/-25%, PoE (IEEE802.3 af);
Power consumption: Max 5.5W
Dimensions (Ø x H) & Weight Φ109 x 81 mm (Ø4.3” x 3.2”); 0.45kg (0.99lb)
Operating Temperature & Humidity -35°C ~ +60°C (-31°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP67, IK10; CE, FCC

Mounting Accessories

Mounting Accessories

This camera is compatible with the following mounts:

Description

4MP Security Camera, True Day/Night, WDR, IR Vandal Surveillance Dome

This IR Vandal Dome by Uniview Tec features 4MP video quality at 2688 x 1520 resolution. With built-in backlight compensation and two-way audio, this camera is well equipped for any application. Additionally, this vandal dome camera is supported by Uniview Tec software and comes with powerful video analytics as well as mobile viewing compatibility. This camera is IP67 weather resistant and IK10 vandal resistant making it an ideal choice for both indoor and outdoor camera situations. This camera is a great choice for any security camera system.

Use our convenient Camera Accessory Guide to determine what items you will need for installation.

Features

Features

  • Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
  • 2.8mm fixed lens
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
  • Triple Video Streams and ONVIF Profile S Compliant
  • Powerful Video Analytics such as Intrusion, Tampering, Audio and Human Body Detection
  • PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
  • Built-in Micro-SD Card Slot enables local storage up to 256GB
  • 3-Way Axis, IP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal Housing
  • Supported by Uniview Tec Guard Station Software and Guard Viewer Mobile Apps for iPhone and Android Device

Specifications

Specifications




Camera
Sensor 1/3", progressive scan , 4 megapixel, CMOS
Lens 2.8mm @ F2.0
Angle of View (H x V) 95.8° x 55.2°
Shutter Auto/Manual, 1 ~ 1/100000 s
Minimum Illumination Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
IR LED Range Up to 30m (98 ft) IR range
WDR Digital
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream Main: 4MP (2688 x 1520) @ 30fps; or (2560 x 1440) @ 30fps; or 3MP (2304 x 1296) @ 30fps
Sub: 4CIF (704 x 576) @ 30fps
Third Stream: Third Stream: CIF (352 × 288) @ 30fps
HLC, BLC, Digital Defog Supported
OSD, Privacy Mask, Motion Detection & ROI Up to 4 areas
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP,
RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,
HTTPS, SMTP, SSL
Compatible Integration ONVIF (Profile S, G, T), API
Network RJ45, 10M/100M Base-TX Ethernet
General
Power
12VDC +/-25%, PoE (IEEE802.3 af);
Power consumption: Max 5.5W
Dimensions (Ø x H) & Weight Φ109 x 81 mm (Ø4.3” x 3.2”); 0.45kg (0.99lb)
Operating Temperature & Humidity -35°C ~ +60°C (-31°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP67, IK10; CE, FCC

Mounting Accessories
