Description

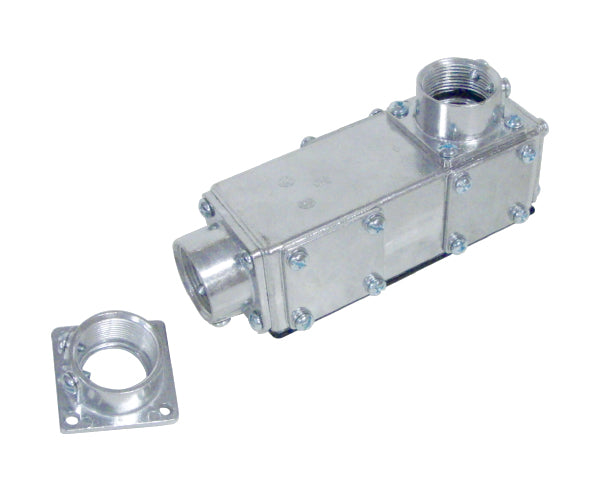

AnyBODY™ Aluminum Die-Cast Conduit - 5 in 1
Our AnyBODY™ Aluminum Die-Cast Conduit is made from copper-free aluminum die-cast, it ships as an LB, but converts to a T, LL, LR or C by switching the blank plates and threaded flanges to create the style you need. This product includes flanges that are threaded for rigid and includes set-screws for EMT. The included set-screws may be used for rigid conduit, but are no necessary. This product is listed rain-tight with rigid and concrete-tight for EMT. This product can also be used for EMT to Rigid.
This product meets NEC 2011 314.16 (c) (2) for Conduit Bodies with Splices, Taps or Devices. Only those conduit bodies that are durably and legibly marked by the manufacturer with their volume shall be permitted to contain splices, taps or devices. The maximum number of conductors shall be calculated in accordance with 314.16 (B). Conduit bodies shall be supported in a rigid and secure manner.
Features
Features
- Sizes 1/2" to 4"
- Includes threaded flanges for three openings
- UL/CSA Listed
- Meets NEC 2008 Section 314.16 Paragraph (C) (2) for Conduit Bodies with Splices, Taps, or Devices
- Convenient and easy to use
- Saves the time, space, and cost of stocking five different conduit bodies (LB, T, LL, LR, C)
- 1/2" to 2" sizes are combination EMT/rigid - they're threaded for rigid, but also have a setscrew for use with EMT
- Volume and wire fill marked inside bodies
- Recessed Seated O-rings under covers and flanges
Specifications
Combination threaded IMC or rigid and set-screw EMT:
| Part Number | Trade Size | Cubic Inches | Dim A | Dim B | Dim C |
|---|---|---|---|---|---|
| 930 | 1/2" | 4.80 | 10875 | 3.9375 | 7.375 |
| 931 | 3/4" | 7.80 | 10.875 | 3.9375 | 7.375 |
| 932 | 1" | 11.50 | 11 | 3.9375 | 10.875 |
| 933 | 1-1/4" | 32.30 | 3.5 | 5.25 | 10.25 |
| 934 | 1-1/2" | 32.30 | 3.5 | 5.25 | 10.25 |
| 935 | 2" | 69.50 | 3.5 | 5.25 | 10.25 |
Threaded only for IMC or rigid:
| Part Number | Trade Size | Cubic Inches | Dim A | Dim B | Dim C |
|---|---|---|---|---|---|
| 936 | 2-1/2" | 175.50 | 6.5 | 19.5 | 6.5 |
| 937 | 3" | 175.50 | 6.5 | 19.5 | 6.5 |
| 938 | 3-1/2" | 334.00 | 6.5 | 19.5 | 6.5 |
| 939 | 4" | 334.00 | 6.5 | 19.5 | 6.5 |
What’s In The Box
What’s In The Box
- Qty 1 - AnyBODY™ Copper-free aluminum die-cast Conduit Body is five conduit bodies in one (sizes vary)
