Mechanical Auto OFF Springwound In-Wall Timer

SKU: NPNB-A502H
Vendor
Primus Cable
Regular price
$80.83
Sale price
$80.83
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more
A502H
A502HW
A506HW
A512H
A512HHW
A512HW
A515M
A515MW
A530M
A530MA
A530MW
A560M
A560MH
A560MHW
A560MW

Description

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

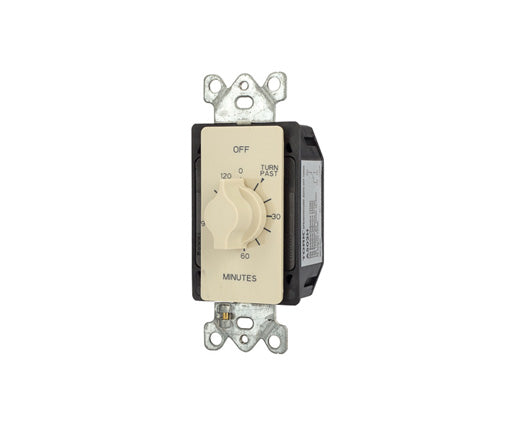

Auto OFF Springwound In-Wall Timer

Primus Cables springwound in-wall timers can be used for whole house fans, indoor/outdoor lighting, plus bathroom fans and lights, self storage.

Features

Features

  • Variable Timing: Twist knob for time ON setting. Time ON lengths from 15 minutes to 12 hour vary by model.
  • Hold Feature: Some models have position for constant ON.
  • Easy-Set: No adjustments. Just wire and go!
  • Easy Wiring: No neutral required. Great for retrofit! Use as single or in multi-gang box with no de-rating.
  • Switch Type: SPDT "2 in 1" contacts wire as SPST also. Can wire normally on and countdown while off.
  • Color: Ivory, Light Almond, White.
  • Wall Plate: Fits standard or decorator style wall plates, see below (not included).
  • Caution: This timer is not to be used in precision timing applications where inaccurate timing could have dangerous consequences (i.e. sun lamp, sauna, etc.).

Specifications

Specifications

  • Input Voltage: 125/250/277VAC, 50/60Hz
  • Terminal Range: #12AWG.
  • Operating Temperature: 32 °F to +122 °F (0 °C to +50 °C).
Part# Interval Timer Hold Feature Color
NPNB-A502H 2 Hours No Hold Ivory
NPNB-A502HW 2 Hours No Hold White
NPNB-A506HW 6 Hours No Hold White
NPNB-A512H 12 Hours No Hold Ivory
NPNB-A512HHW 12 Hours With Hold White
NPNB-A512HW 12 Hours No Hold White
NPNB-A515M 15 Minutes No Hold Ivory
NPNB-A515MW 15 Minutes No Hold White
NPNB-A530M 30 Minutes No Hold Ivory
NPNB-A530MA 30 Minutes No Hold Lt. Almond
NPNB-A530MW 30 Minutes No Hold White
NPNB-A560M 60 Minutes No Hold Ivory
NPNB-A560MH 60 Minutes With Hold Ivory
NPNB-A560MHW 60 Minutes With Hold White
NPNB-A560MW 60 Minutes No Hold White

What's In The Box

What's In The Box

  • Qty 1 - Auto OFF Springwound In-Wall Timer

Description

Auto OFF Springwound In-Wall Timer

Primus Cables springwound in-wall timers can be used for whole house fans, indoor/outdoor lighting, plus bathroom fans and lights, self storage.

Features

Features

  • Variable Timing: Twist knob for time ON setting. Time ON lengths from 15 minutes to 12 hour vary by model.
  • Hold Feature: Some models have position for constant ON.
  • Easy-Set: No adjustments. Just wire and go!
  • Easy Wiring: No neutral required. Great for retrofit! Use as single or in multi-gang box with no de-rating.
  • Switch Type: SPDT "2 in 1" contacts wire as SPST also. Can wire normally on and countdown while off.
  • Color: Ivory, Light Almond, White.
  • Wall Plate: Fits standard or decorator style wall plates, see below (not included).
  • Caution: This timer is not to be used in precision timing applications where inaccurate timing could have dangerous consequences (i.e. sun lamp, sauna, etc.).

Specifications

Specifications

  • Input Voltage: 125/250/277VAC, 50/60Hz
  • Terminal Range: #12AWG.
  • Operating Temperature: 32 °F to +122 °F (0 °C to +50 °C).
Part# Interval Timer Hold Feature Color
NPNB-A502H 2 Hours No Hold Ivory
NPNB-A502HW 2 Hours No Hold White
NPNB-A506HW 6 Hours No Hold White
NPNB-A512H 12 Hours No Hold Ivory
NPNB-A512HHW 12 Hours With Hold White
NPNB-A512HW 12 Hours No Hold White
NPNB-A515M 15 Minutes No Hold Ivory
NPNB-A515MW 15 Minutes No Hold White
NPNB-A530M 30 Minutes No Hold Ivory
NPNB-A530MA 30 Minutes No Hold Lt. Almond
NPNB-A530MW 30 Minutes No Hold White
NPNB-A560M 60 Minutes No Hold Ivory
NPNB-A560MH 60 Minutes With Hold Ivory
NPNB-A560MHW 60 Minutes With Hold White
NPNB-A560MW 60 Minutes No Hold White

What's In The Box

What's In The Box

  • Qty 1 - Auto OFF Springwound In-Wall Timer
