Description
Two (2) 100CFM fans are included. To order this unit with any optional equipment, please give us a call or email us.
Description

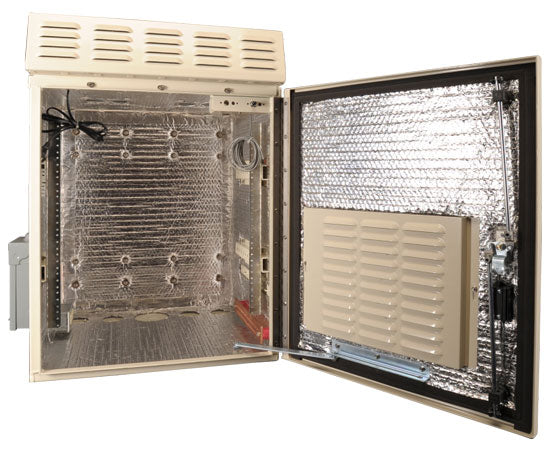

12RU Environmentally Controlled Backhaul Network Cabinet, Wall Mount, Includes Two 100CFM Fans
This 12RU is a perfect solution for any small backhaul application. The enclosure provides a full 12RU of mounting space in a compact, weatherproof enclosure. The unit is wall or unistrut mountable and features a pad lockable 3-point locking system. Dual 100 CFM fans are thermostatically controlled and flush hot air out through a 100% differentiated chamber above the cabinet. 120V Service entrance and duplex provide power to your rack needs and fans.
Features
Features
- Security and protection of 12RU of equipment in a compact enclosure.
- Rainproof, weatherproof housing.
- Wall/Unistrut or Pole mount options.
- 3 Point locking system.
- 120V Powering system.
- Thermostatically controlled dual 100 CFM fans.
- Continuous stainless steel piano hinge.
- Bus bar and door alarm switch do not interfere with rack access.
Specifications
Construction
| Main Body | 1/8” Aluminum |
| Hardware | Stainless Steel |
| Finish | Polyester Powder Coat |
| Rack | 19"-Width, Swing-out, 12RU Height, 10-32 Threads EIA/TIA |
| Door | 3 Point Latch, Piano Hinge, Wind Stop |
| Heating and Cooling | Dual thermostatically controlled, 48V DC, 100CFM fans with patented lifesaver roof |
| Mounting | Wall/Unistrut |
| Powering | 125V Duplex Receptacle with Service Entrance |
| Cable Entrance | 4 x (ø1.5 x 2.25") Dual Stage Knockouts 1 x (ø4.00") Single Stage Knockout |
| Dimensions | 31"H x 26"W x 23.5"D |
| Color | Beige |
| Weight | 87 lbs. |
