Description

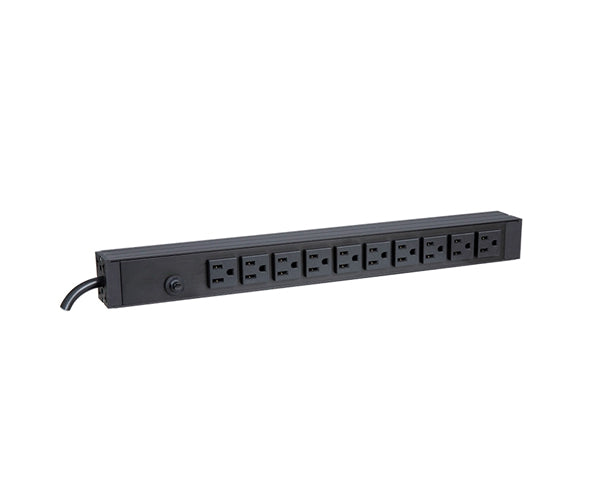

Power Strip - 120v 15A PDU, (10) 5-15R Sockets - Front/Back/Top/Bottom Horizontal, 1U Aluminum Enclosure, 10ft Power Cord
Primus Cable Basic Rack Mount PDUs distribute reliable power to IT equipment in a wide variety of applications where intelligence and/or remote monitoring are not required.
VPB-5151015H features (10) NEMA 5-15R outlets protected by a single 15A circuit breaker, a reset button in the event of an overload, and a durable anodized aluminum chassis. A 10 ft power cord with a NEMA 5-15P plug connects to an external power supply, while the versatile mounting design allows outlets to face any of four directions.
Features
Features
- 10 NEMA 5-15R outlets
- Single 15A circuit breaker w/reset button
- Switchless design prevents accidental shutdowns
- Includes tool-less 19" EIA mounting brackets that allow outlets to face the front, back, top, or bottom
- Conforms to UL 60950-1 and is RoHS compliant
Specifications
Specifications
| OVERVIEW | ||
|---|---|---|
| Item Number | NPNB-VPB-5151015H | |
| PDU Type | Basic | |
| Form Factor | Horizontal (1U) | |
| UPC Code | 846788117284 | |
| OUTPUT | ||
| Rated Output Voltage | 120V Single Phase | |
| Output Recepticles | (10) NEMA 5-15R | |
| Overload Protection | (1) 15A Circuit Breaker | |
| INPUT | ||
| Rated Input Voltage | 120V Single Phase | |
| Max. Input Current | 15A | |
| Frequency | 50/60 Hz | |
| Power Capacity | 1.4 kW | |
| Plug Type | NEMA 5-15P | |
| Cord Type | 14/3 AWG | |
| Cord Length | 10 ft (3.05 meters) | |
| PHYSICAL | ||
| Unit Width | 17.1 inches (435.6mm) | |
| Unit Height | 1.7 inches (44.0mm) | |
| Unit Depth | 1.7 inches (44.0mm) | |
| Unit Weight | 2.2 lbs (1.0 kgs) | |
| Shipping Length | 22.0 inches (558.8mm) | |
| Shipping Width | 2.8 inches (71.2mm) | |
| Shipping Depth | 2.9 inches (73.7mm) | |
| Shipping Weight | 2.5 lbs (1.1 kgs) | |
| Chassis Material | Anodized Aluminum (black) | |
| Mounting Options | Tool-less 19 inch EIA 4-way mounting brackets | |
| ENVIRONMENTAL | ||
| Operating Temperature | 30° to 140° F (0° to 60° C) | |
| Operating Relative Humidity | 0 - 95% | |
| Operating Elevation | 0 - 13,123 ft (4,000 meters) | |
| SPECIAL FEATURES | ||
| Breaker Reset | Push button on front | |
| COMPLIANCE | ||
| Certifications | Tested to conform to UL 60950-1; IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013: CB Scheme RoHS | |
What's in the Box?
What's in the Box?
- Qty 1 - Basic Rack Mount PDU - 15A, 120V, 1.4kW w/NEMA 5-15R Outlets
