Description

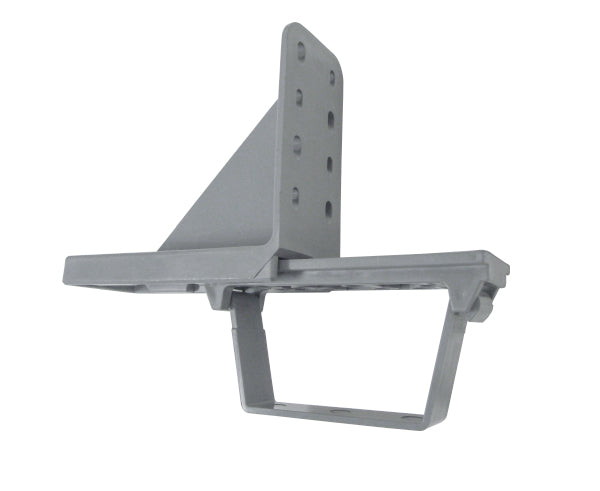

Cable Runway Wall Mount
Our Cable Runway Support Bracket is designed to be installed as a support bracket, offering time-saving benefits that decreases installation time and saves you money. This Surface Bracket makes adding a support bracket to Arlington's CableWay™ cable runway systems as simple as attaching it to a surface such as a wooden beam and using a drill to secure the bracket to the surface. This Bracket meets UL E161207 and CSA standards.
Product Quality
This product is manufactured by Arlington Industries who is a leading manufacturer of quality electrical products, communication products, home theater products, and more since 1949. This product is UL listed as a cable support system, designed for power or low voltage cable. Quickly attach this bracket to a surface and snap in a cable runway with ease.
Features
Features
- Secure, UL Listed as a cable support system
- For power or low voltage cable
- Support brackets attach directly to framing members, without structural damage
- Time saving system - no holes to drill through joists
- Brackets hold cables in place - open the bracket for easier cable insertion
- Slide-on trough protects and covers cable
- Install additional trough sections as needed and join them together with couplings
- Push-on end caps complete the job
Specifications
Specifications
| Item Number | Description | Dimension A | Dimension B | Dimension C | Dimension D |
|---|---|---|---|---|---|
| T205 | Wire Cable Tray in 5 ft. Lengths | 6.25 | 6.75 | 3.380 | 61.25 |
| T23A | Angle | 10.25 | 7.375 | 3.380 | 10.875 |
| T23C | Coupling | 6.5625 | 6.5625 | 6.5625 | 6.5625 |
| T23E | End Cap | 3.5 | 5.25 | 3.570 | 7.5 |
| T23F | Flat Surface Bracket | 7.875 | 10.875 | 3.600 | 11 |
| T23H | Support Bracket | 7.875 | 10.875 | 3.620 | 11 |
| T23T | Tee | 7.875 | 10.875 | 3.380 | 18.375 |
| T23W | Wall Mount Bracket | 10.25 | 7.375 | 5.970 | 10.875 |
Cable Management Diagram
Wire Fill Chart
Additional Information
CableWay™ Cable Support System
What’s In The Box
What’s In The Box
- Qty 1 - Cable Runway Support Bracket, CableWay
