Description

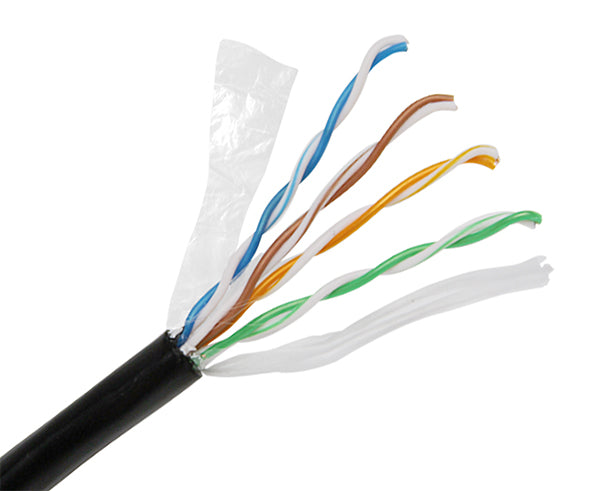

CAT5E Outdoor Bulk Ethernet Cable, Direct Burial Solid Copper UTP CMX, 24 AWG
Our Direct Burial CAT5E Ethernet Cable is perfect for outdoor voice, data, video, and security networking. Ideal for home, office, or campus wiring projects.
This Outdoor Direct Burial CAT5E Cable is designed for underground conduit installations. With 8 conductors of solid bare copper, HDPE insulation, and LDPE Jacket, it's tailored for outdoor LAN applications. Tested up to 350MHz.
Committed to delivering high-quality bulk Ethernet cables, our cable meets/exceeds CAT5E ANSI/TIA-568.2-D standards. RoHS Compliant and verified by external standards organizations.
Technical Diagram
Cat 5E Bulk Cable Options
| Stranded Copper UTP | Stranded Copper F/UTP | Solid Copper UTP | Solid Copper F/UTP | |||||
| General (CM) | General (CM) | General (CM) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) |
Cat 6 Bulk Cable Options
| Stranded Copper UTP | Stranded Copper F/UTP | Solid Copper UTP | Solid Copper F/UTP | Solid Copper S/FTP | ||||||
| General (CM) | General (CM) | General (CM) | Outdoor (CMX) | 24AWG Riser (CMR) | 23AWG Riser (CMR) | Plenum (CMP) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) | General (CM) |
Features
Features
- High-Performance Data Communications Cable
- CAT5E Outdoor Direct Burial, Outside Plant
- Suitable for 350MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
- Designed for Outdoor Direct Burial Installations
- Features a CMX Rated LDPE Jacket
- PET Tape Insulation
- Category-5E Unshielded Twisted Pair (UTP) Cable
- 4-Pair Easily Identified Color Striped Pairs
- 24 AWG Solid Bare Copper Conductors
- Excellent Attenuation and Crosstalk Characteristics
- Exceeds ANSI/TIA-568.2-D, ISO/IEC 11801, and YD/T1019 Specifications
- RoHS Compliant
- Sequential Length Markings on Jacket
- Supplied on a 1000' Wooden Spool
Specifications
Specifications
Additional Information
Additional Information
Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.
Cable Accessories Options
Our CAT5E Direct Burial Outdoor Unshielded Ethernet Cable is compatible with our:
What’s In The Box
What’s In The Box
QTY 1 - CAT5E Outdoor Direct Burial Ethernet Cable With a Black Jacket, 1000ft in Pull Box
