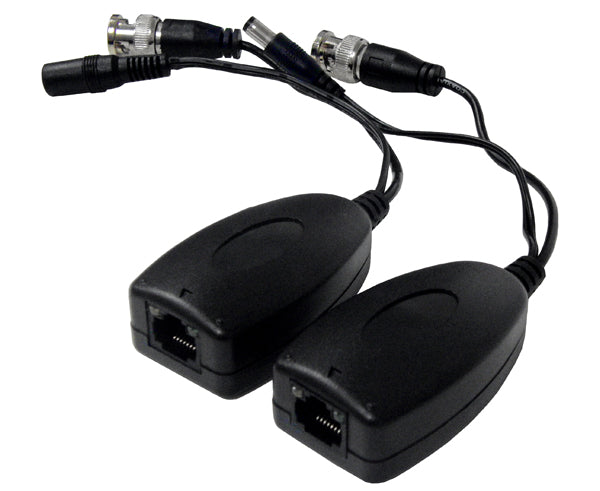

CCTV UTP Video Balun with Power Adapter
This pair of passive video baluns enables the transmission of real-time CCTV video signals and 12VDC / 24VAC power signals using cost-effective UTP (Unshielded Twisted Pair) over a single CAT 5 or CAT 6 cable. Featuring a mini-coax pigtail lead, it facilitates quick mounting onto cameras without additional coaxial wiring, fitting inside most domes conveniently. Working in pairs, these video baluns replace costly coaxial cables, transmitting color video up to 1,300 feet and power up to 750 feet. With built-in surge protection using TVS (Transient Voltage Suppressors), interference rejection, and low emissions, they allow video signals to coexist harmoniously with telephone, datacom, or low voltage power circuits.
Features
Features
- Simplifies project wiring and design by transmitting 1 Channel passive Video Signal + Power over Twisted pair cable or CAT 5 / 5E or CAT 6 cabling.
- Video is transmitted up to 1,300 feet; Power is transmitted up to 750 feet
- Full motion color video signal
- Mini male 6.3 inch BNC pigtail.
- 50dB crosstalk and noise immunity
- NTSC, PAL & SECAM support
- Compact size and easy installation
- Quick tool less installation in under one minute
- Compatible with all analog CCTV based systems
- Built in female power adapter also easily assists in transmitting 12VDC or 24VAC power along with Video saving time during installation
- Built in TVS / Lightning surge protection
- Built in interference rejection minimizing interference from nearby electrical products
- Power Connector: 2.1/5.5mm DC Jack
- Operation Temperature: -10-55 Degrees C
- Storage Temperature: -20-70 Degrees C
- Relative Humidity: 0-95% (Non-Condensing)
Specifications
Specifications
Voltage Drop Over Transmission Distance | |||
|---|---|---|---|
| Transmission Distance | Transmission Voltage (Output 12VDC/0.3A)BNC - F type Connector | Transmission Voltage (Output 12VDC/0.5A) | Transmission Voltage (Output 12VDC/0.5A) |
| 50m | 12.9V | 13.5V | 15.5V |
| 100m | 13.8V | 15.5V | 18.5V |
| 150m | 14.7V | 17V | 22V |
What's in the Box
What's in the Box
CCTV UTP Video Balun with Power Adapter
