Description

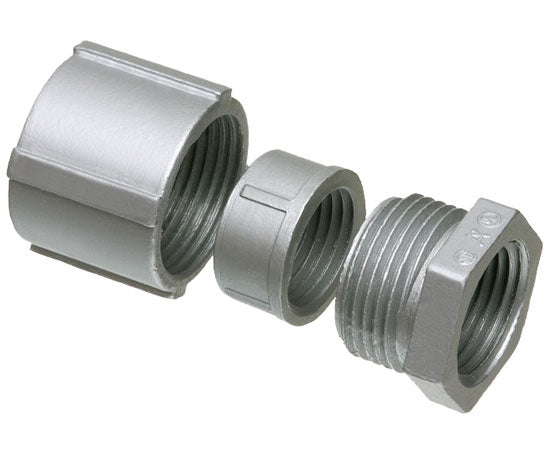

Coupling Rigid IMC, 3-Piece, Zinc Die-Cast
The Arlington 3-Piece Zinc die-cast Couplings are ideal for coupling together two conduits that cant be turned or moved. The 3 part system makes it easy to apply the two couplers to each end of the conduits and one to connect them together.
Specifications
Specifications
| Part Number | Trade Size | Dim A | Dim B | Dim C |
|---|---|---|---|---|
| NPNB-200 | 1/2" | 16 | 10.25 | 13.25 |
| NPNB-201 | 3/4" | 10.875 | 3.9375 | 7.375 |
| NPNB-202 | 1" | 10.875 | 3.9375 | 7.375 |
| NPNB-203 | 1-1/4" | 11 | 3.9375 | 10.875 |
| NPNB-204 | 1-1/2" | 11 | 3.9375 | 10.875 |
| NPNB-205 | 2" | 11 | 7.875 | 10.875 |
| NPNB-206 | 2-1/2" | 10.875 | 7.875 | 7.375 |
| NPNB-207 | 3" | 11 | 3.9375 | 10.875 |
| NPNB-208 | 3-1/2" | 10.875 | 10.25 | 7.375 |
| NPNB-209 | 4" | 10.875 | 3.9375 | 7.375 |
| NPNB-210 | 5" | 7.3 | 3.9375 | 7.375 |
| NPNB-211 | 6" | 9.7 | 7.875 | 7.375 |
What’s In The Box
What’s In The Box
- Qty 1 - 3-Piece Zinc die-cast Coupling Rigid IMC
