Description

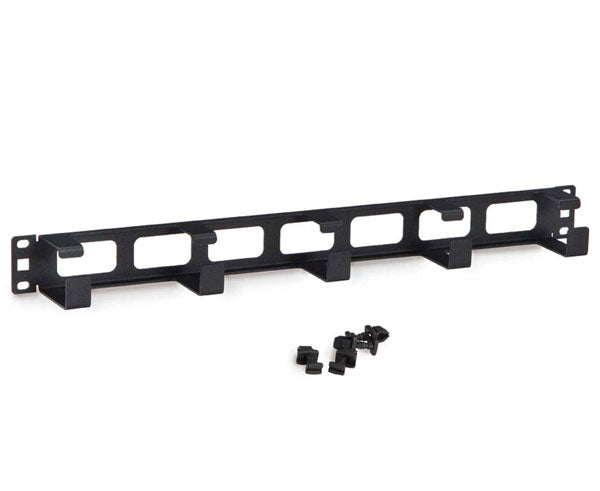

D-Ring Cable Manager
Our D-Ring Cable Manager provides a large supported area to organize and route cable bundles in 2-post racks, wall mount racks, server racks, and more. The seven large routing holes provide the support you need to run cables from the back of the rack to the front. This Cable manager can be mounted in two different positions, maximizing your cable management options. Face the D-rings toward the front of the rack to easily manage and support patch cables, or face them toward the back of the rack where the open design provides easy support of trunk cables.
Product Quality
The sturdy and reliable construction makes this a truly dependable and secure cable management solution. Whether you're routing cables from the front to the back of your cabinet or organizing and supporting patch cables, this 5X D-Ring Cable Manager will be an effective tool for your IT installation.
Durability & Strength
Our D-Ring Cable Managers are constructed from CRS (Cold Rolled Steel) with a black powder coated finish. Simply bundle cables through this Cable Manager to properly organize, and protection of your network cabling.
Features
Features
- Seven cable routing slots
- Five 3" x 1.75" D-rings
- 19" EIA compliant
- Made in the USA
- Limited Lifetime Warranty
- Five D-Rings - The 3" x 1.75" open D-rings provide a large supported area to organize and route cable bundles in 2-post racks, wall mount racks, server racks, and more.
- Seven Cable Cut Outs - The seven large routing holes provide the support you need to run cables from the back of the rack to the front.
- Various Mounting Positions - Cable manager can be mounted in two different positions, maximizing your cable management options. Face the D-rings toward the front of the rack to easily manage and support patch cables, or face them toward the back of the rack where the open design provides easy support of trunk cables.
- Toolless - Included with the cable manager are Toolless clips that snap into any cage nut style rail while eliminating the need for hardware. Standard mounting holes can be used in conjunction with rack screws on tapped rails.
Specifications
Specifications
| Depth | 2.26" |
| Width | 19" |
| Height | 1.72"(1U), 3.47"(2U) |
| Weight | 2.00 lbs.(1U), 2.50 lbs.(2U) |
| Material | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coat Finish |
Additional Information
Additional Information
Rack Accessories
Effective cable organization involves more than just the combination of cable raceway, ladder racks, and server racks. Sometimes it's the little things, like server rack accessories that bring the network components together. We stock an assortment of rack accessories including: horizontal and vertical cable managers, cable management duct covers, and cable routing banks, just to name a few.
To learn more about our Rack Accessories please visit our overview page. Kendall Howard's D-Ring Cable Manager can be combined with a wide array of products such as:
What's in the box?
What's in the box?
1U
- Qty 1 - 5 D-Ring Cable Manager
- Qty 2 - Toolless Panel Fasteners
2U
- Qty 1 - 5 D-Ring Cable Manager
- Qty 4 - Toolless Panel Fasteners
