Easy-Splice ALCU, CU and UF Splice Kits

SKU: NPNB-SKAB-0
Vendor
Primus Cable
Regular price
$28.19
Sale price
$28.19
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more
SKAB-0
SKAB-2
SKAB-250
SKCB-2
SKCB-8
SKDB
SKSS-3
SKUF

Description

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

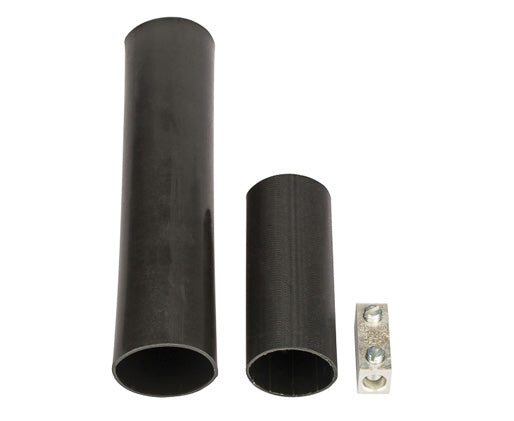

Easy Splice™ Direct Burial/Submersible Splice Kits with Heat Shrink

Features

Features

Copper Butt Splice Kits (SKCB)

  • Mechanical copper butt splice and a heavy wall heat shrink tubing to create a fully insulated splice for copper conductors only.

UF Cable Splice Kit (SKAB)

  • For simplified splicing of UF cable designed with heavy wall heat shrink with sealant.
  • This kit will accommodate 14/3 through 8/3 with ground UF cable and create a direct burial splice. Contains one four-position connector.

Dual Rated Butt Splice Kits (SKDB)

  • Mechanical dual rated splice and matched heavy wall heat shrink tubing to create an insulated splice for copper and/or aluminum cables.

UF Stretcher Kit (SKUF)

  • Eliminates the need for using two connectors and a short piece of cable when repairing damaged UF cable.
  • Includes one 11.5” connector that will accommodate 14/3 without GRD minimum and 8/3 with GRD maximum. 600 Volt, 105°C.
  • Utilizes heavy wall shrink with sealant for a quick and reliable repair.

Specifications

Specifications

Part No. Range
NPNB-SKCB-8 14 to 8 AWG
NPNB-SKCB-2 8 to 2 AWG
NPNB-SKAB-2 8 to 2 AWG
NPNB-SKAB-0 6 to 1/0 AWG
NPNB-SKAB-250 1/0 AWG to 250 MCM
NPNB-SKDB 14/3 to 8/3
NPNB-SKUF 14/3 to 8/3
  • UL Listed.
  • Temperature Rating: 105 °C. 600V Max

What's In The Box

What's In The Box

  • Qty 1 - Easy Splice™ ALCU, CU & UF Splice Kit

Description

Easy Splice™ Direct Burial/Submersible Splice Kits with Heat Shrink

Features

Features

Copper Butt Splice Kits (SKCB)

  • Mechanical copper butt splice and a heavy wall heat shrink tubing to create a fully insulated splice for copper conductors only.

UF Cable Splice Kit (SKAB)

  • For simplified splicing of UF cable designed with heavy wall heat shrink with sealant.
  • This kit will accommodate 14/3 through 8/3 with ground UF cable and create a direct burial splice. Contains one four-position connector.

Dual Rated Butt Splice Kits (SKDB)

  • Mechanical dual rated splice and matched heavy wall heat shrink tubing to create an insulated splice for copper and/or aluminum cables.

UF Stretcher Kit (SKUF)

  • Eliminates the need for using two connectors and a short piece of cable when repairing damaged UF cable.
  • Includes one 11.5” connector that will accommodate 14/3 without GRD minimum and 8/3 with GRD maximum. 600 Volt, 105°C.
  • Utilizes heavy wall shrink with sealant for a quick and reliable repair.

Specifications

Specifications

Part No. Range
NPNB-SKCB-8 14 to 8 AWG
NPNB-SKCB-2 8 to 2 AWG
NPNB-SKAB-2 8 to 2 AWG
NPNB-SKAB-0 6 to 1/0 AWG
NPNB-SKAB-250 1/0 AWG to 250 MCM
NPNB-SKDB 14/3 to 8/3
NPNB-SKUF 14/3 to 8/3
  • UL Listed.
  • Temperature Rating: 105 °C. 600V Max

What's In The Box

What's In The Box

  • Qty 1 - Easy Splice™ ALCU, CU & UF Splice Kit
