Description

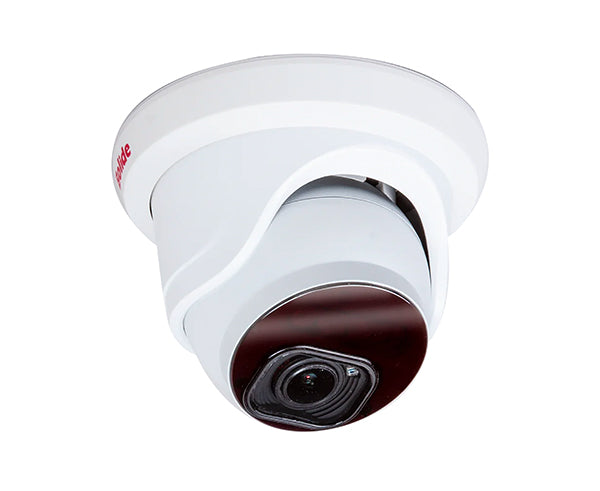

5MP Motorized Varifocal Outdoor Eyeball Camera with AI
The new Motorized Varifocal Outdoor Eyeball Camera with AI features up to 5mp of Ultra HD Resolution, combined with the Next Generation of compression standards High Efficiency Video Coding (HEVC/H.265)- which allows for bitrates nearly half those of other cameras utilizing older H.264 compression technology. This camera also is equipped with a 2.8-12mm Motorized Varifocal Lens and a IP66 IR Eyeball Camera. iPac AI Enabled with Facial Recognition System.
Features
Features
- 5MP Ultra HD Resolution
- NDAA Compliant
- H.265 Compression
- 2.7 – 13.5mm Motorized Varifocal Lens
- IR Up to 135 Feet
- IP67 Rated Weatherproof Housing
- ONVIF Compliant
- P2P Support
Specifications
Specifications
| Mechanical Specifications | |
|---|---|
| Image Sensor | 1/3” Progressive Scan CMOS |
| Minimum Illumination | 0.002Lux @(F1.2,AGC ON) 0 Lux with IR |
| Shutter Speed | 1/5 s – 1/20,000 s |
| Lens Type | 2.7 – 13.5mm |
| Lens Mount | M12 / M14 |
| Day and Night | IR Cut Filter with Auto Switch |
| Dynamic Range | Digital WDR |
| Digital Noise Reduction | 3D DNR |
| Compression | |
| Video Compression | H.265 / H.264 |
| Image Resolution | 5MP (2592 X 1944) |
| Video Bit Rate | 8Kbps ~ 8Mbps |
| Image | |
| Max Resolution / FPS | Main Stream 5MP (2560 X 1944), 4MP (2592 X 1520), Substream D1 (704 x 480),VGA (640 x 480),QVGA (320 x 240) Mobile Stream VGA (640 x 480), QVGA (320 x 240) 50Hz: 25FPS @ 5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA 60Hz: 30FPS @ 5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, and adjustable browser |
| Day and Night Switch | Auto / Schedule / Triggered by Alarm In |
| Interface | |
| System Compatibility | ONVIF ( Profile S/G/T ) |
| Interface | 1 RJ45 10M / 100M Ethernet Interface |
| IR Distance | Up to 135 ft |
| POE | Built-In POE |
| Security | Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering |
| Video Analytics / AI | Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection; Cross and People Counting; Camera obstruction; Region of interest. DEEP LEARNING: Face Detection / Face Recognition / Human detection / Vehicle detection |
| Electrical | |
| Power Supply | 12 VDC ± 10%, POE (IEEE802.3af) |
| Power Consumption | 3.5W / 4.5W ( IR OFF ) 7.5W / 9.5W ( IR ON ) |
| Operating Temp. | -40 °F - 140 °F Humidity 95% or less (non-condensing) |
| Physical | |
| Dimensions | 9.43" x 3.4" |
| Net Weight | 1.94 lb |
| Weather-Rating | IP67 Rated |
Additional Information
Additional Information
AI Features:- Cross Counting
- Crowd Density Detection
- Face Detection
- Heat Map
- Human Detection
- Stationary Object Detection(SOD)
- Line Crossing Detection
- Perimeter Intrusion Detection
- Queue Length Detection
- Rare Sound Detection (Baby Crying Sound)
- Rare Sound Detection (Dog Barking Sound)
- Rare Sound Detection (Gunshot Sound)
What’s In The Box
What’s In The Box
- Qty 1 - 5MP Motorized Varifocal Outdoor Eyeball Camera with AI
