Description
Fiber Optic Drop Cable Slitter

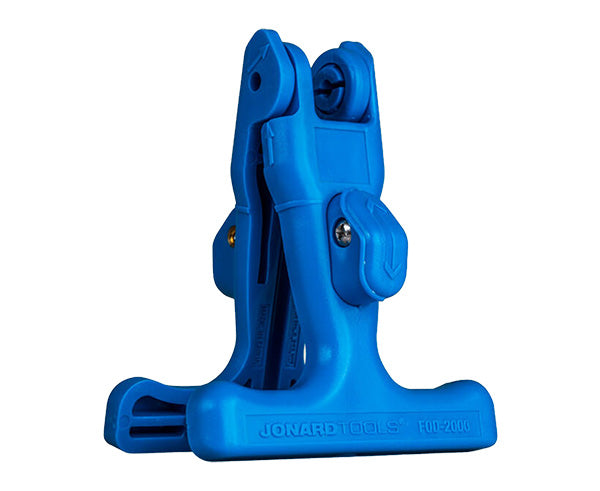

The Jonard Tools PATENTED and award-winning FOD-2000 Fiber Optic Drop Cable Slitter simplifies the slitting of drop cable jackets at mid span or end sections and is perfect for FTTH technicians working with flat fiber drop cables.
Features
Features
- Designed to slit 0.250” flat drop cables as well as various other cables such as Super Essex Communications Series 6U, 6T tonable, W7, W7 tonable, 6U 24F, and 6T 24F tonable flat drop cables
- Slits flat cables 0.305" to 0.350" wide and 0.155" to 0.185" high, typically found in Corning SST-Drop flat cables with a jacket thickness of 0.03” to 0.04”
- Slits both sides of the jacket simultaneously, allowing easy access to fiber or strength members
- Can separate the jacket and strength members from the buffer tube leaving fiber undamaged
- Two reversible blades come preassembled and can be reversed when worn for double life
- Replacement Blades (FOD-RB25) can be purchased separately
Specifications
Specifications
| Application | Flat Cable Slitting |
|---|---|
| Cable Type | Flat Drop Jacket, Super Essex Communications Series 6U, 6T tonable, W7, W7 tonable, 6U 24F, and 6T 24F tonable flat drop cables |
| Maximum Cable Width | 0.350" (8.89 mm) |
| Dimensions | 4.5 in x 3.5 in x 1.63 in (11.43 cm x 8.89 cm x 4.13 cm) |
| Weight | 0.17 lb (77.18 g) |
| UPC # | 811490011960 |
Additional Information
Additional Information
What’s In The Box
What’s In The Box
- Fiber Optic Drop Cable Slitter
