Description
Comparable to Corning's CSH-03U
This fiber patch panel is only compatible with either our FB25-4000STP24 splice tray or FB25-3401STP36, which are sold separately. To find out more, give us a call or email us.
Description

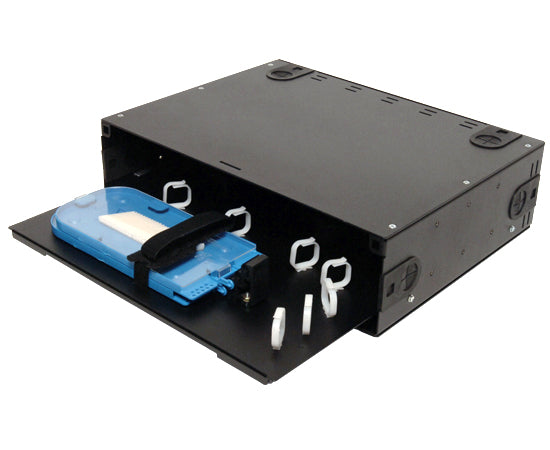

Fiber Patch Panel, Slide-Out Splice Shelf, 3RU, Holds 4 Splice Trays
The FB23-3927RSS4 is a 3 Rack Unit (3RU) in-rack splice shelf designed to support up to 96 individually spliced fibers. The fiber housing has a slide out master panel that allows for accessing splice trays for ease in installation and maintenance. The fiber enclosure supports up to four 24 fiber splice trays. Trays are hinged to allow for accessing splices in trays beneath to eliminate the requirement for tray removal. The FB23-3927RSS4 is one of a family of units that support fiber splicing and termination in rack mount applications. Black, Aluminum.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Splice trays sold separately.
Features
- Provides storage for up to 4 splice trays.
- Supplied with mounting hardware for 19" or 23" mounting.
Specifications
Specifications
Capacity
Splice Trays (Sold Separately):
(4) FB25-4000STP24 24 Fiber Splice Trays
or (4) FB25-3401STP36 36 Fiber Splice Trays
Dimensions
Depth: 14"
Height: 5.25"
Width: 17"
Weight: 7.25 lbs
Physical Properties
Color: Black
Material: 0.060" Powder Coated Aluminum
Spec Sheet
