Description

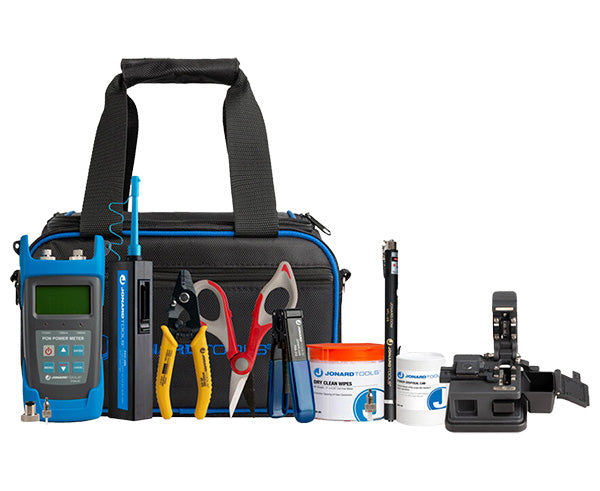

FTTH Prep Kit w/ PON Power Meter
The Jonard Tools TK-185PON FTTH Prep Kit with PON Power Meter offers cleaning and preparation products for use on 1.25 mm and 2.5 mm connector end-faces and bulkhead adapters.
Features
Features
- Fiber Stripper strips the 1.6-3 mm fiber jacket, 600-900 micron buffer coating, and 250 micron cable down to expose the 125 micron glass fiber
- Fiber Cleaver cleaves either 900 µm buffered or 250 µm coated fiber, perfectly suited for mechanical splicing and quick field termination of fiber connectors
- Wet Wipes made with a nonabrasive residue-free 91% isopropyl alcohol solvent for cleaning the end-faces quickly and easily
- Visual Fault Locator identifies breakpoints, leaks, poor connections, and stress points in fiber optic cable
- Enclosed in our H-22 Rugged Nylon Carrying Case for safety and convenience
Specifications
Specifications
| Dimensions | 10.5" x 8.5" x 6" (26.67 cm x 21.59 cm x 15.24 cm) |
|---|---|
| Weight | 1.64 lb (0.742 kg) |
| Weight | 5 lb (2270 g) |
| UPC # | 810053350720 |
What's In The Box?
What's In The Box?
Set includes
| FCC-250 | Fiber Connector Cleaner, 2.5 mm |
| FC-500 | Precision Fiber Cleaver |
| JIC-375 | Fiber Optic Stripper, Three Hole |
| DW-90 | Dry Wipes for Cleaning Fiber |
| H-22 | Rugged Carrying Case with Straps |
| FDS-312 | Fiber Drop Cable Stripper |
| VFL-150 | Visual Fault Locator Kit |
| JIC-186 | Wire & Kevlar® Cutting Shears |
| FDC-66 | Fiber Scraps Disposal Can |
| PON-50 | Passive Optical Network Power Meter for BPON/EPON/GPON |
