Description

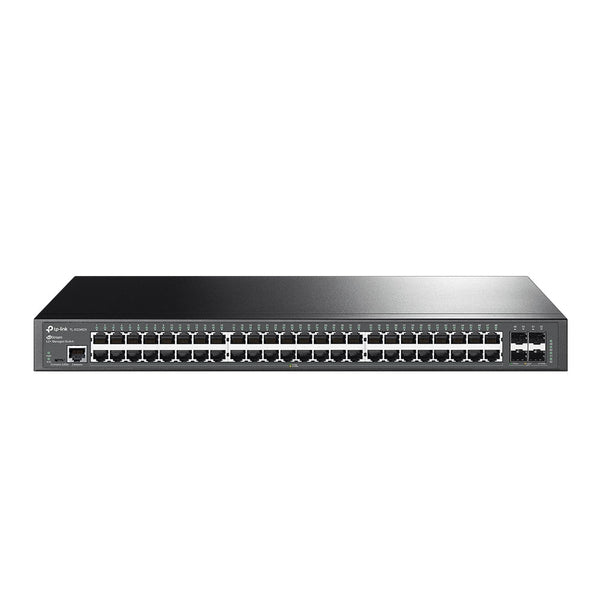

SG3452X JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Enterprise Switch with 10G Uplink
4 x 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lighting-fast connections to server and other switches are easily built.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to the appropriate subscribers, cutting unnecessary traffic. IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discovery guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Features
Features
- Full Gigabit Ports: 48× gigabit RJ45 ports and 4× 10GE SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Specifications
Specifications
| HARDWARE FEATURES | ||
|---|---|---|
| Interface | 48 x 10/100/1000 Mbps RJ45 Ports 4 x Gigabit SFP Slots 1 x RJ45 Console Port 1 x Micro-USB Console Port | |
| Fan Quantity | Fanless | |
| Power Supply | 100-240 V AC ~50/60 Hz | |
| Dimensions (W x D x H) | 17.3 x 8.7 x 1.7 in (440 x 220 x 44 mm) | |
| Mounting | Rack Mountable | |
| Max Power Consumption | 32.72 W (110V/60Hz) | |
| Max Heat Dissipation | 111.65 BTU/h (110 V/60Hz) | |
| PERFORMANCE | ||
|---|---|---|
| Switching Capacity | 176 Gbps | |
| Packet Forwarding Rate | 130.9 Mpps | |
| MAC Address Table | 16 K | |
| Packet Buffer Memory | 12 Mbit | |
| Jumbo Frame | 9 KB | |
| GENERAL | ||
|---|---|---|
| Certification | CE, FCC, RoHS | |
| Package Contents | TL-SG3452X Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet | |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. | |
| Environment | Operating Temperature: 0–45 ℃ (32–1113 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing | |
Additional Information
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our switches please visit our overview page. Our Switches can be combined with a wide array of products.
What's In The Box
What's In The Box
- Qty 1 - TL-SG3452X
- Qty 1 - Power Cord
- Qty 1 - Installation Guide
- Qty 1 - Rackmount Kit
- Qty 4 - Rubber Feet
