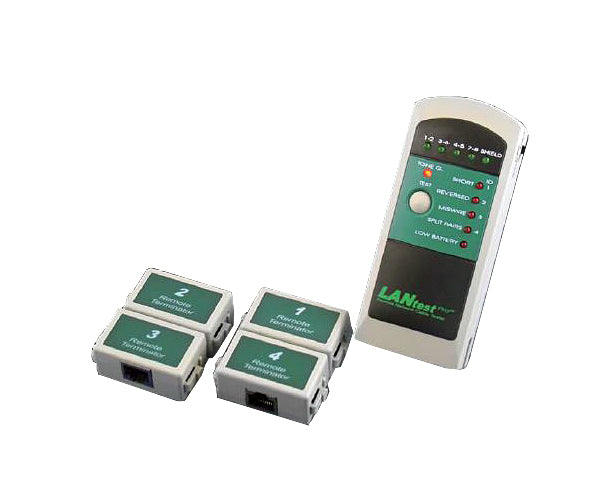

LAN Tester, LANtest Pro with 4 Remotes
The LANtest Pro is a small hand held LAN tester that enables the user to quickly read the status of Ethernet twisted pair cables. It tests for faults such as open circuit, shorts, crossed pairs, reversed pairs and split pairs in seconds. The Tone Generator function of this LAN tester can send a signal through your installed cables and the probe can then trace to locate the fault.
Features
Features
- Tests for wiring faults of open, short, reversal, crossed and split pairs
- Split pair fault detection at minimum 40cm cable length
- Verification of shield integrity
- Specially designed remote units that enables one person to test installed cables
- Easy to read fault display and high speed testing
- Debug mode and detailed fault identification results
- Auto sleep mode and power off switch to decrease power
- Low battery indicator
Specifications
Specifications
| SPECIFICATIONS | |
|---|---|
| Display | LED |
| Connector Type | RJ-45 |
| Operating Temperature | 0 to 40ºC |
| Storage Temperature | –20 to 60ºC |
| Humidity | 95% relative humidity (non-condensing) |
| Master Dimensions | 124 x 55 x 30mm |
| Remote Dimensions | 29 x 55 x 22mm |
| Master Weight | 90 g |
| Remote Weight | 90 g |
| Power Source | 1.5VAAAx4 |
What’s In The Box
What’s In The Box
- Qty 1 - LANtest Pro, Lan Tester with 4 Remotes
