NEMA Mechanical Connectors, Aluminum, Dual Rated, Panelboard Lugs

SKU: NPNB-250L2
Primus Cable
$13.10
$13.10
$0
Sold out
Quantity must be 1 or more
250L2
2-250L2
3-250L2/L4
350L2
2-350L2
3-350L2/L4
600L2
2-600L2
3-600L2/L4
800L2
2-800L2
3-800L2/L4
1000L2
2-1000L2
3-1000L2/L4

Description

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

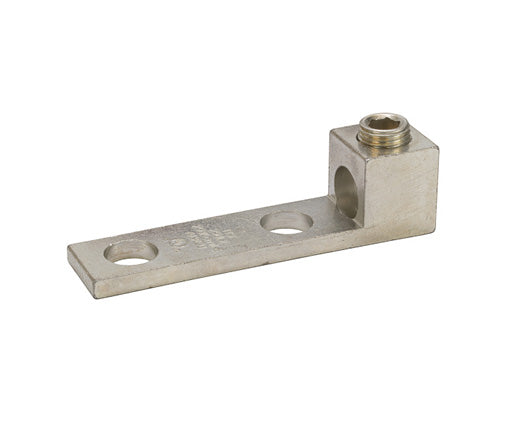

Mechanical Connectors Aluminum, Dual Rated, Panelboard Lugs, L Series

Primus Cables’ Mechanical Connectors are Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance.

Features

Features

  • Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness.
  • Made of 6061T-6 aluminum alloy.
  • Electro-tin plated for low contact resistance.
  • For use with copper or aluminum conductors.
  • All hole spacing is NEMA standard of 1.750”.

Specifications

Specifications

  • cULus Listed Wire Connector.
  • UL486A/B Listed. AL9CU
  • Temperature Rating: 90 °C.
  • Voltage: 600V max. (2000V ma. per UL486B).
Part# Wire Range MTG. Bolt Size (in.) MTG. Hole Dia. (in.) Length (in.) Height (in.) Width (in.)
NPNB-250L2 250 MCM-6 AWG 1/2 0.560 4.310 0.880 1.380
NPNB-2-250L2 (2) 250 MCM-6 AWG 1/2 0.560 3.880 1.690 1.020
NPNB-3-250L2/L4 (3) 250 MCM-6 AWG 1/2 0.560 3.880 2.500 1.020
NPNB-350L2 350 MCM-6 AWG 1/2 0.560 4.310 0.990 1.380
NPNB-2-350L2 (2) 350 MCM-6 AWG 1/2 0.560 4.250 1.920 1.130
NPNB-3-350L2/L4 (3) 350 MCM- 6 AWG 1/2 0.560 4.250 2.920 1.130
NPNB-600L2 600 MCM -2 AWG 1/2 0.560 4.650 1.380 1.510
NPNB-2-600L2 (2) 600 MCM-2 AWG 1/2 0.560 4.650 2.406 1.510
NPNB-3-600L2/L4 (3) 600 MCM-2 AWG 1/2 0.560 4.650
 3.930 1.510
NPNB-800L2 800-350 MCM 1/2 0.560 4.750 1.440 1.690
NPNB-2-800L2 (2) 800-350 MCM 1/2 0.560 4.750 2.750 1.690
NPNB-3-800L2/L4 (3) 800-350 MCM 1/2 0.560 4.750
 4.060 1.690
NPNB-1000L2 1000-500 MCM 1/2 0.560 4.940 1.690 1.880
NPNB-2-1000L2 (2) 1000-500 MCM 1/2 0.560 4.940 3.190 1.880
NPNB-3-1000L2/L4 (3) 1000-500 MCM 1/2 0.560 4.940 4.690 1.880

What's In The Box

What's In The Box

  • Qty 1 - Mechanical Connector
