One-Click TM Fiber Cleaning Pens, Cleans Adapters and Connectors, 1.25mm/2.5mm

SKU: FB26-1792-FCP
Vendor
AFL
Regular price
$57.50
Sale price
$57.50
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more
SC, ST 1.25mm
LC/MU 2.5mm

Description

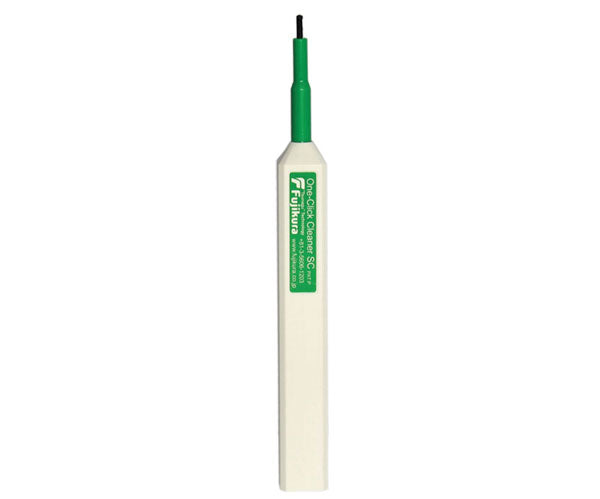

One-Click™ Fiber Cleaning Pens

The One-Click™ Fiber Cleaning Pen is a must have for field technicians working with fiber optic cable. Utilizing mechanical push action to advance optical cleaning tape, the cleaning tip is also rotated to ensure proper cleaning. Just insert the fiber cleaning pen into an adapter or connector and push until audible click is heard. This device is cost effective, small enough to fit into shirt pocket, and is easy on the wrist to use. Buy our One-Click™ Fiber Cleaning Pens, a little routine maintenance can save a lot of time and money in the long term.

Fiber Optic Cleaning

Improper cleaning is the top cause for network failures. The tolerance to dirt or contamination on the ends of the ferrules of a connector is near zero. Network operators claim that 15-50% of all network problems can be traced to dirty connectors causing connection problems.

Mitigate the risk of fiber optic contamination with fiber optic cleaners, fiber cleaning pens, and cleaning wipes. These handy fiber cleaners can remove contaminants like: dust, dirt, oils, film residue, and solvent coating.

Airborne dirt particles are about the size of the core of SM fiber and are usually silica based - they may scratch PC connectors if not removed! Patch panels have mating adapters that can become contaminated if left open to the air or scrape off foreign particles under repeated usage. We recommend you always keep dust caps on connectors, bulkhead splices, patch panels or anything else that is going to have a connection made with it.

Features

  • Cleans 2.5mm and 1.25mm fiber-optic connectors, adapters, and jumpers
  • Ergonomic, comfortable design with single action cleaning
  • 500 cleaning cycles
  • Effective on a variety of contaminants including dust and oils
  • Automatic advance ensures each clean is performed with fresh cleaning tape

Benefits

  • Routine cleaning of fiber connectors, adapters, and patch cords helps maintain peak performance levels of network
  • Cost effective
  • Ergonomic

Applications

  • Clean 2.5mm and 1.25mm fiber optic connectors, adapters, and patch cables
  • The 1.25mm Fiber Cleaning Pen is designed to clean LC and MU connectors.
  • The 2.5mm Fiber Cleaning Pen is designed to clean SC, ST and FC connectors with UPC and APC polishes types.

Specifications
