Description
Features
Features
- Includes APC/FC Adapters and APC/SC Adapters to directly connect to UPC/PC FC and SC fiber connectors
- Analyzes voice, data, and video signals in BPON/EPON/GPON FTTx systems
- Concurrently measures 1310 nm Upstream Burst Signals and 1490/1550 nm Downstream Signal Measurements anywhere in the network
- Three pass, warning, and fail LED indicators to allow you to quickly assess your network's power level
- Supports 1310 nm Upstream Burst Signal and 1490/1550 nm Downstream Signal Measurements
- USB port allows quick transfer of data, and up to 1,000 measurement items can be saved at once
- Optional 10 minute auto-off can be activated or deactivated
- Shatter-resistant sleeve protects it from accidental falls or other damage
- Included software allows you to set the thresholds, transfer data, and calibrate the wavelength from your PC

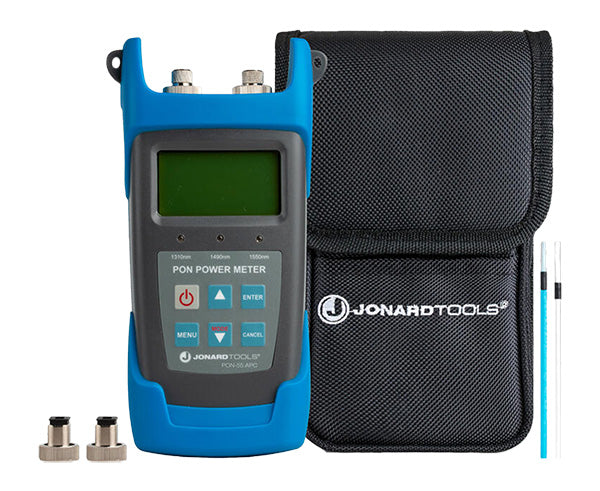

- Includes: PON Power Meter, (2) APC/FC Adapters, (2) APC/SC Adapters, Carrying Case, Instruction Manual, Mini USB Cable, and (3) AA Batteries
Specifications
Specifications
| Network Types | BPON/EPON/GPON |
|---|---|
| Connector Types | FC/SC (APC) |
| Wavelengths | 1310 nm, 1490 nm, 1550 nm |
| Measurement Range | -35 dBm～+10 dBm @ 1310/1490 nm, -35dBm～+10dBm @ 1550 nm |
| Max Output Power | 15 dBm @ 1310/1490/1550 nm |
| Detector Type | InGaAs |
| Connatural Uncertainty (dB) | ±0.5 dB |
| Linearity (dB) | ±0.1 dB |
| Batteries | (3) 1.5V AA |
| Battery Life | 90 Hours |
| Operation Temperature | -10℃～60℃ |
| Dimensions | 6.25" x 9" x 2.8" (15.88 cm x 22.86 cm x 7.11 cm) |
| Tool Weight | 0.93 lb (0.423 kg) |
| Weight | 0 lb (0 g) |
| UPC # | 810053350348 |
What's In The Box?
What's In The Box?
- Qty 1 - Passive Optical Network Power Meter for BPON/EPON/GPON, APC
