Description

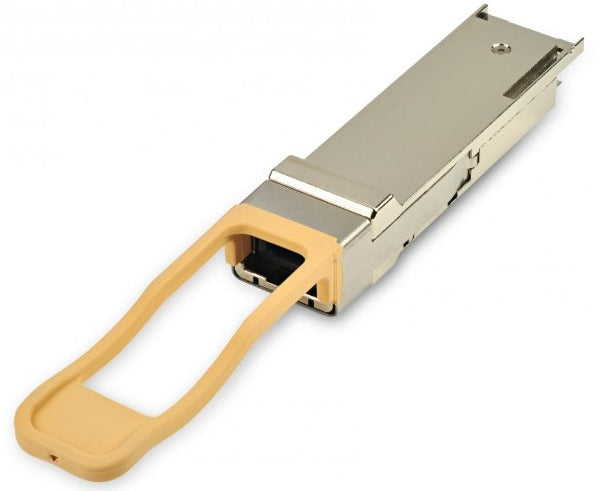

Cisco Compatible MPO/MTP® OM4 40G QSFP+ Transceiver Module
This 40G QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. This Transceiver has 4 independent Full-duplex channels with up to 10.52Gbps data rate per channel. Transceiver can extend the transmission over 150m on OM4 multi-mode ribbon fiber optic cable.
Features
- 4 independent full-duplex channels up to 10.5Gbps data rate per channel.
- MTP®/MPO optical connector.
- Capable of over 150m transmission on OM4 multi-mode ribbon fiber.
- Single +3.3V power supply.
- Operating temperature of 0ºC ~ 70ºC
Standards & Compliance's
- QSFP+ MSA Compliant
- RoHs Compliant
- Compliant with IEEE802.3ba
- Compliant with QSFP+ MSA: SFF-8436
Applications
- 40G Ethernet
- Infiniband 4x SDR DDR QDR
- 40G Telecom Connections
