RG6 Coaxial Cable, Dual Shielded Riser CMR, 18 AWG BC, 100% Bonded AL Foil + 60% AL Braid, Black or White, 1,000ft

SKU: CC1-1045BK-6B
Vendor
Primus Cable
Regular price
$101.00
Sale price
$101.00
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more
Black
White

Description

RG6 Dual Shield Riser CMR Coax Cable for Digital HDTV, CATV and Digital Satellite

RG6 coaxial cable is widely used for satellite, digital CATV, and HDTV television networking due to its superior shielding and signal retention capabilities. It surpasses RG59 coaxial cable in both jacketing density and conductor thickness, enabling double the data transfer speed. To further enhance signal retention and ensure crystal-clear digital pictures, our RG6 coaxial cable comes in dual shield and quad shield options. The RG6 Coaxial Cable is designed with a 75-ohm impedance and undergoes sweep testing at 3GHz

This cable is compatible with our CN3-1594-59 BNC RG59 and CN2-7887-RG6 F-Type RG6 Connectors.

Applications

Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.

Product Quality

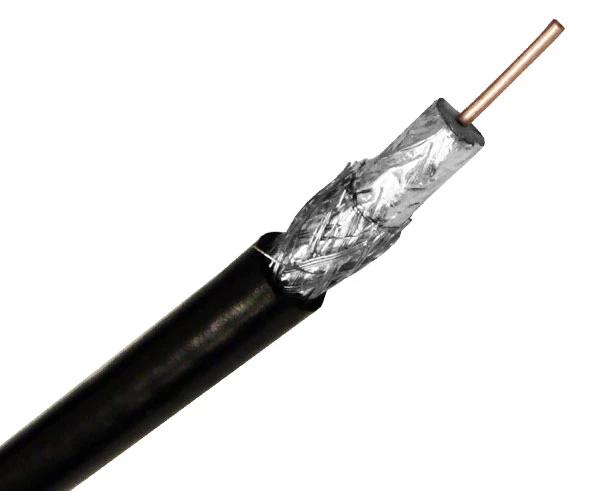

Our high-quality RG6 Coaxial Cable consists of an 18 AWG solid Bare Copper (BC) inner conductor that transmits the signal. It is wrapped in dielectric polyethylene insulation. This RG6 dual-shielded Riser CMR coaxial cable comes with bonded aluminum foil and 60% aluminum braided shield. This is covered with a flame-rated PVC jacket. Our cables are UL-listed and RoHS Compliant. This high-grade shielded RG6 coaxial cable is well-suited for vertical CATV installations.

Where to use Coaxial Cable

A broad range of applications exist for coaxial cabling. It is widely used with home entertainment equipment such as Cable Television (CATV), Digital HDTV, Audio / Video, and Digital Satellite. It is also used with security cameras and GPS Systems.

Features

Features

  • High-grade RG6, RG6U Coaxial Cable
  • Riser CMR Jacket
  • Suitable for Digital HDTV, Digital Satellite, Cable Television CATV, and Audio/Video Applications
  • Sweep-Tested to 3GHz
  • 75 Ohm Impedance
  • 18 AWG Solid Bare Copper (BC)
  • 100% Aluminum Foil Bonded
  • 60% Aluminum Braid Shield
  • UL Listed
  • CMR, CL2 and RoHS Compliant
  • FR-PVC Outer Jacket Material
  • Black Jacket is UV-Resistant
  • Supplied in Pull Boxes
  • Sold in 1000' Lengths

Specifications

Specifications


Physical Construction

Inner Conductor Material Solid Bare Copper
Inner Conductor Size 18 AWG
Dielectric Material Foamed PE
Outer Jacket Material FRPVC & UV Resistance
Shielding AL Foil + 60% AL Wire Braiding

Electrical Characteristics

Nominal Impedance 75 Ohm
Nominal Velocity of Propagation 84%
Nominal Capacitance 15.8 Pf/ft
Nominal Conductor DC Resistance DCR @ 20 °C 21.1 Ohm / 1 km
Maximum Operating Voltage-UL N/A

Mechanical Characteristics

Operating Temperature -20°C +60°C

Additional Information

Additional Information

To learn more about our Bulk RG6 Coaxial Cable here is a link to a page containing more information on our premium RG6 Coaxial Cable.

What's in the Box

What's in the Box

  • RG6 Dual Shield CMR Coaxial Cable, 18 AWG BC, 60% AL Braid, 1,000', Black or White
