Description

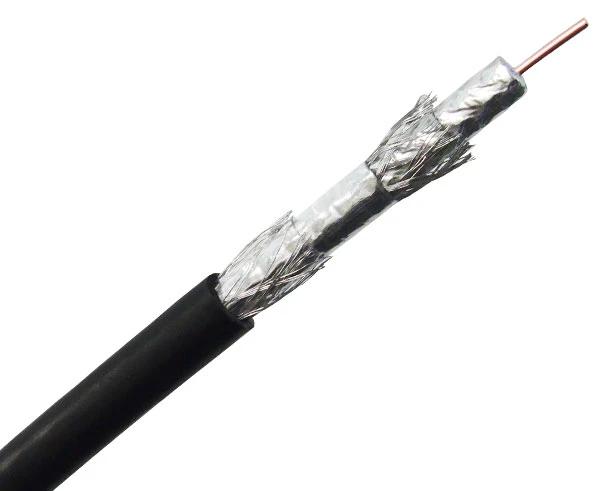

RG6 Quad Shield Riser CMR Coax Cable for Digital HDTV and CATV
RG6 coaxial cable excels in satellite and HDTV networking, with superior shielding for optimal signal retention. Its denser jacket and thicker conductor enable double the data transfer speed compared to RG59. Choose from RG6 dual shield or quad shield options for impeccable digital picture quality, with a maximum impedance of 75 ohms and 3GHz sweep testing.
This cable is compatible with our CN3-1594-59 BNC RG59 and CN2-7887-RG6 F-Type RG6 Connectors.
Applications
Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial cable also provides protection for the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.
Product Quality
Our premium RG6 Coaxial Cable features an 18 AWG solid Copper-Clad-Steel inner conductor, ensuring efficient signal transmission. Encasing this conductor is a dielectric polyethylene insulation, complemented by 60% + 40% aluminum braided shielding. This robust construction is further protected by a flame-rated PVC jacket. Rest assured, our cables are UL-listed and compliant with RoHS regulations.
Where to use Coaxial Cable
A broad range of applications exist for coaxial cabling. It is widely used with home entertainment equipment such as Cable Television (CATV), Digital HDTV, Audio / Video, and Digital Satellite. It is also used with security cameras, and GPS Systems.
RG6 Coaxial Cable Options | |||||||||
|---|---|---|---|---|---|---|---|---|---|
CCTV | CATV | ||||||||
| Single Conductor | Siamese | Single Conductor | Siamese | Single Conductor | Single Conductor | Single Conductor | Single Conductor | Single Conductor+ Messenger | Single Conductor |
| Solid BC (CM) | Solid BC (CM) | Plenum BC (CMP) | Plenum Siamese BC (CMP) | Plenum BC (CMP) | Plenum CCS (CMP) | Solid BC (CMR) | Solid CCS (CMR) | Solid CCS (CMR) | Outdoor CCS (CMX) |
Features
Features
- High-grade RG6, RG6U Coaxial Cable
- Riser CMR Jacket
- Suitable for Digital HDTV, Digital Satellite, Cable Television CATV, and Audio/Video Applications
- Sweep-Tested to 3GHz
- 75 Ohm Impedance
- 18 AWG Solid Copper Clad Steel (CCS)
- Aluminum Foil Bonded
- 60% + 40% Aluminum Braid Shield
- UL-Listed
- RoHS Compliant
- Supplied in Pull Boxes
- Sold in 500' and 1000' Lengths
- FR-PVC Outer Jacket Material
Specifications
Specifications
Physical Construction | |
|---|---|
| Inner Conductor Material | Solid Copper Clad Steel (CCS) |
| Inner Conductor Size | 18 AWG |
| Insulation Material | Foamed PE |
| Shield Material | AL Foil Bonded + 60% AL Wire Braiding AL Foil Bonded + 40% AL Wire Braiding |
| Jacket Material | FRPVC & UV Resistant |
Electrical Characteristics | |
|---|---|
| Capacitance | N/A |
| Impedance | 75 Ohm |
| Nominal Velocity of Propagation | 85% |
Mechanical Characteristics | |
|---|---|
| Operating Temperature | -20°C to + 60°C |
Additional Information
Additional Information
To learn more about our RG6 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG6 Bulk Coaxial Cable.
What's in the Box
What's in the Box
- RG6 Quad Shield CMR Riser Coaxial Cable, 18 AWG CCS, 60%+40% AL Braid, 1,000' and 500', Black or White in Pull Box
