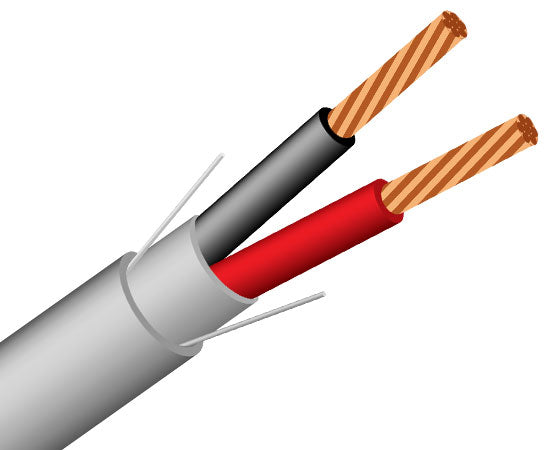

The 20/2 Riser Security Alarm Cable boasts two 20-gauge stranded copper conductors tailored for security, intercom, power limited controls, and sound/audio systems. With a 7-strand bare copper construction, shielded by a CL3R rated gray jacket, it's proudly made in the USA. Available in 1,000 ft increments.
Features
Features
20 AWG 2 conductors
7 stranded bare copper conductors
PVC insulation
AL foil shielded
PVC jacket
Sequential footage marking
CL3R rated jacket
ETL listed
RoHS compliant
NEC articles
22-16 AWG: FPLR/760, CMR/800, CL3R, CL2R/725
14-12 AWG: FPLR, CL3R
Residential or commercial applications
Security systems
Intercom systems
Sound/audio systems
Power-limited controls
Specifications
Specifications
Physical Construction
Inner Conductor
Stranded Bare Copper
Conductor Size
20 AWG
Insulation
PVC
Nominal OD
3.61mm
Outer Jacket Diameter
.38mm
Jacket
Low Smoke PVC
Jacket Color
Gray
Number of Strands
7
Inner Conductor Diameter
1.2mm
Electrical Characteristics
Temperature
75°C
Voltage Rating
300V
Center Resistance
21.20 (Ω/km)
Additional Information
Standards
ETL | RoHS | CMP
Applications
Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing
20 AWG 2C (ETL) 725/CL3P 800/CMP (VID:###) XXXX FT
Important Notes
The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.
