Description
Description

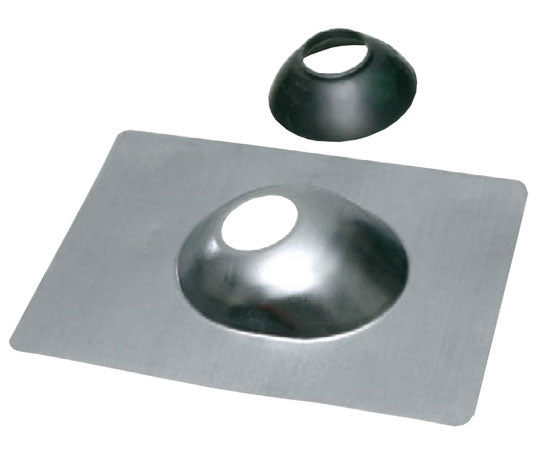

Our Roof Flashing Galvanized Steel is used to secure pipe and compound duct seal on service entrance applications. The neoprene seal is rated for 180™F continuous heat. This roof flashing slides over pipe and is designed for roofs with a pitch of 40 degrees. The galvanized steel is rust-proof to ensure a quality long lasting service life.
Approved for Type B installations, this product is not for hot-mopped or built-up roofs. Do not use petroleum-based products on the collars of this product.
Specifications
Specifications

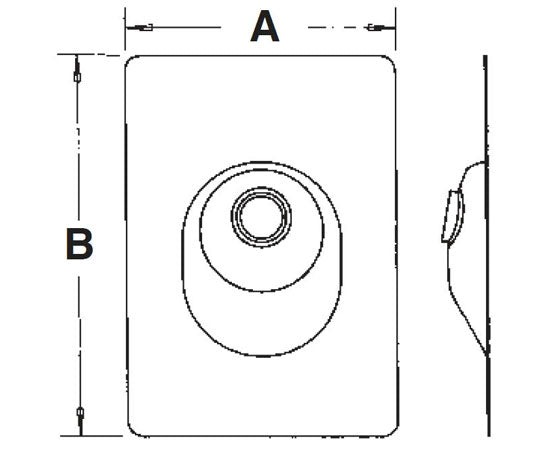

| Part Number | Trade Size | Dim A | Dim B |
|---|---|---|---|
| NPNB-624 | 1-1-/4" to 1-1/2" | 10.750 | 12.500 |
| NPNB-625 | 2" | 10.750 | 14.500 |
| NPNB-626 | 2-1/2" | 10.750 | 14.500 |
UL/CSA NOT APPLICABLE
What’s In The Box
What’s In The Box
| Item | Dim A | Dim B | Dim C |
|---|---|---|---|
| NPNB-624 | 14" | 3.313" | 10.25" |
| NPNB-625 | 16.125" | 3.25" | 12.375" |
| NPNB-626 | 16" | 3.25" | 10.75" |
- Packs of 10 - Roof Flashing Galvanized steel with neoprene seal. 10-3/4" x 14-1/2" x 22 gauge
