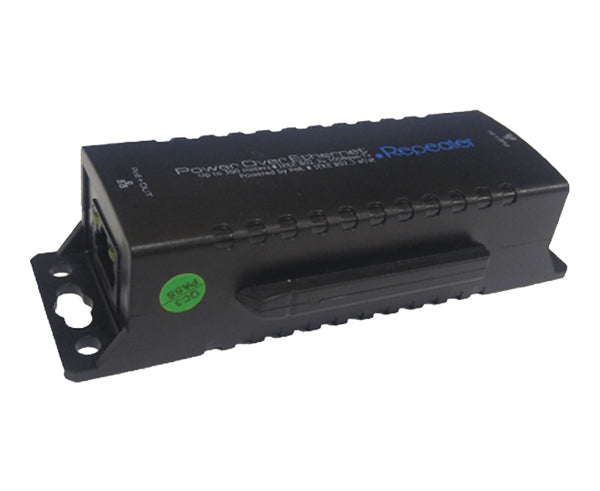

When you need to extend your ethernet service beyond 300ft, this is the perfect solution. Our PoE Repeater allows an ethernet connection and power signal up to 300ft and can cascade up to 1,300 ft. This device offers real-time and zero time delay with no-store & forward technology. It has a built-in splicing slot, a magnet hanger, and a unique, integrated design for wall mounting.
Features
Features
Real-time and zero time delay
PoE (Power over Ethernet)
IP Accessory
PoE IN: 100Mbps PoE In port
Uses Cat5E Cable
Supports IEEE802.3af
PoE OUT: 100Mbps PoE Output port
1300 foot distance (300 ft per unit)
Specifications
Specifications
Power
Power Supply
PoE
Consumption
< 3 Watt
Network Port
Port
PoE IN: 100Mbps PoE In port
Transmission Distance
PoE OUT: 100Mbps PoE Output port
Media
CAT5E
PoE Standard
Supports IEEE802.3af
PoE Power Supply
Media-span and End-span
Ethernet Exchange
Standard
IEEE802.3u 100BASE-TX
Delay
< 20us
LED Indicator
PoE IN port and PoE OUT port: RJ45 Yellow LED: PoE Status Green LED: Ethernet status
Protection
ESD
Lever lll 1a Contact Discharge Lever lll 1b Air Discharge
