24" Network Server Cabinet, 24U/ 42U/ 45U/ 48U Standard Configuration

SKU: NPNB-VC5-6A24-ABV1A
Vendor
Primus Cable
Regular price
$1,085.00
Sale price
$1,085.00
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more
24U
42U
45U
48U
52U
24"W x 42"D / Assembled
24"W x 31.5"D / Assembled
24"W x 42"D / Flat Packed
24"W x 48"D / Assembled
24"W x 48"D / Flat Packed
Black
White

Description

24" Network Server Cabinet, 24U/ 42U/ 45U/ 48U Standard Configuration

The Server Cabinets are designed and built to U.S. industry standards and provide a customizable solution for data center build-outs, network rooms, or IT closets. The feature-rich, robust design can be shipped flat packed or as a custom-configured solution that is fully assembled with accessories pre-installed.

Available as an open frame or complete enclosure in multiple size combinations/colors and 5 available door options, these cabinets offer a variety of options and features to meet your specific needs.

Features

Features

  • Pre-installed recessed casters combine convenient mobility with minimal added height to provide additional stability
  • Brush cable entry slots at front and back of top panel and sliding panels on bottom
  • 3,000 lb. static load capacity
  • Ships fully assembled and can be configured with accessories to match your individual specifications

Security & Protection

  • Locking Doors and side panels prevent unauthorized access to equipment
  • Two pairs of adjustable 19" EIA rails provide a stable mounting structure

Flexibility

  • Vertical cable management channel on each side features T-shaped fingers and various sizeholes/slots for organizing cables
  • Rails and cable channels can be easily repositioned in labeled, 1 cm increments to accommodate various equipment depths
  • Removable and lockable half height side panels
  • Doors hinge on either side and swing open 180° to provide superior access for installation and maintenance of equipment

Multi-Use

  • Available in multiple size combinations to fit in a variety of environments
  • Adaptable for use in data center build outs, computer rooms or data closets

Specifications

Specifications

Product Type

Server Cabinet

Frame Material

Heavy Gauge Cold Rolled Steel

Finish

: Black Or White Powder Coat

Dimensions (H x W x D)

Varies By Size

Rack Unit Quantity

24U*, 42U,45U, 48U or 52U

Standard Configuration Front Door

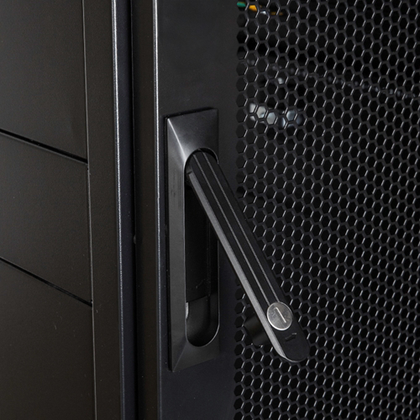

Removable, Reversible & Lockable Mesh, Opens Full 180°, 2 Point Latch, Quick Release Hinges

Standard Configuration Rear Doors

Removable, & Lockable Split Mesh, Opens Full 180°, 2 Point Latch, Quick Release Hinges

Side Panels

(2 Per Side) Half Height, Removable & Lockable

Top Panel

10.5” x 13.5” Removable Vented Panel For Optional Fans, (2) 3.5” x 18” Brush Cable Managers

Bottom Panel

(2) 4” x 15” Sliding / Removable Panels, (2) 10” x 15” Sliding / Removable Panels

Equipment Support

Two Pairs Of 14 Gauge Mounting Rails, 1.75” RU Spacing, Marked & Numbered On Rails; 19” W, EIA-310-D Universal Vertical Hole Spacing

Grounding

14 AWG Ground Wire Connects Doors & Side Panels To Cabinet Frame

Static Loading Capacity

3,000 lbs.

Included Accessories

(4) Adjustable Leveling Feet, (4) Casters, (8) Grounding Kits, (2) Lacing Channels, (2) Keys

Compliance & Standards

ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7

24"W x 31.5"D

42U

45U

24"W x 42"D

24U

42U

45U

48U

52U


24"W x 48"D

24U

42U

45U

48U

52U

What’s In The Box

What’s In The Box

  • Qty 4 - Adjustable Leveling Feet
  • Qty 4 - Casters
  • Qty 8 - Grounding Kit
  • Qty 2 - Lacing Channels
  • Qty 2 - Keys
