Description
Comparable to Cisco's GLC-BX-U and compatible with Cisco switches.
Description

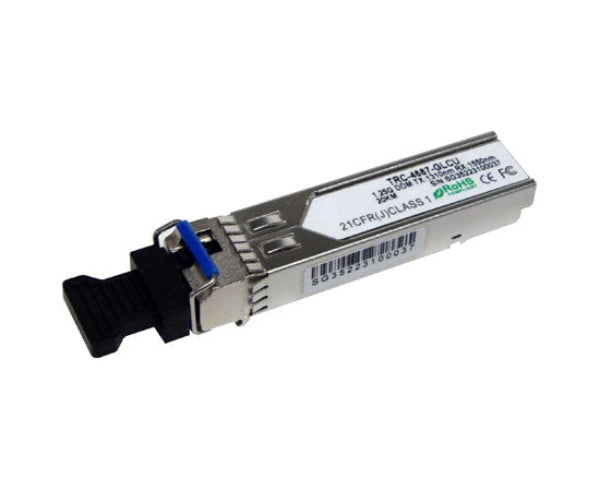

SFP Fiber Transceiver Modules, 1000BASE-BX10-U WDM Bi-Directional, TX1310nm/RX1490nm SMF, up to 10 Kilometers, LC, Cisco Compatible
The industry-standard Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on various media converters and Ethernet switches.
The TRC-4688-GLCD and TRC-4687-GLCU SFPs, compatible with the IEEE 802.3ah TRC-4688-GLCD and TRC-4687-GLCU standards, operate on a single strand of standard SMF.
A TRC-4688-GLCD device is always connected to a TRC-4687-GLCU device with a single strand of standard SMF with an operating transmission range of up to 10 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices: TRC-4688-GLCD transmits a 1490-nm channel and receives a 1310-nm signal, whereas TRC-4687-GLCU transmits at a 1310-nm wavelength and receives a 1490-nm signal. There is a wavelength-division multiplexing (WDM) splitter integrated into the SFP to split the 1310-nm and 1490-nm light paths.
The TRC-4688-GLCD and TRC-4687-GLCU SFPs also support digital optical monitoring (DOM) functions according to the industry-standard SFF-8472 multi-source agreement (MSA). This feature allows the end user to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Specifications
| Mode | Single-mode Fiber (SMF) |
| Data-rate | 1000BASE-BX10-U |
| Form-factor | SFP |
| Connector | LC |
| Wavelength | 1310nm (upstream) |
| Distance (9um) | 10km (6.2miles) |
Cisco Compatibility Chart
Metro Ethernet
- ME-2400-24TS-A
- ME-2400-24TS-D
- ME2600X-44FA-D-K9=
- ME2600X-44FE-D-K9=
- ME2600X-44FA-A-K9=
- ME-3400-24TS-A
- ME-3400-24TS-D
- ME-3400G-12CS-A
- ME-3400G-12CS-D
- ME-3400G-2CS-A
- ME-3400-24FS-A
- ME-3400E-24TS-M
- ME-3400EG-2CS-A
- ME-3400EG-12CS-M
- ME-C3750-24TE-M
- ME-3600X-24FS-M1
- ME-3600X-24CX-M
- ME-3800X-24FS-M2
- ME4600-AMX-48GE
- ME-4924-10GE
- ME-C6524GS-8S
- ME-C6524GT-8S
Catalyst 2900 Series
- WS-C2960-24TC-L
- WS-C2960G-24TC-L
- WS-C2960-48TC-L
- WS-C2960-24PC-L
- WS-C2960-48PST-L
- WS-C2960-8TC-L
- WS-C2960G-8TC-L
- WS-C2960G-48TC-L
- WS-C2960+48PST-L
- WS-C2960+24PC-L
- WS-C2960+24LC-L
- WS-C2960+48TC-L
- WS-C2960+24TC-L
- WS-C2960S-48FPS-L
- WS-C2960S-48LPS-L
- WS-C2960S-24PS-L
- WS-C2960S-48TS-L
- WS-C2960S-24TS-L
- WS-C2960S-48FPD-L
- WS-C2960S-48LPD-L
- WS-C2960S-24PD-L
- WS-C2960S-48TD-L
- WS-C2960S-24TD-L
- 2960S-F48FPS-L
- 2960S-F48LPS-L
- 2960S-F24PS-L
- 2960S-F48TS-L
- 2960S-F24TS-L
- WS-C2960CG-8TC-L
- WS-C2960C-8TC-L
- WS-C2960C-8PC-L
- WS-C2960C-12PC-L
- WS-C2960X-24PSQ-L
- WS-C2960X-24PS-L
- WS-C2960X-24TS-L
- WS-C2960X-48TS-L
- WS-C2960X-48LPS-L
- WS-C2960X-48FPS-L
- WS-C2960X-24TD-L
- WS-C2960X-24PD-L
- WS-C2960X-48TD-L
- WS-C2960X-48LPD-L
- WS-C2960X-48FPD-L
- WS-C2960XR-24TS-I
- WS-C2960XR-48TS-I
- WS-C2960XR-24PS-I
- WS-C2960XR-48LPS-I
- WS-C2960XR-48FPS-I
- WS-C2960XR-24TD-I
- WS-C2960XR-48TD-I
- WS-C2960XR-24PD-I
- WS-C2960XR-48LPD-I
- WS-C2960XR-48FPD-I
Catalyst 3500 Series
- WS-C3560-24PS
- WS-C3560-48PS
- WS-C3560G-24TS
- WS-C3560G-48TS
- WS-C3560G-48PS
- WS-C3560G-24PS
- WS-C3560-48TS
- WS-C3560-24TS
- WS-C3560-8PC
- WS-C3560-12PC-S
- WS-C3560V2-24PS
- WS-C3560V2-24TS
- WS-C3560V2-48PS
- WS-C3560V2-48TS
- WS-C3560E-24TD4
- WS-C3560E-24PD4
- WS-C3560E-48TD4
- WS-C3560E-48PD4
- WS-C3560E-48PDF4
- WS-C3560E-12D4
- WS-C3560E-12SD
- WS-C3560E-12SD4
- WS-C3560X-24T6
- WS-C3560X-48T6
- WS-C3560X-24P6
- WS-C3560X-48P6
- WS-C3560X-48PF6
- WS-C3560CG-8TC-S
- WS-C3560CG-8PC-S
- WS-C3560C-8PC-S
- WS-C3560C-12PC-S
Catalyst 3600 Series
- WS-C3650-24TS
- WS-C3650-48TS
- WS-C3650-24PS
- WS-C3650-48PS
- WS-C3650-48FS
- WS-C3650-24TD
- WS-C3650-48TD
- WS-C3650-24PD
- WS-C3650-48PD
- WS-C3650-48FD
- WS-C3650-48FQ
- WS-C3650-48PQ
- WS-C3650-48TQ
Catalyst 3700 Series
- WS-C3750G-12S
- WS-C3750G-24TS
- WS-C3750G-48TS
- WS-C3750G-24PS
- WS-C3750G-48PS
- WS-C3750-24TS
- WS-C3750-48TS
- WS-C3750-24PS
- WS-C3750-48PS
- WS-C3750-24FS-S
- WS-C3750-24WFS
- WS-C3750V2-24PS3
- WS-C3750V2-24TS3
- WS-C3750V2-48PS3
- WS-C3750V2-48TS3
- WS-C3750V2-24FS3
- WS-C3750E-24TD4
- WS-C3750E-24PD4
- WS-C3750E-48TD4
- WS-C3750E-48PD4
- WS-C3750E-48PDF4
- WS-C3750X-24T5
- WS-C3750X-48T5
- WS-C3750X-24P5
- WS-C3750X-48P5
- WS-C3750X-48PF5
- WS-C3750X-24T6
- WS-C3750X-48T6
- WS-C3750X-24P6
- WS-C3750X-48P6
- WS-C3750X-48PF6
- WS-C3750X-12S7
- WS-C3750X-24S7
- WS-C3750X-12S8
- WS-C3750X-24S8
Catalyst 3800 Series
- C3850-NM-4-1G
- C3850-NM-2-10G
- C3850-NM-4-10G
Industrial Ethernet and Smart Grid
- IE-2000-4TS-G-L
- IE-2000-4TS-G-B
- IE-2000-4T-G-L
- IE-2000-4T-G-B
- IE-2000-8TC-G-L
- IE-2000-8TC-G-B
- IE-2000-8TC-G-E
- IE-2000-8TC-G-N
- IE-2000-16TC-G-L
- IE-2000-16TC-G-E
- IE-2000-16TC-G-X
- IE-2000-16TC-G-N
- IE-2000-16PTC-G-L
- IE-2000-16PTC-G-E
- IE-2000-16PTC-G-NX
- IE 2000U-4TS-G
- IE 2000U-8TC-G
- IE 2000U-16TC-G
- IE 2000U-16TC-G-X
- IE 2000U-16TC-GP
- IE-3000-4TC
- IE-3000-8TC
- IE-3010-24TC
- IE-3010-16S-8PC
- CGS-2520-24TC
- CGS-2520-16S-8PC
Catalyst 4500 Series
- WS-X4013+TS
- WS-X4013+10GE
- WS-X4748-SFP-E
- WS-X4724-SFP-E
- WS-X4712-SFP-E
- WS-X4448-GB-SFP
- WS-X4506-GB-T
- WS-X4516-10GE
- WS-X45-SUP6-E9
- WS-X4606-X29
- WS-X4624-SFP-E
- WS-X45-SUP6L-E9
- WS-X4612-SFP-E
- WS-X4640-CSFP-E
- WS-X4712-SFP+E
- WS-X45-SUP7-E
- WS-X45-SUP7L-E
- WS-X45-SUP8-E
- WS-C4500X-32SFP+
- WS-C4500X-F-32SFP+
- WS-C4500X-40X-ES
- C4KX-NM-8SFP+
- WS-C4500X-16SFP+
- WS-C4500X-F-16SFP+
- WS-C4500X-24X-ES
- WS-C4948
Catalyst 4900 Series
- WS-4928-10GE
- WS-C4948E
- WS-X490810
Catalyst 6500 Series
- WS-SUP720
- WS-SUP720-3B
- WS-SUP720-3BXL
- WS-SUP32-GE-3B
- WS-SUP32-10GE-3B
- WS-SUP32-GE-PISA
- VS-S720-10G-3C
- VS-S720-10G-3CXL
- WS-X6724-SFP
- WS-X6748-SFP
- VS-S2T-10G
- VS-S2T-10G-XL
- WS-X6824-SFP-2T
- WS-X6824-SFP-2TXL
- WS-X6848-SFP-2T
- WS-X6848-SFP-2TXL
- WS-X6904-40G-2T
- WS-X6904-40G-2TXL
Catalyst 6800 Series
- C6800IA-48FPD
- C6800IA-48TD
Data Center and Blade Switching
- N7K-M148GS-11
- N7K-M148GS-11L
- N7K-F248XP-25
- N7K-F248XP-25E
- N77-F348XP-23
Routers
- CISCO892F-K9
- CISCO892FW-K9
- EHWIC-1GE-SFP-CU
- Cisco 2921
- Cisco 2951
- SM-D-ES3G-48-P
- SM-D-ES3-48-P
- SM-D-ES2-48
- Cisco 3925
- Cisco 3945
- Cisco 4451-X
- 7300-NSE-150
- WS-SUP32-GE-3B
- WS-X6724-SFP
- WS-X6748-SFP
- RSP720-3C-GE
- RSP720-3CXL-GE
- RSP720-10GE
- 7600-ES20-GE3CXL
- 7600-ES20-GE3C
- 7600-ES+20G3C
- 7600-ES+20G3CXL
- 7600-ES+40G3C
- 7600-ES+40G3CXL
- 76-ES+T-20G
- 76-ES+T-40G
- 76-ES+XC-20G3C
- 76-ES+XC-20G3CXL
- 76-ES+XC-40G3C
- 76-ES+XC-40G3CXL
- A901-12C-F-D
- A901-12-C-FT-D
- A901-4C-F-D
- A901-4-C-FT-D
- A901-6CZ-F-D
- A901-6-CZ-FT-D
- A901-6CZ-F-A
- A901-6-CZ-FT-A
- A900-IMA8S
- ASR1001
- ASR1002
- ASR1002-F
- ASR1002-X
- A9K-40GE-B
- A9K-40GE-E
- A9K-2T20GE-B
- A9K-2T20GE-E
- A9K-2T20GE-L
- A9K-40GE-L
- A9K-MPA-20X1GE
- A9K-RSP440-TR
- A9K-RSP440-SE
- ASR-9000V-AC
- ASR-9000V-DC-A
- ASR-9000V-DC-E
- MWR-2941-DC
LAN Controllers
- AIR-CT5760-25-K9
- AIR-CT5760-50-K9
- AIR-CT5760-100-K9
- AIR-CT5760-250-K9
- AIR-CT5760-500-K9
- AIR-CT5760-1K-K9
- AIR-CT5760-HA-K9
1 SFP ports
2 Client ports
3 Uplink ports
4 With CVR-X2-SFP (for X2 ports)
5 With C3KX-NM-1G and C3KX-NM-10G (slots 1 and 3) network modules
6 With C3KX-NM-10G (slots 2 and 4) and C3KX-SM-10G network modules
7 Client ports and uplink ports with C3KX-NM-1G and C3KX-NM-10G (slots 1 and 3) network modules
8 Uplink ports with C3KX-NM-10G (slots 2 and 4) and C3KX-SM-10G network modules
9 With CVR-X2-SFP Twin Gig converter
10 With CVR-X2-SFP Twin Gig converter in a WS-C4900M
2 Client ports
3 Uplink ports
4 With CVR-X2-SFP (for X2 ports)
5 With C3KX-NM-1G and C3KX-NM-10G (slots 1 and 3) network modules
6 With C3KX-NM-10G (slots 2 and 4) and C3KX-SM-10G network modules
7 Client ports and uplink ports with C3KX-NM-1G and C3KX-NM-10G (slots 1 and 3) network modules
8 Uplink ports with C3KX-NM-10G (slots 2 and 4) and C3KX-SM-10G network modules
9 With CVR-X2-SFP Twin Gig converter
10 With CVR-X2-SFP Twin Gig converter in a WS-C4900M
