MC Cable Connector with insulated throat for 3/8" Flex - Snap2It TM With Ground

SKU: 40RASTG
Arlington
$3.06
$3.06
$0
Sold out
Quantity must be 1 or more
Open Tang ( Red Tinting )
Standard Tang

Description

Some items may require minimum order quantities which can be changed in your shopping cart.

Description

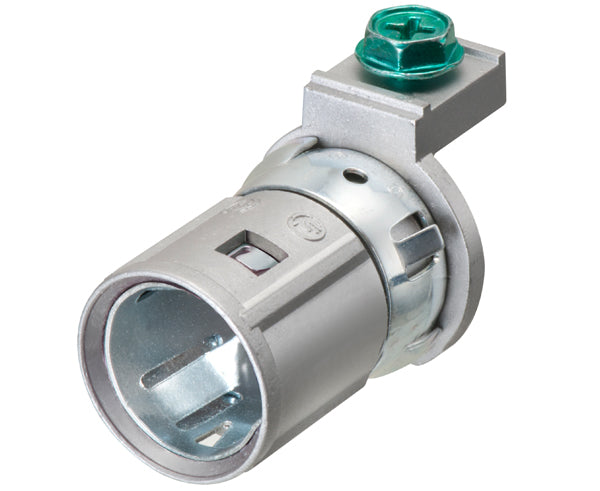

MC Cable Connectors with insulated throat for 3/8" Flex with ground

Arlington's new one-piece retrofit SNAP2IT™ fitting with a ground is easy to use in retrofit or new construction applications. Supporting a wide variety of cables, this fitting is ideal for adding additional circuits to a load center. you also get the same labor-savings in a retrofit installation!

The installation of this product is quick and easy with no tools required, to install in an installed box, pull the cable/conduit through the knockout. slip the fitting onto the cable, then snap the assembly into the box and you are done.


Features

Features

  • Widest total cable ranges - These retrofit SNAP2IT™ connectors accommodate cables from 14/2 to 10/3.
  • Widest variety of cables for AC, MC, HCF, MC continuous corrugated aluminum cable, MCI-A cables (steel and aluminum), AC90, ACG90 and FLEX
  • Super-secure installation - No pull-out!
  • Fully assembled one-piece design with insulated throat
  • Built-in ground

Specifications

Specifications

item Number Cable Types Diameter Range Cable Range
38RASTG MC/HCF/AC Steel & Aluminum 0.405 to 0.605 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
38RASTG MCI-A Steel & Aluminum 0.440 to 0.550 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
38RASTG AC90, ACG90 0.440 to 0.550 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
38RASTG Flexible Metal conduit Steel & Aluminum (RWFMC) 3/8* 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
40RASTG MC/HCF/AC Steel & Aluminum 0.480 to 0.580 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
40RASTG MCI-A Steel & Aluminum 0.480 to 0.580 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
40RASTG AC90, ACG90 0.480 to 0.550 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
40RASTG Flexible Metal Conduit Steel & Aluminum (RWFMC) 3/8* 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3

*CSA Listed With anti-short bushing ONLY

Additional Information

Additional Information

Installation Instructions


What's in the Box?

What's in the Box?

  • Qty 1 - retrofit SNAP2IT™ connectors
