Description
These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description

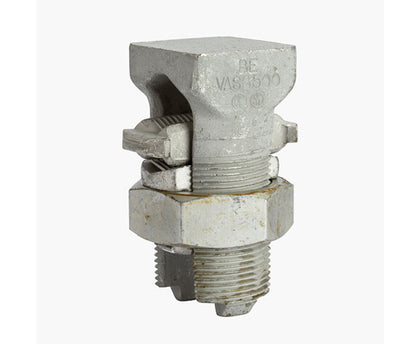

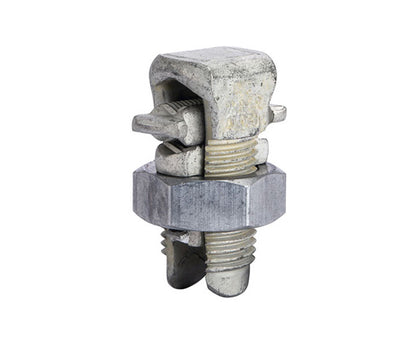

Split Bolt Connectors
Primus Cables’ Dual Rated Split Bolts are made of heavy duty high strength tin plated aluminum.
Features
- Made from tin-plated aluminum.
- UL-486B listed for aluminum and copper conductor combinations (Dual Rated).
Specifications
- UL486A/B Listed Wire Connector.
| Part# | Range of Equal Main and Tap | Wire Diameter Range (in.) | Recommended Torque (in. lbs.) | STD. CTN. QTY. |
| NPNB-APS02 | 8 STR - 2 STR | 0.146 - 0.292 | 275 | 40 |
| NPNB-APS04 | 10 SOL - 4 STR | 0.101 - 0.232 | 165 | 75 |
| NPNB-APS06 | 10 SOL - 6 STR | 0.101 - 0.184 | 165 | 100 |
| NPNB-APS11 | 8 SOL - 1/0 STR | 0.162 - 0.375 | 385 | 20 |
| NPNB-APS21 | 2 SOL - 2/0 STR | 0.257 - 0.418 | 390 | 15 |
| NPNB-APS41 | 6 STR - 4/0 STR | 0.368 - 0.575 | 650 | 6 |
| NPNB-APS350 | 2/0 STR - 350 MCM | 0.414 - 0.681 | 650 | 3 |
| NPNB-APS500 | 3/0 STR - 500 MCM | 0.464 - 0.814 | 825 | 2 |
What's In The Box
- Qty 1 - Split Bolt Connector
