Description

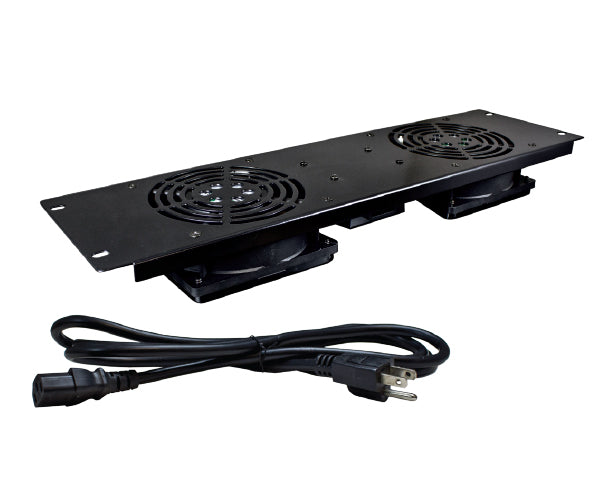

Top Mount Double Fan, 150 CFM
This double fan can be easily installed in the top panel of Primus Cable AV and High Density Wall Mount Cabinets to keep equipment running cool. Designed for flexibility, it can also be mounted inside any enclosure with 19” mounting rails to provide additional front to back airflow.
Features
Features
- Quiet operation – rated at only 80 dbA
- Impressive airflow – up to 150 CFM
- Energy efficient – uses only 0.48A
- Detachable 6ft power cord (100-125VAC 50/60Hz)
Specifications
Specifications
| Product Type | Electric Fan |
| Impeller Material | PBT Reinforced Plastic |
| Terminals | 0.02" |
| Dimensions (HxWxD) | 5.2" x 19" x 1.8" |
| Motor | Shaded Pole Induction Motor |
| Bearing System | Sleeve |
| Cord Length | 6 ft (Detachable) |
| Operating Temperature | -10°C ~ 70°C |
| Voltage | 100 ~ 125 VAC |
| Frequency | 50 / 60 Hz |
| Current | 0.48 Amps |
| Power | 10 / 9 Watts |
| Speed | 2100 / 2400 RPM |
| Noise | 80 dBA |
| Airflow | 150 CFM |
| Static Pressure | 3.1 / 4.1 (mmH²0) |
| Weight | 4 lbs |
| Quantity Per Package | 1 |
What's in the Box?
What's in the Box?
- Qty 1 - Top Mount Double Fan, 150 CFM
